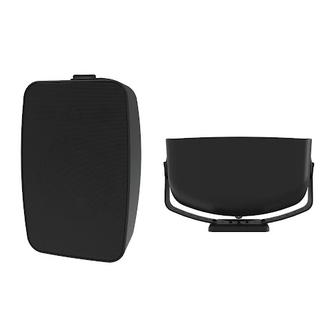

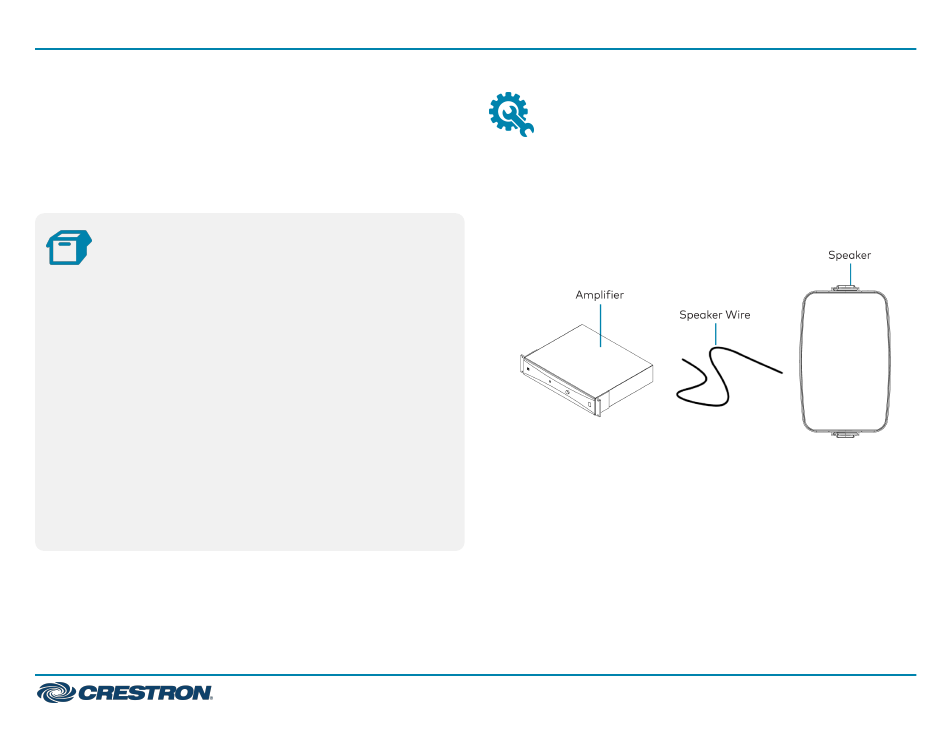

Quick Start SAROS SMT6T-AW and SMT8T-AW Series Saros® 2-Way All Weather Surface Mount Indoor/Outdoor Speakers Saros® speakers by Crestron deliver professional grade performance and flexible installation for demanding commercial or residential Installation applications. The SAROS SMT6T-AW and SAROS SMT8T-AW series speakers support both surface and pole mounting. The speakers have a...
Page 2
Quick Start SAROS SMT6T-AW and SMT8T-AW Series Saros® 2-Way All Weather Surface Mount Indoor/Outdoor Speakers 2. Attach the mounting bracket to the mounting surface using either 3. Pull the speaker wire through the indicated wire feed hole on the the four included wall anchors and anchor screws or the four included mounting bracket.
Page 3
Quick Start SAROS SMT6T-AW and SMT8T-AW Series Saros® 2-Way All Weather Surface Mount Indoor/Outdoor Speakers Attach the Speaker to the Mounting Kit 4. Select the desired pitch to attach the yoke bracket to the mounting bracket. Then, push the yoke bracket onto the three rubber nubs on the mounting bracket.
Page 4
Quick Start SAROS SMT6T-AW and SMT8T-AW Series Saros® 2-Way All Weather Surface Mount Indoor/Outdoor Speakers 3. Attach the speaker to the yoke bracket and adjust the horizontal 4. Connect the wire from the amplifier to the phoenix connector on the angle: front speaker baffle: a.
Page 5
Quick Start SAROS SMT6T-AW and SMT8T-AW Series Saros® 2-Way All Weather Surface Mount Indoor/Outdoor Speakers b. Connect the wires from the amplifier (or the previous speaker) to d. If wiring for a 70V/100V distributed run, set the proper wattage the IN terminals of the supplied terminal block; connect positive to for each speaker on the Transformer Tap selector on the front of + and negative to –.
Page 6
SAROS SMT6T-AW-B-T-EACH c. Insert and press the grille into the channel of the speaker enclosure. www.crestron.com/model/6511862 SAROS SMT6T-AW-W-T-EACH www.crestron.com/model/6511863 SAROS SMT8T-AW-B-T-EACH 6. Fasten the grille to the top and bottom of the speaker housing using the two security screws removed during step 5a.
