Crestron Ultimate IWLCR62-W-T-EACH Quick Start

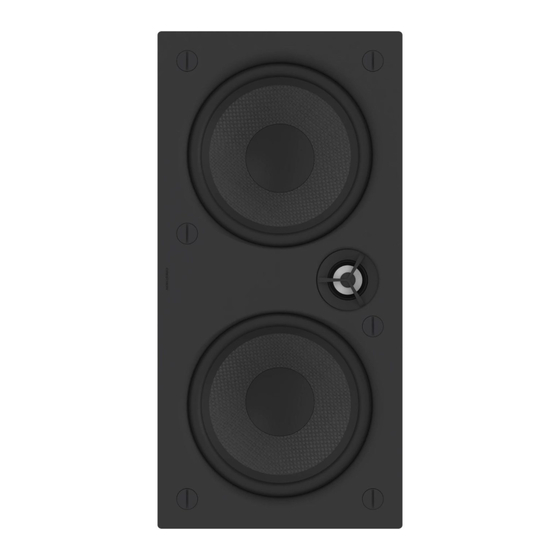

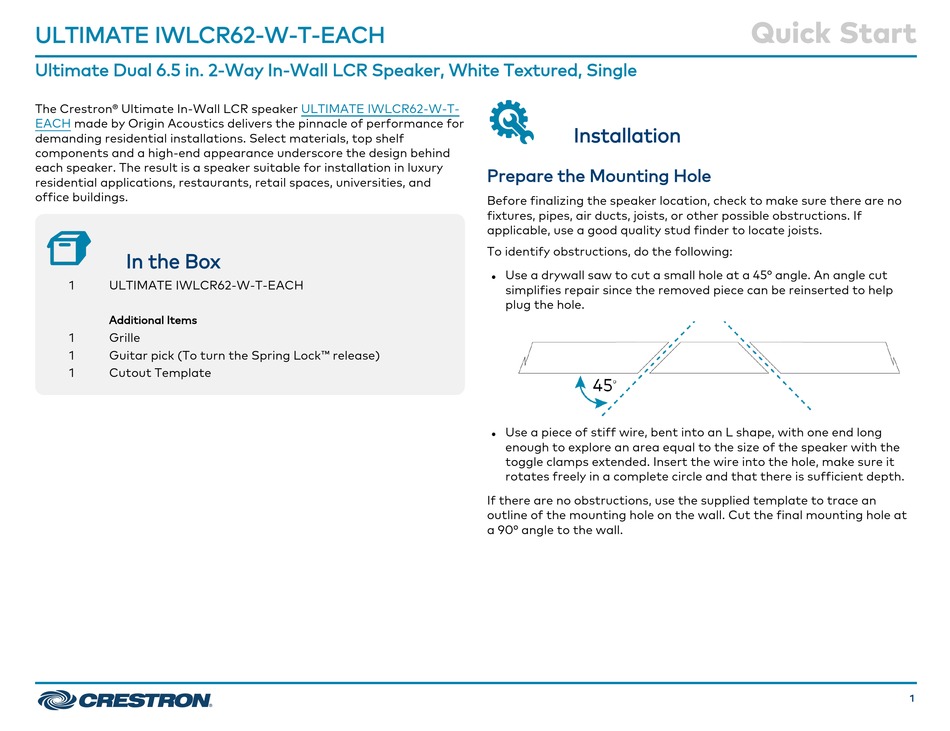

ULTIMATE IWLCR62-W-T-EACH
Ultimate Dual 6.5 in. 2-Way In-Wall LCR Speaker, White Textured, Single
The Crestron® Ultimate In-Wall LCR speaker
EACH made by Origin Acoustics delivers the pinnacle of performance for
demanding residential installations. Select materials, top shelf
components and a high-end appearance underscore the design behind
each speaker. The result is a speaker suitable for installation in luxury
residential applications, restaurants, retail spaces, universities, and
office buildings.
In the Box
1 ULTIMATE IWLCR62-W-T-EACH
Additional Items
1 Grille
1 Guitar pick (To turn the Spring Lock™ release)
1 Cutout Template
ULTIMATE IWLCR62-W-T-
Installation
Prepare the Mounting Hole
Before finalizing the speaker location, check to make sure there are no
fixtures, pipes, air ducts, joists, or other possible obstructions. If
applicable, use a good quality stud finder to locate joists.
To identify obstructions, do the following:
Use a drywall saw to cut a small hole at a 45° angle. An angle cut
l
simplifies repair since the removed piece can be reinserted to help
plug the hole.
Use a piece of stiff wire, bent into an L shape, with one end long
l
enough to explore an area equal to the size of the speaker with the
toggle clamps extended. Insert the wire into the hole, make sure it
rotates freely in a complete circle and that there is sufficient depth.
If there are no obstructions, use the supplied template to trace an
outline of the mounting hole on the wall. Cut the final mounting hole at
a 90° angle to the wall.
