REFERENCE OD4.1-4-S10-BRZ-T KIT

Reference 4.1 Landscape Solution, Bronze Textured, Four 4 in. Satellites, One 10 in. Subwoofer

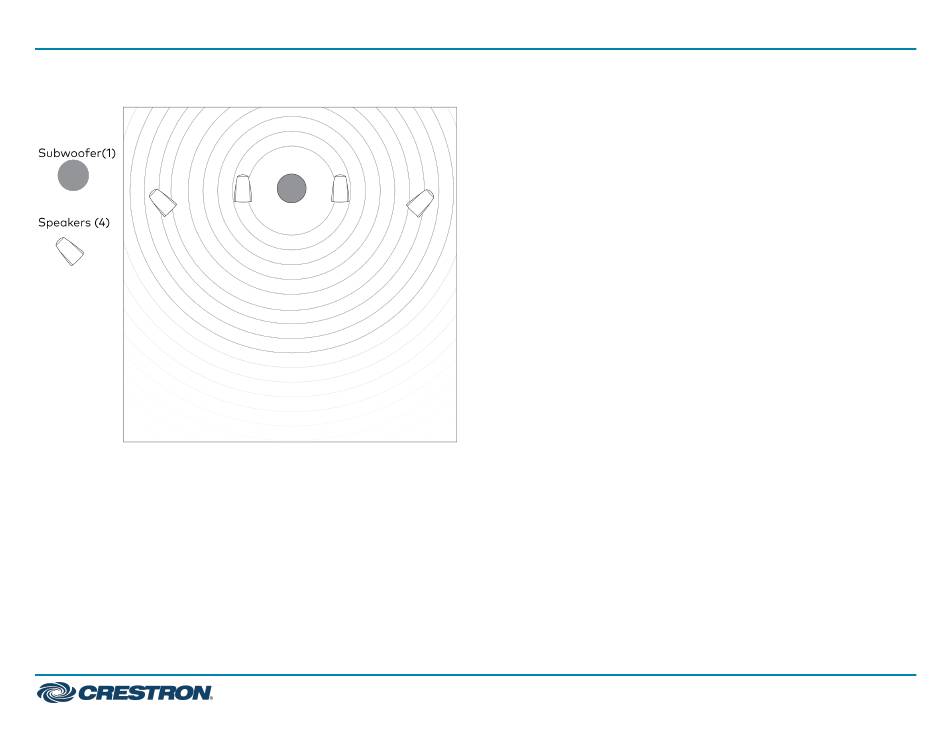

Figure A

Install the Speaker and Subwoofer

Speaker Installation

1. Place the four satellite speakers in their approximate final locations.

2. Dig a 4 to 5 in. (102-127 mm) deep trench to run the speaker cables

(not included) that will run from the amplifier to each speaker's

hardwired direct-burial cable (included). Make sure trenching is done

as per local codes.

3. Run the speaker cable through the trench from the amplifier to the

first speaker location.
