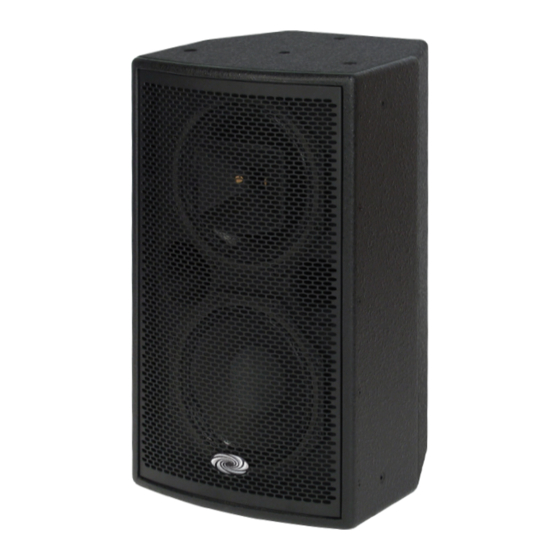

Crestron VECTOR CD896 Installation Manual

VECTOR™ Performance Loudspeakers
Installation Guide

Description

The Crestron Vector™ performance loudspeakers are designed for use in public and
®
commercial spaces. These loudspeakers range in size from a compact 6.5" full range
product that services small conference room environments to large systems with 15"
coaxial speakers and 18" subwoofers for use in auditoriums, lecture halls, and
conference centers.

Additional Resources

Visit the product page on the Crestron website (www.crestron.com)
for additional information and the latest rmware updates. Use a QR
reader application on your mobile device to scan the QR image.

Installation

Vector loudspeakers are constructed with threaded inserts that are used to permanently
mount the speaker. There are two options for mounting a speaker: use Vector EB eye
bolts for multipoint horizontal or vertical suspension with wire rope, or use a Vector YB
yoke bracket for rigid horizontal attachment. Vector EB eye bolts and Vector YB yoke
brackets are sold separately. See the table below for a list of compatible accessories.
WARNING: The installer is responsible for providing a properly engineered solution for
suspending or mounting a speaker. The installer is responsible for obtaining rigging
designs and drawings from a professional engineer, obtaining required permits, and
receiving inspections and nal approvals from the authority having jurisdiction of the
installation site.
SPEAKER MODEL
EYE
BOLT
VECTOR CD896 EB6
VECTOR CD896-RH EB6
VECTOR CD1265 EB10
VECTOR CD1265-RH EB10
VECTOR CD1295 EB10
VECTOR CD1295-RH EB10
VECTOR CD1565 EB10
VECTOR CD1565-RH EB10
VECTOR CD1595 EB10
VECTOR CD1595-RH EB10
VECTOR CS1265 EB10
VECTOR CS1265-RH EB10
VECTOR CS1295 EB10
VECTOR CS1295-RH EB10
VECTOR CS1565 EB10
VECTOR CS1565-RH EB10
VECTOR CS1595 EB10
VECTOR CS1595-RH EB10
VECTOR CS699 EB6
VECTOR SUBD18 EB10
VECTOR SUBS15 EB10
VECTOR SUBS18 EB10
NOTE: Speaker models with the "RH" suf x are supplied with a rotated horn. The
horn's wide angle is parallel to the wide dimension of the enclosure.

Eye Bolts

Each speaker has threaded inserts located on the top, bottom, sides and rear that are for
use with Vector EB eye bolts. The speaker's threaded inserts support the weight of the
speaker enclosure and cannot be used to support any additional weight. No additional
load-bearing capability is either certi ed or recommended. M6 threads are used on the
Vector CS699 and CD896(-RH) speakers. M10 threads are used on the Vector
CD1265(-RH), CD1295(-RH), CD1565(-RH), CS1265(-RH), CS1295(-RH), CS1565(-RH),
CS1595(-RH), SUBD18, SUBS15, and SUBS18.
COMPATIBLE ACCESSORY
YOKE CONNECTOR
YOKE8D CONN2 or CONN4
YOKE8D CONN2 or CONN4
YOKE12D CONN4
YOKE12D CONN4
YOKE12D CONN4
YOKE12D CONN4
N/A CONN4
N/A CONN4
N/A CONN4
N/A CONN4
YOKE12 CONN2 or CONN4
YOKE12 CONN2 or CONN4
YOKE12 CONN2 or CONN4
YOKE12 CONN2 or CONN4
YOKE15 CONN2 or CONN4
YOKE15 CONN2 or CONN4
YOKE15 CONN2 or CONN4
YOKE15 CONN2 or CONN4
YOKE6 CONN2 or CONN4
N/A CONN4
N/A CONN2 or CONN4
N/A CONN2 or CONN4
Use an appropriate hex key to remove the thread cover(s) and install the appropriate eye
bolts for suspending and aiming the speaker.
CAUTION: Do not remove any of the Phillips screws from the speaker enclosure.

Yoke Brackets

Yoke brackets are used for rigid horizontal attachment to a mounting surface. Yoke
brackets are available for the Vector CD896(-RH), CD1265(-RH), CD1295(-RH), CS699,
CS1265(-RH), CS1295(-RH), CS1565(-RH), and CS1595(-RH) speakers. For details, refer
to the VECTOR YOKE6/YOKE8D/YOKE12/YOKE12D/YOKE15 Installation Guide
(Doc. 8210) at www.crestron.com/manuals.

Hardware Hookup

Each Vector speaker has a set of Neutrik® speakON® input and pass-through
connections on the rear panel. Refer to the following diagrams when wiring the Vector
CONN2 and CONN4 connectors.
Wiring for CS699, CS12XX(-RH),
and CS15XX(-RH)
1 ±
NL4
2 ±
DSP
AMP
1 ±
NL4
2 ±
Wiring for CD896(-RH)
1 ±
NL4
2 ±
DSP
AMP
1 ±
NL4
2 ±
Wiring for CD12XX(-RH) and
CD15XX(-RH)
1 ±
NL4
LF AMP 2 ±
DSP
1 ±
NL4
HF/LF
AMP 2 ±
Wiring for SUBD18
1 ±
NL4
LF
AMP
2 ±
DSP
LF
1 ±
AMP
NL4
2 ±
HF
XOVER
LF
HF
LF
XOVER
LF
HF
XOVER
LF
LF
LF 1
LF 2
