UG-1828
Rx and Tx Overview
The "Rx Overview" (Figure 293) and "Tx Overview" (Figure 294) tabs aim to provide more detail on ADRV9001 selected mode of
operation using "Device Configuration" tab (Figure 279). The Rx and Tx datapath overview diagrams are provided in each tab. These tabs
provide user with read back of ADC/DAC sampling frequencies, analog filtering configuration, datapath sampling rate, data port format,
mode of operation and sampling rate.

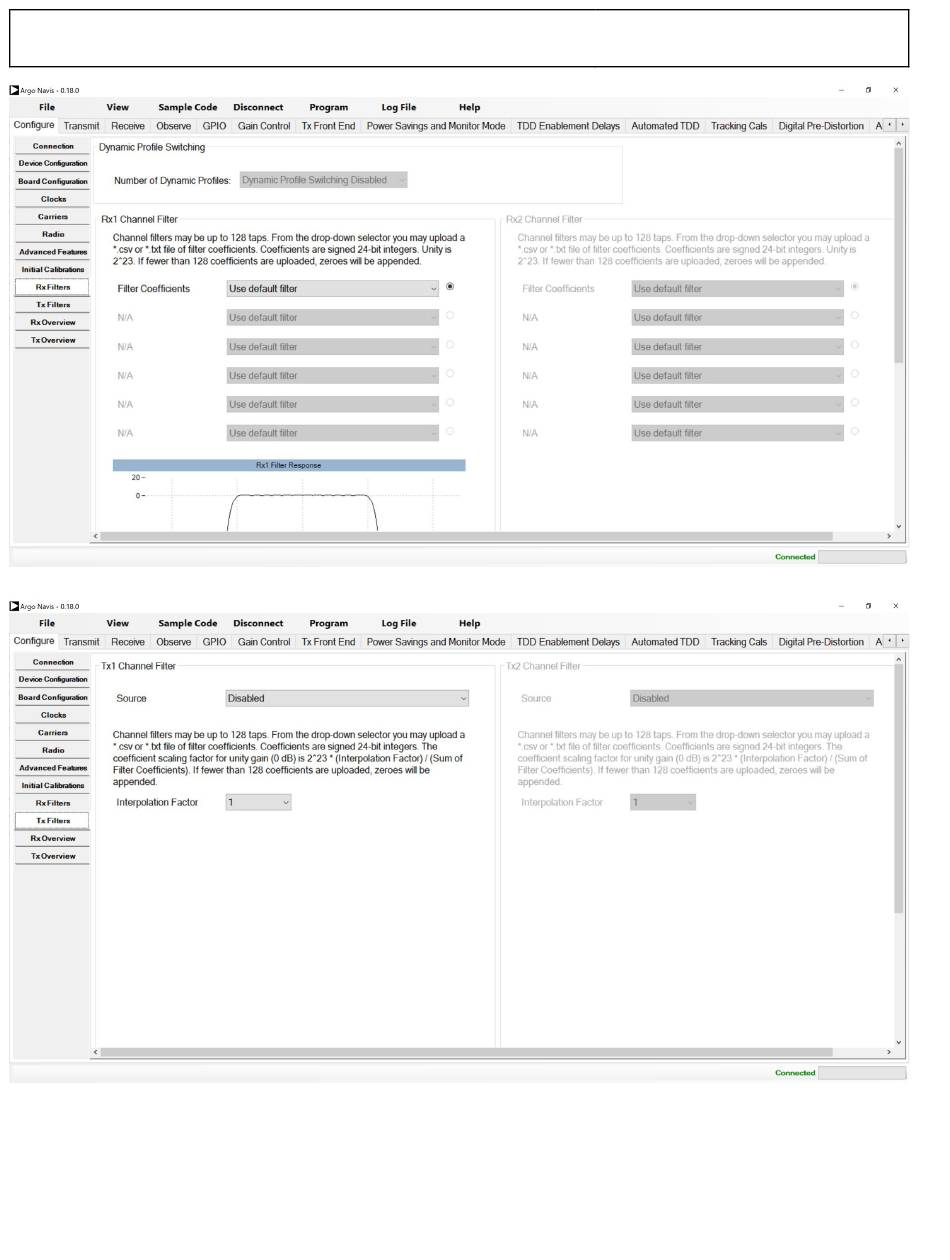

Figure 291. Rx Filters
Figure 292. Tx Filters
