Preliminary Technical Data
Figure 100, shows a Tx/Rx frequency hopping using LO muxing. LO muxing is one of the FH modes which will be discussed in later
sections. In this diagram we observe Tx/Rx setup signals and sampled at HOP edges, and then indicate the next frame will be Tx or Rx
frame respectively.
It is worth noting that in LO muxing mode, the information of which channel the frame needs to be at frame n (Tx or Rx), needs to be
given at (n-2) frame time.
User Settings
Rx Setup
Tx Setup
Rx
F1
HOP

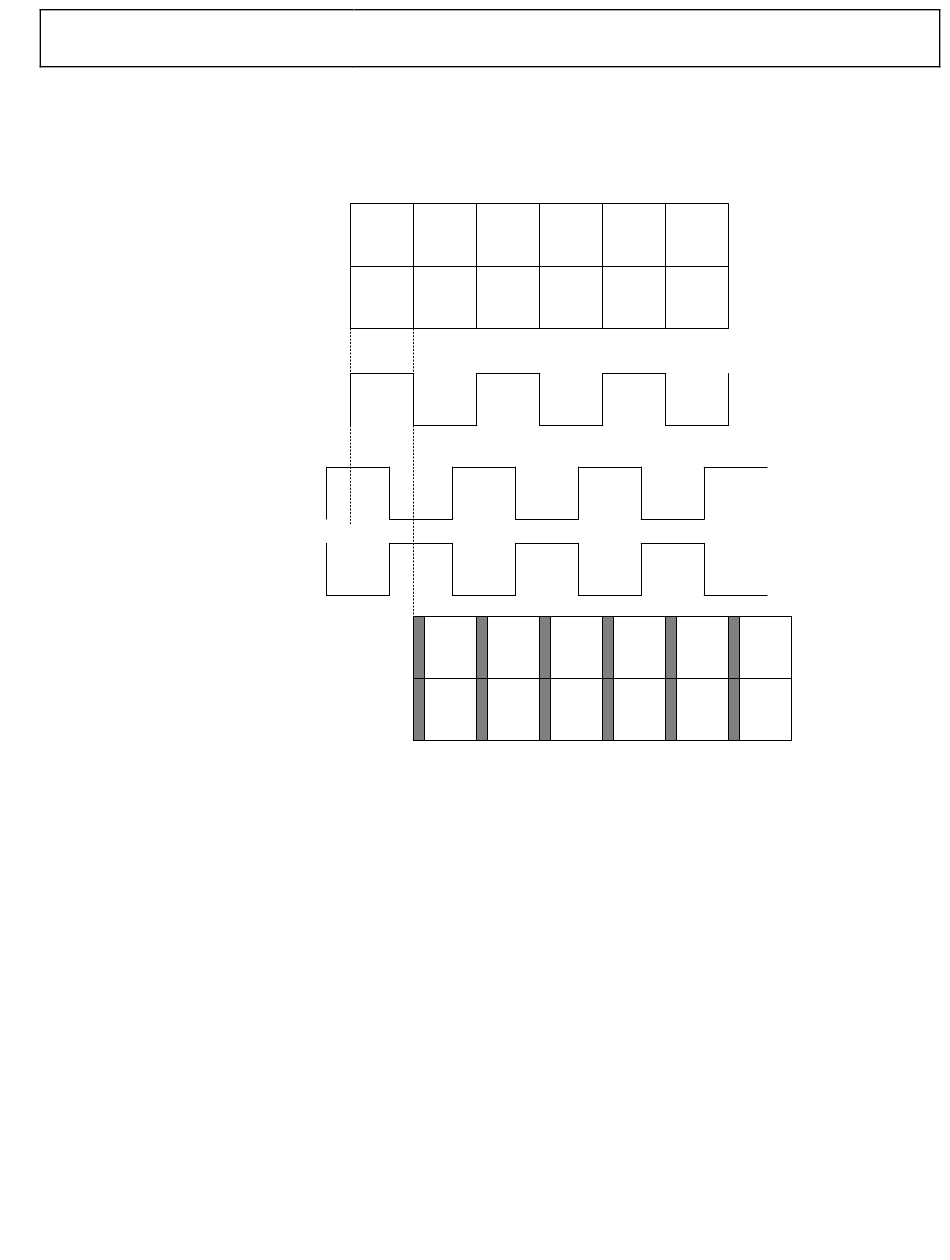

Figure 100 Tx-Rx Frequency Hopping Using LO Muxing
Tx Rx Tx
F2 F3 F4
Rx Tx Rx
F1 F2 F3
Rev. PrC | Page 103 of 338
Rx Tx
F5 F6
Tx Rx Tx
F4 F5 F6
UG-1828
