UG-1828 Preliminary Technical Data

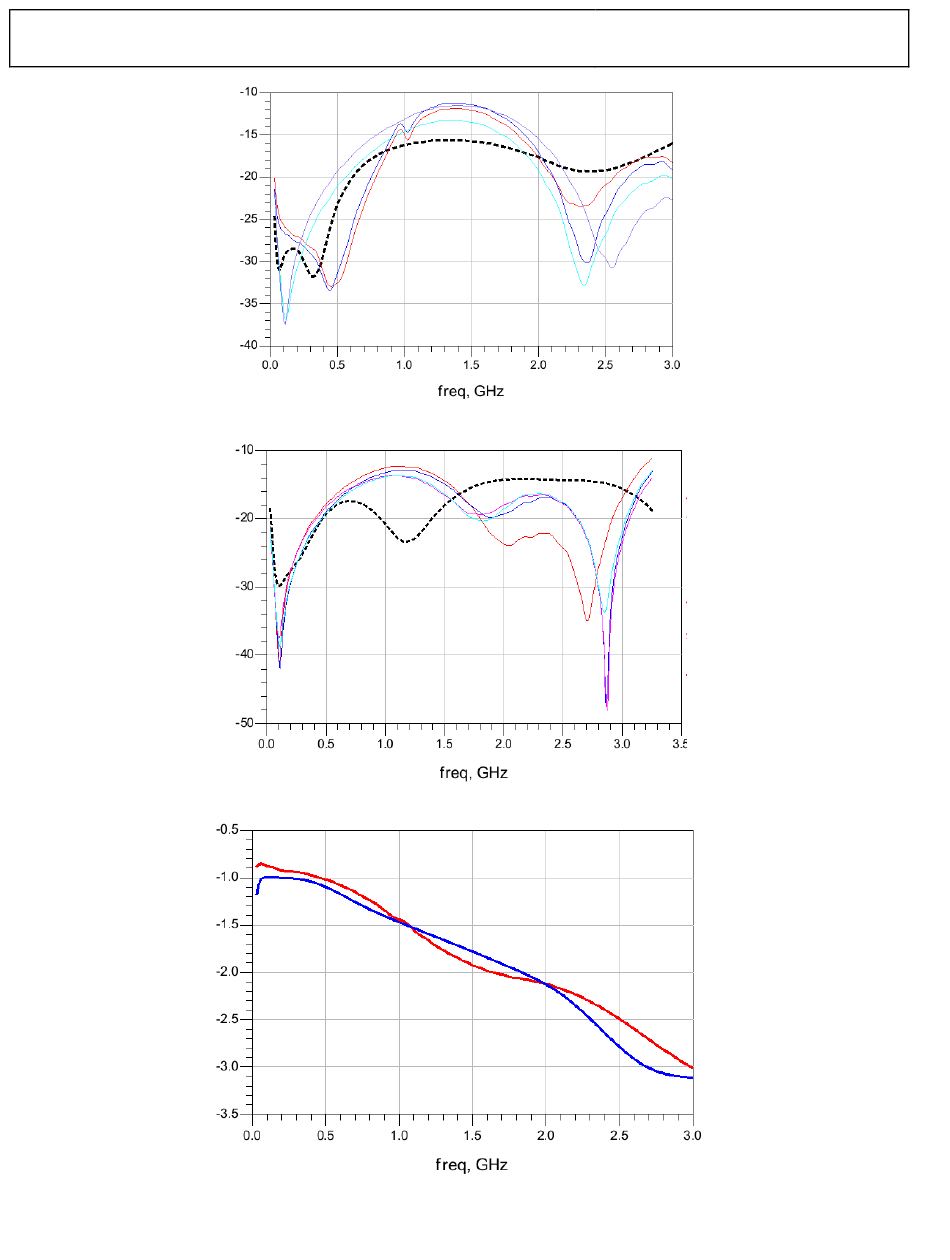

Figure 226. Return Loss of RX1(2)A Port
Figure 227. Return Loss of RX1(2)B Port
Figure 228. Insertion Loss – Simulated RX1(2)A Port – Red Curve RX1(2)B Port – Blue Curve
