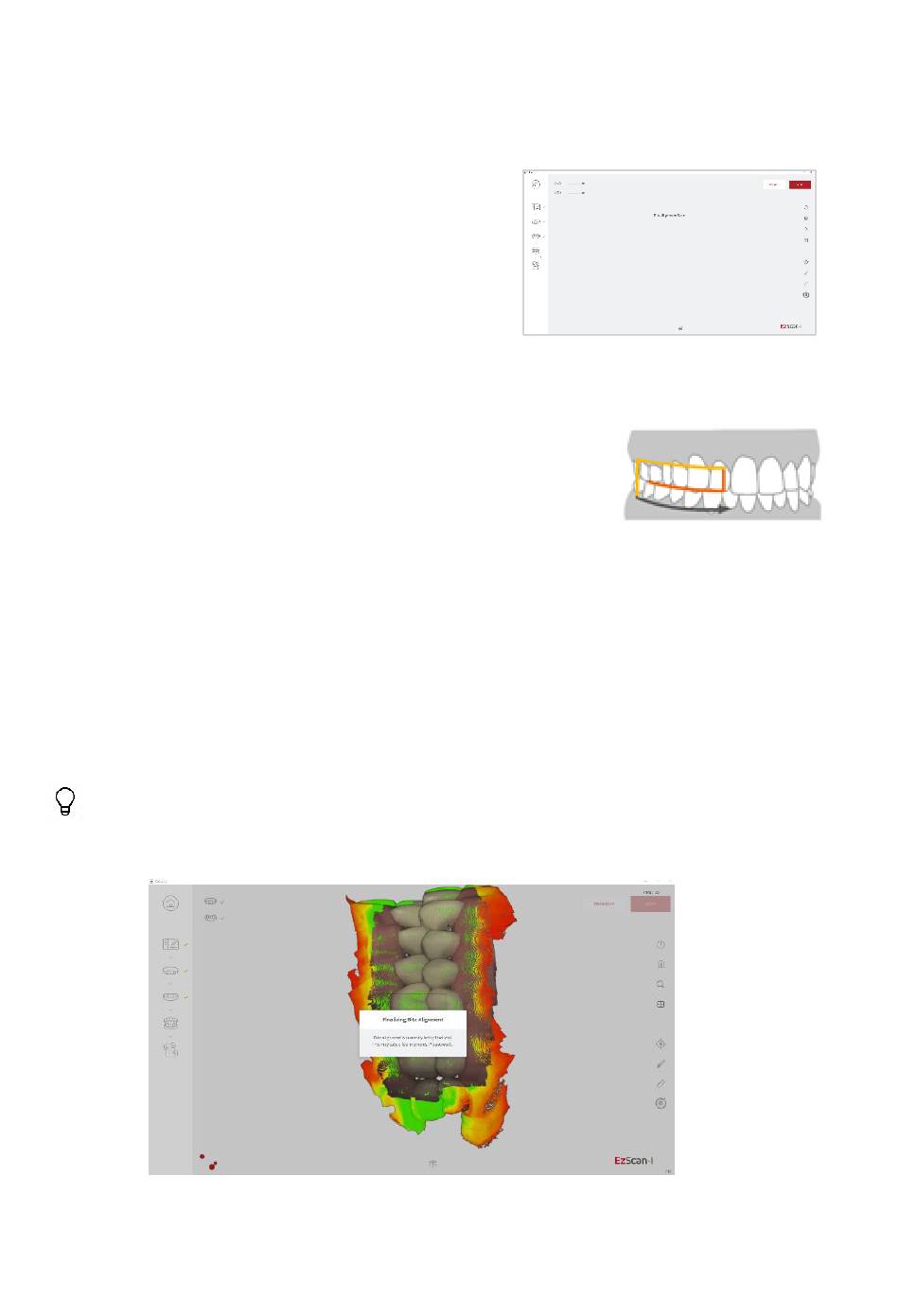

6.4.5 Carrying Out A Bite Alignment

The EzScan enables you to carry out Automatic Bite Alignment based on the
previously scanned Maxillary and Mandibular arches.
Note: When you select Bite Alignment, allow a
few seconds for the arch scans to load.
1. Carrying Out An Automatic Bite
Alignment
Scan Molar/Pre-Molar Segments
For the EzScan-i to automatically recognize the
Mandibular and Maxillary arches:
•
Scan a 3-4 teeth and 3-4mm gum segment on
BOTH the LEFT side and on the Right side of
the molar/pre-molar region in Occlusion.
i.
ii.
Note: In the event of a quadrant scan, you will be asked to scan only the side of the
quadrant. When doing full arch scans, you will be prompted to scan bilateral.
For a better scanning experience, it is recommended to first position the
scanner in the fully open patient mouth and then ask the patient to
perform a bite.
Once the scanned bite segment is locked, the initial scan is overlayed and a green
checkmark displays indicating you are finished scanning that arch.
Page 38
In the first pass scan the central molars capturing both mandibular
and maxillary teeth.
Then scan only the Maxillary molars and gingiva.
