To FRX4000
Physical DCE
(Female Connector)
Pin
1
2
3
4
5
6
8
9
10
11
12
13

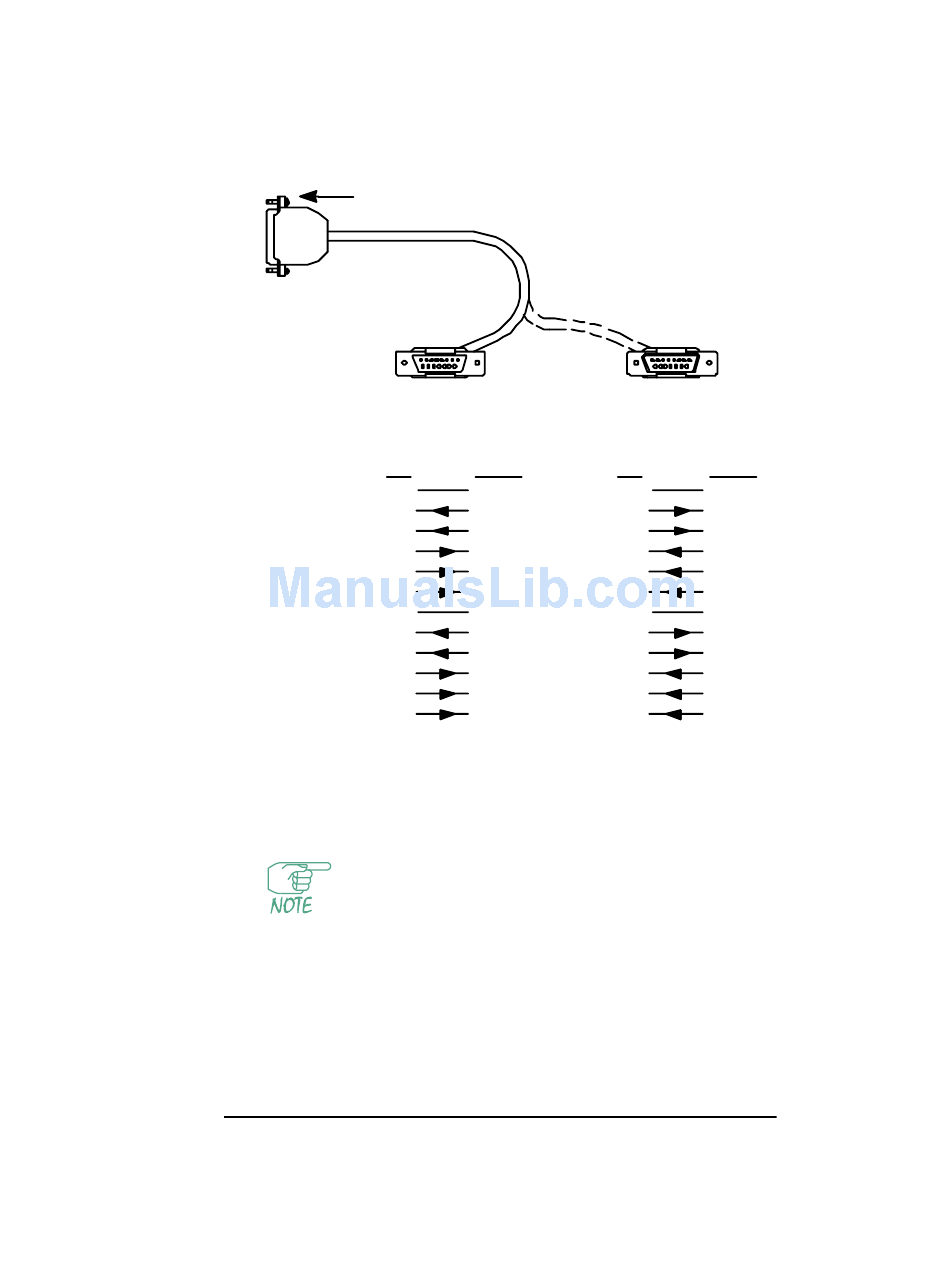

Figure A-9 X.21 Cables for Ports 4–7
These cables provide X.21 interfaces for an RS-422
Expansion Card.
Configuration Drawings
Cabletron Part Numbers:
DCE FRX-X21DCE-CAB
DTE
8
1
15
9
Signal
FGnd
TDa
Ca
RDa
Ia
CLKa
SGnd
TDb
Cb
RDb
Ib
CLKb
FRX-X21DTE-CAB
1
8
9
15
Physical DTE
(Male Connector)
Pin
Signal
1
FGnd
2
TDa
3
Ca
4
RDa
5
Ia
6
CLKa
8
SGnd
9
TDb
10
Cb
11
RDb
12
Ib
13
CLKb
A-9
