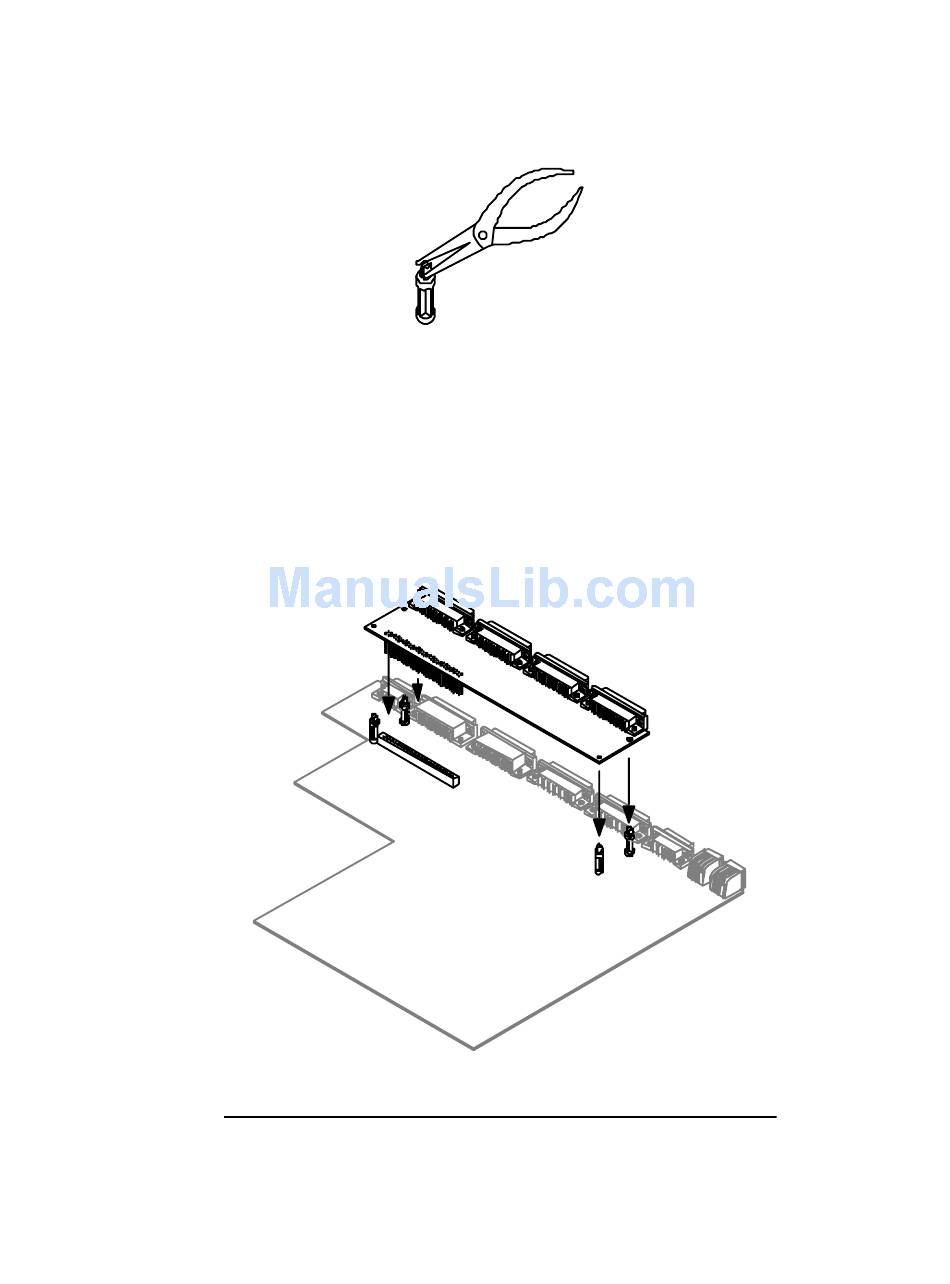

Figure 3-9 Connector Card Mounting Post
9. Pull the card out of the motherboard connector.
10. Install the new connector card by pushing it gently but securely
into the motherboard connector shown in the following figure.
Snap each corner onto its mounting post, and make sure the con-
nector is fully inserted into the motherboard.
Figure 3-10 Installing a Connector Card
Testing & Replacing Components
3-9
