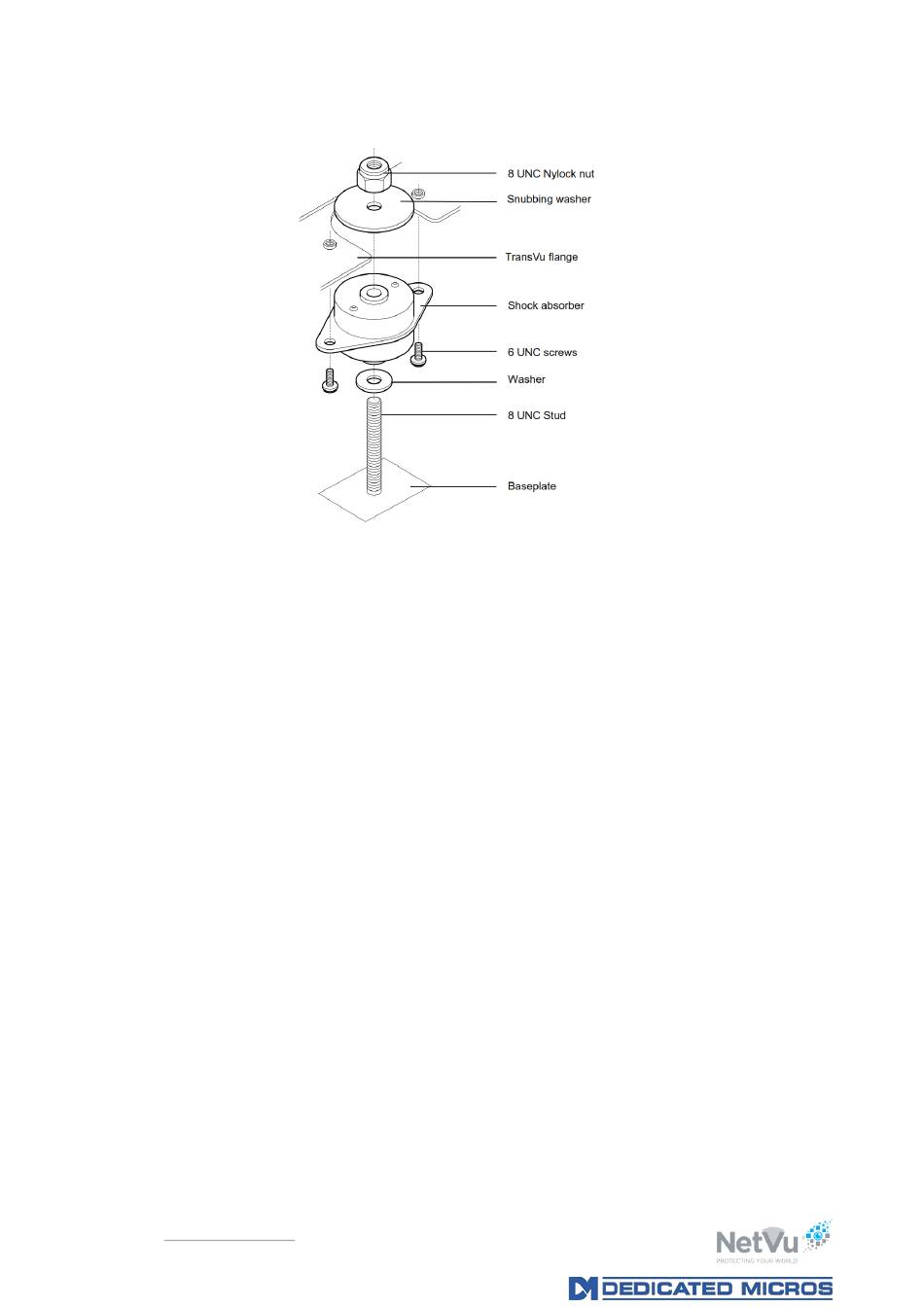

Vibration will cause the TransVu 3 to move on the shock mounts. Allow clearance around the unit
to accommodate this movement. It is recommended that a minimum fitment volume of 330mm
(13 ") x 300mm (12 ") x 130mm (5 ") is allowed.
Total height of enclosure for TransVu 3 is 130 mm (3½ ")
Mounting the Baseplate
The TransVu 3 baseplate should be secured to the vehicle using appropriate nuts, bolts and shake-
proof washers. The baseplate should preferably be mounted horizontally although it can be
mounted vertically if absolutely necessary.
The unit does not require alignment with the normal direction of travel of the vehicle.
Care in Feeding Cables
Ensure the cables feeding the connectors are clamped to the same mounting surface as the
TransVu 3. This will help avoid any vibration being transmitted along them to the unit.
Recommended fitment area - 330mm (13") x 300mm (12")
Minimum height of enclosure - 130mm (5")
Additional space should be allowed around the electrical connectors to allow the disconnection of
the cables from the unit.
