Title TransVu 3 DVR Installation Manual
1 COM 2 RS-232 RX DATA
2 COM 2 RS-232 TX DATA
3 IO GROUND
4 COM 1 RS-232 RX DATA
5 COM 1 RS-232 TX DATA
6 NOT CONNECTED
7 NOT CONNECTED
8 IO GROUND

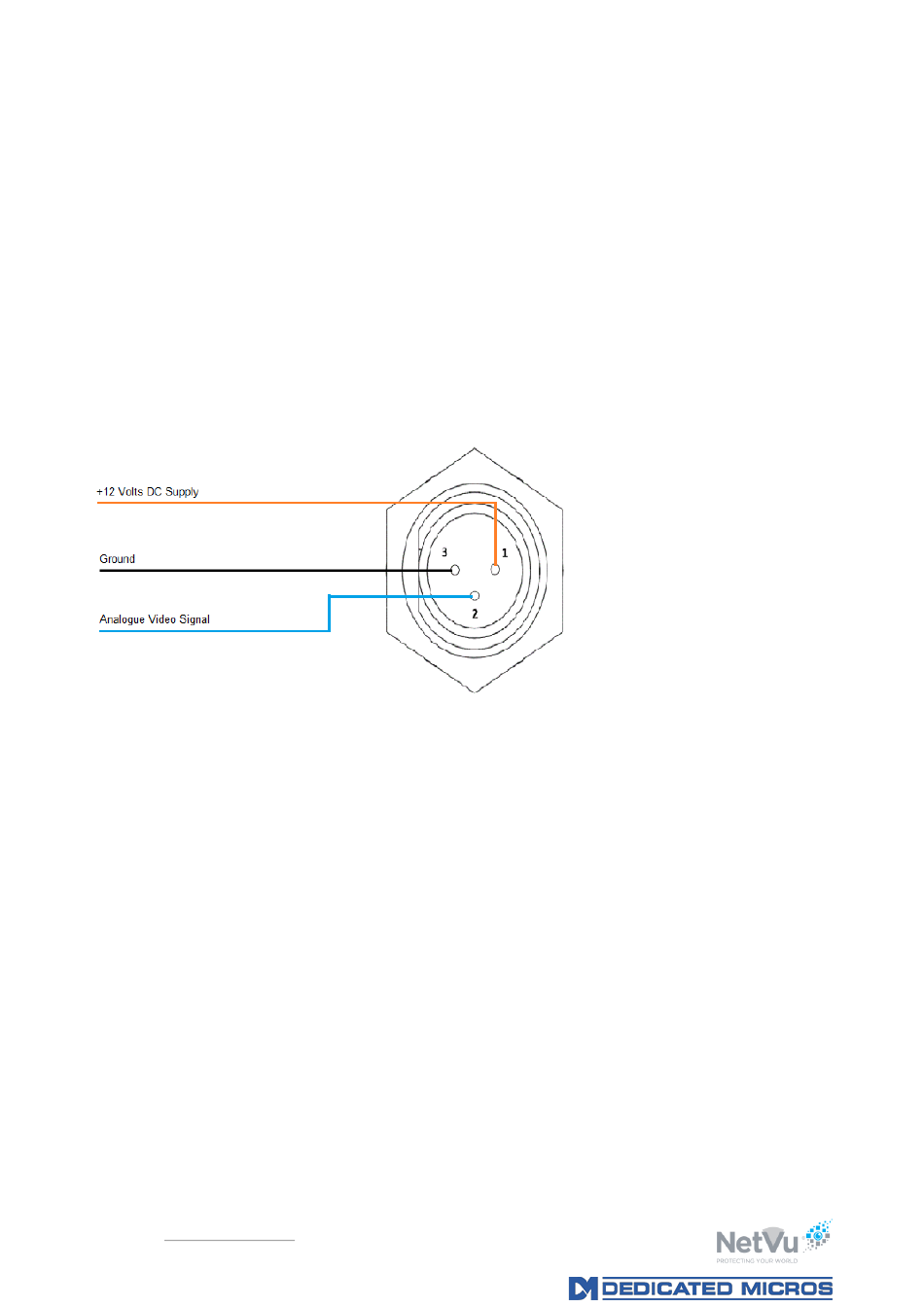

Connecting Analogue Cameras

Signal type:
Signal level:
Signal termination:
Recommended cable:

Connecting IP Cameras and Networks

Signal type:
Recommended cable:
IP cameras may be connected to an Ethernet Network switch. The network switch may in turn be
connected to any of the three network ports provided on the TransVu 3. Commercially
manufactured network patch cables, with either RJ45 connectors may be used for this connection.
If an RJ45 connector is being made off on to Ethernet cable then the following wiring should be
used:
NetVu Ltd. www.netvu.org.uk
No 1 Thellow Heath Park, Northwich Road, Northwich, Cheshire. CW9 6JB
9 RS-485 A
10 RS-485 B
11 CANBUS HI
12 CANBUS LO
13 IO GROUND
14 NOT CONNECTED
15 NOT CONNECTED
Unbalanced, ground common to chassis
1 volt peak to peak
75 ohms, fixed
Coaxial, 75 ohm impedance, 90% copper braid, copper multicore
central conductor.
Ethernet
Category 5 or better.
