Title TransVu 3 DVR Installation Manual
12 Off analogue camera connections
Net 2: 10/100Mb/s Ethernet port
10-Way power connector
37-Way multi-purpose connector
15-Way com-port expansion connector

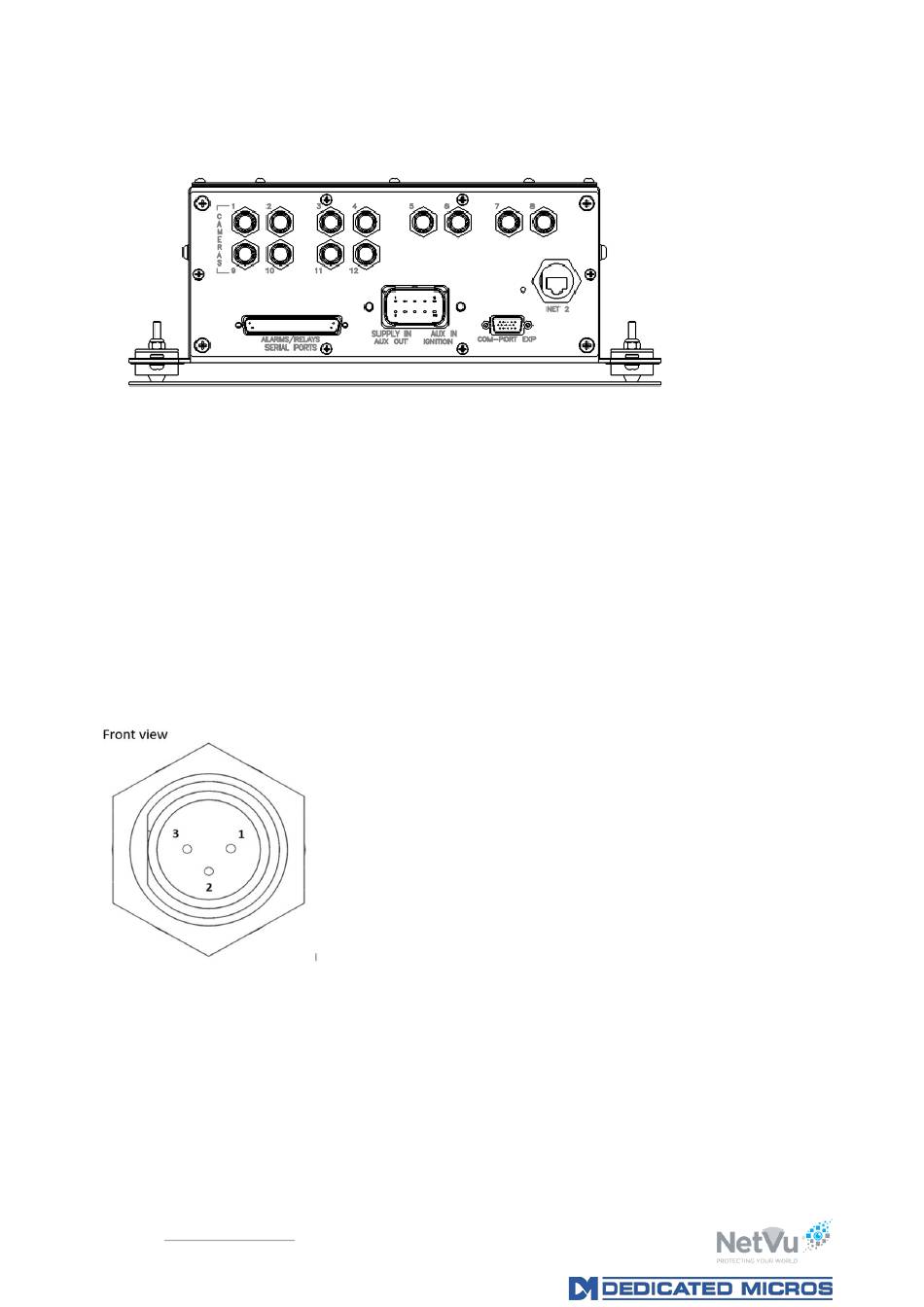

Analogue Camera Connector Layout
The layout of each Analogue Camera Connector is as follows:
Pin 1: +12V Power output
Pin 2: Video feed
Pin 3: Ground
