Ignition Sense Input; Alarm Inputs - NetVu TransVu 3 Installation Manual

Title TransVu 3 DVR Installation Manual
Impedance:
Recommended cable:

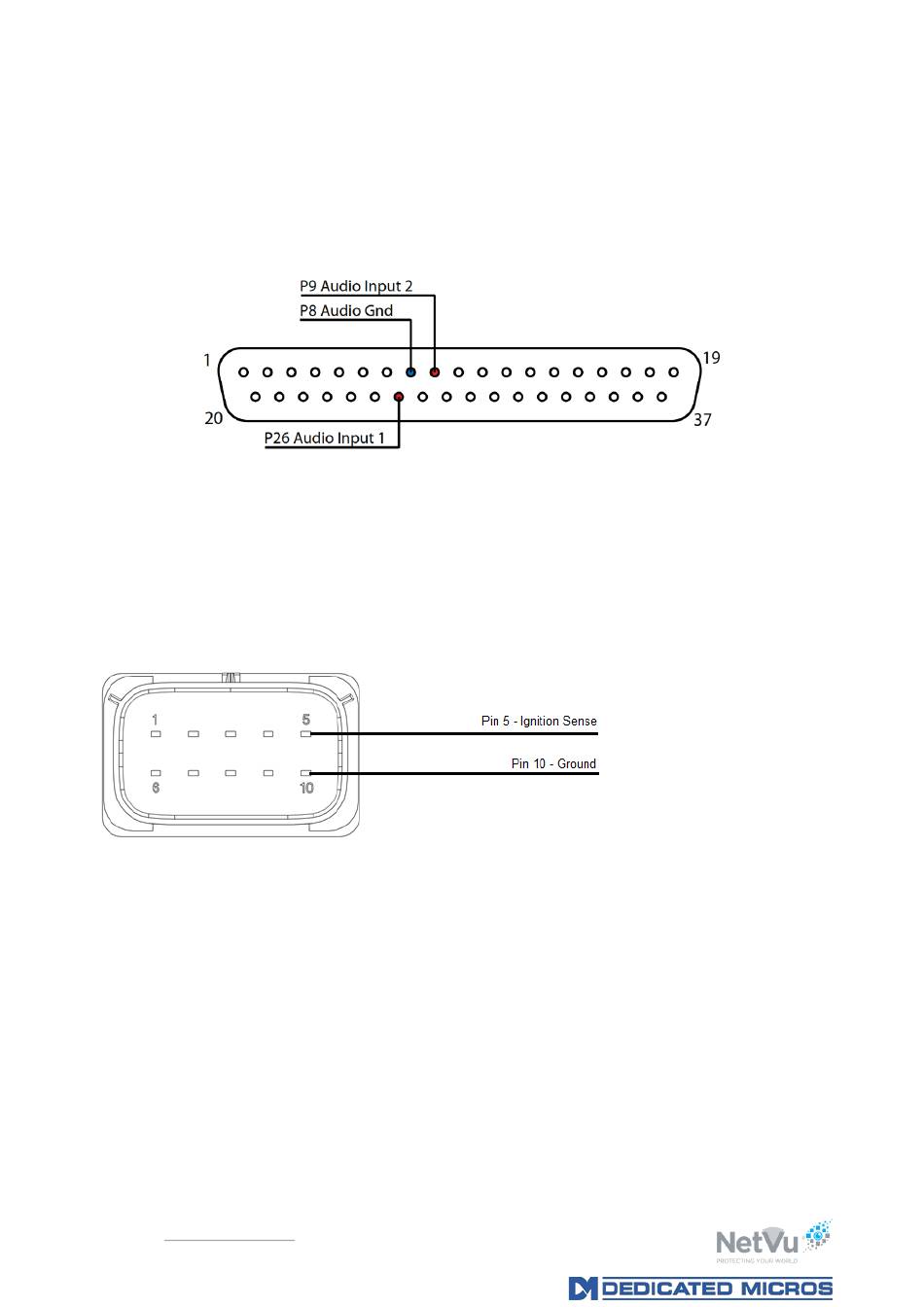

Ignition Sense Input

To detect ignition switch-off and power down after a set period of time. Active high input requiring
application of 7 volts minimum

Alarm Inputs

Three analogue alarm inputs are available which can be configured via the web pages as follows:
Normally open contact
Normally closed contact
Tamper detect
NetVu Ltd. www.netvu.org.uk
No 1 Thellow Heath Park, Northwich Road, Northwich, Cheshire. CW9 6JB
(Software Adjustable Gain, AGC and Bias Disable)
10 k Ohms
Single core screened audio cable
Alarm recognised when a short circuit to 0V is applied
Alarm recognised when input is open circuit
If a detector is configured with end of line (EOL) resistors four
detector states can be detected, no activity, alarm, tamper (open
circuit), tamper (short circuit)
Page 16 of 66.
