37-Way Multi-Purpose Connector Layout

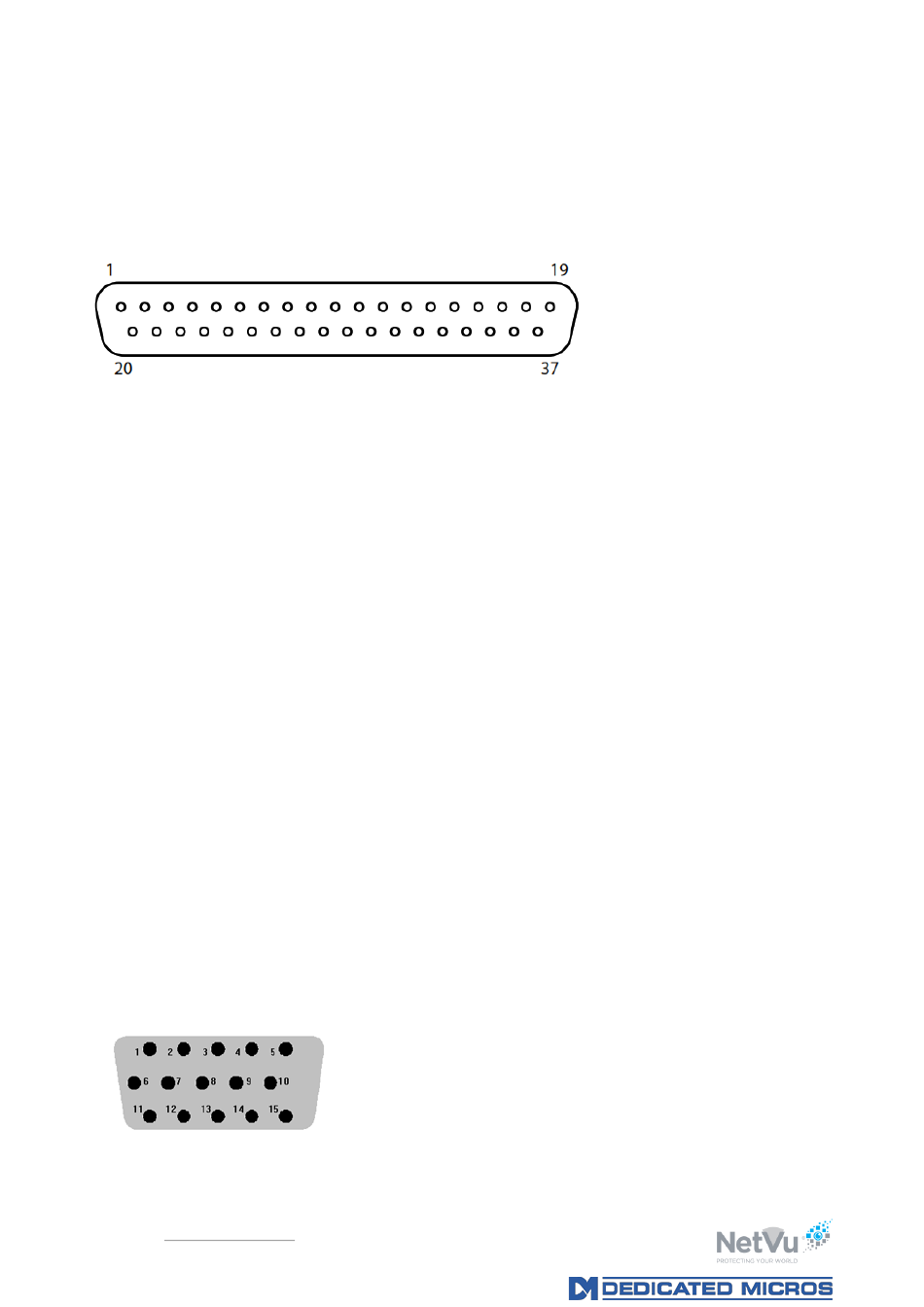

The layout of the 37 Way Connector is as follows:
Pin
Signal Description
1
MONITOR OUTPUT
2
GROUND
3
COM 1 RS-232 TX DATA
4
COM 1 RS-232 RX DATA
5
GROUND
6
NOT CONNECTED
7
NOT CONNECTED
8
GROUND
9
AUDIO INPUT 2 (MIC)
10
RELAY OUTPUT 1B
11
COM 2 RS-232 TX DATA
12
COM 3 RS-232 TX DATA
13
GROUND
14
ALARM INPUT 1
15
ALARM INPUT 3
16
RS-485 B
17
RELAY OUTPUT 2B
18
RELAY OUTPUT 2A
19
ALARM INPUT 4
15-Way Com-Port Expansion Connector Layout
The layout of the 15-Way com-port expansion connector as follows:
Pin
Signal Description
NetVu Ltd. www.netvu.org.uk
No 1 Thellow Heath Park, Northwich Road, Northwich, Cheshire. CW9 6JB
Pin
Signal Description
20
CANBUS LO
21
CANBUS HI
22
GROUND
23
NOT CONNECTED
24
NOT CONNECTED
25
GROUND
26
AUDIO INPUT 1 (LINE)
27
RELAY OUTPUT 1A
28
GROUND
29
ALARM INPUT 2
30
NOT CONNECTED
31
COM 2 RS-232 RX DATA
32
GROUND
33
COM 3 RS-232 RX DATA
34
GROUND
35
RS-485 A
36
ALARM INPUT 5
37
ALARM INPUT 6
Pin
Signal Description
