- Page 1 TransVu Express Installation Guide...
-
Page 2: Table Of Contents
Care in feeding cables ........7 Notes on installation space ....... 8 Mounting the Baseplate ........8 Baseplate dimensions & measurements: ..8 TransVu Express top view dimensions ..... 9 37 way Connector Layout ......... 10 Connecting Cameras ........11 Connecting a Composite Monitor ...... 11 Connecting Audio ..........12... -
Page 3: Introduction

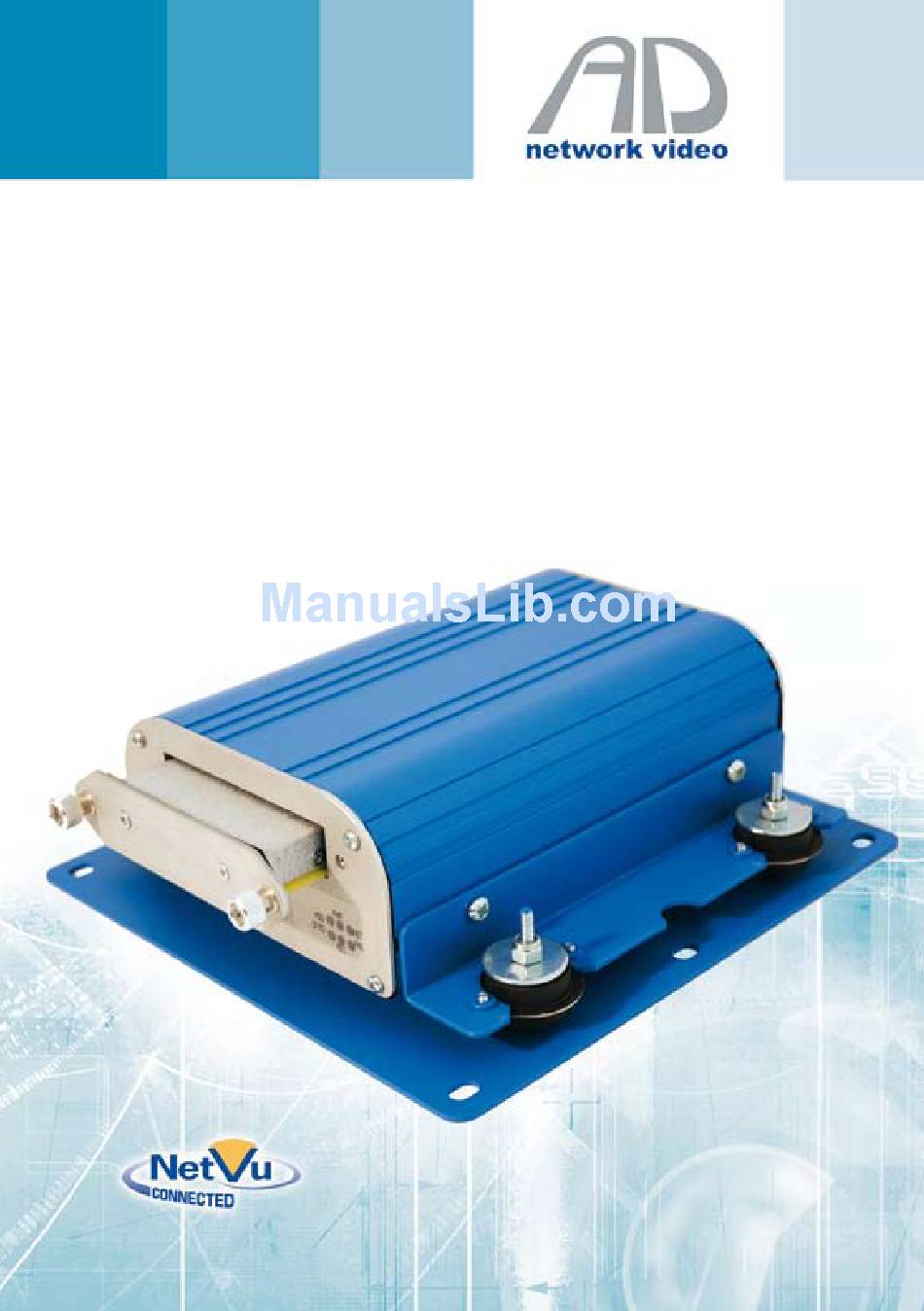

Part of the NetVu Connected product range, the TransVu Express is fully network capable and supports the Internet standard TCP/IP protocol. As the TransVu Express is a mobile product the unit can be accessed via wireless LAN or GSM / GPRS / CDPD / UTMS / HSDPA. Supporting up tor eight video inputs, two audio channels, three alarm inputs and intelligent power management the TransVu Express is a powerful, cost effective transportation recorder. -
Page 4: Installation
• Product Orientation - (cable connections, etc.) The TransVu Express can be mounted horizontally or vertically. It is recommended that it is mounted horizontally; the unit does not have to be orientated to the direction of vehicle travel. Sufficient space must be provided around the unit, connector and cable to allow a small amount of movement, particularly in the vertical axis, for the anti-vibration mounts to work effectively. - Page 5 8 UNC Stud Baseplate Vibration will cause the TransVu Express to move on the shock mounts. Allow clearance around the unit to accomodate this movement. It is recommended that a minimum fitment volume of 290mm (11½ ”) x 190mm (7½ “) x 90mm (3½ “) is allowed.
-
Page 6: Led's
LED’s Six status LEDs are visible on the opposite end of the unit to the connector. They are labelled as follows: FAIL CF/SD Description Function Illuminates red to indicate power to the hard disk drive CF/SD Illuminates red to indicate power to the CF/SD slots Illuminates green when Power is connected to the unit Illuminates green when the unit is recording Illuminates green when the unit is connected to the network... -
Page 7: Care In Feeding Cables
Ensure the cables feeding the 37 way connector are clamped to the same mounting surface as the TransVu Express. This will help avoid any vibration being transmitted along them to the unit. Recommended fitment area - 285mm (11¼”) x 195mm (7¾ “) Minimum height of enclosure - 90mm (3½... -
Page 8: Mounting The Baseplate
Mounting the Baseplate The TransVu Express baseplate should be secured to the vehicle using appropriate nuts, bolts and shakeproof washers. The baseplate should preferably be mounted horizontally although it can be mounted vertically if absolutely necessary. The unit does not require alignment with the normal direction of travel of the vehicle. -
Page 9: Transvu Express Top View Dimensions
TransVu Express top view dimensions 10mm 185mm 10mm 30mm 18mm 18mm 18mm 18mm 185mm 18mm 18mm 18mm 18mm 30mm AD Holdings ©2007... -
Page 10: 37 Way Connector Layout
37 way Connector Layout Numbers looking at the front of the male connector. Signal Description Signal Description Monitor Output Camera 7 Video ground Camera 6 Camera 8 Video ground Camera 5 Camera 3 Camera 2 Video ground Camera 4 Video ground Camera 1 Audio Input 1 (line) Audio ground... -
Page 11: Connecting Cameras
P3 Cam8 P24 Cam2 P4 Cam5 P23 Cam3 Connecting a Composite Monitor TransVu Express incorporates a 75 ohm composite video output. Note: The exact functionality of this output depends upon the product variant. P2 Video Gnd P1 Monitor AD Holdings ©2007... -
Page 12: Connecting Audio
Connecting Audio Signal type: Unbalanced, common analog ground Input type: Microphone or line sensitivity software selectable for both channels Signal levels: Microphone input 25mv to 500mv Line input 50mv to 1000mv RMS Impedance 10 k ohm AGC: Software selectable Bias supply: 3V, 3mA max., software selectable.* Recommended cable: Single core screened audio cable... -
Page 13: Ignition Sense Input
This wiring configuration uses an RJ45-11 connector to plug into a PC Network port. P13 TX- P12 TX+ P33 RX+ P34 RX- 1 - White/Orange TX+ 2 - Orange 3 - White/Green 4 - Blue 5 - White/Blue 6 - Green 7 - White/Brown 8 - Brown Ignition Sense Input... -
Page 14: Alarm Inputs
Alarm Inputs Three analogue alarm inputs are available which can be configured via the web pages as follows: Normally open contact Alarm recognised when a short circuit to 0V is applied Normally closed contact Alarm recognised when input is open circuit Tamper detect If a detector is configured with end of line (EOL) resistors four detector states can be detected, no activity, alarm, tamper (open... -
Page 15: Relay Output
Relay Output (solid state) This is a single pole solid state relay which can be activated by the software based upon user- defined events. Note: The relay is polarised and must always be connected in one of the ways shown below. -
Page 16: Connecting Vehicle Power
Connecting Vehicle Power TransVu Express is designed to run on vehicles with a negative earth or negative ground system. From Vehicle Power supply P17 & P18 Power Input -ve Fuse P36 & P37 Power Input +ve Connecting Ancillary Equipment When the unit is running, a solid state switch reflects the power input voltage onto the power pin 35. -
Page 17: Technical Specification
Technical Specification Power Voltage 10 to 30 volts Power consumption Typically 8 watts Power Management features Ignition sensing with auto shut down of system and cameras after user preset time. Auto shut down on nominal low voltage detection after user preset time. Immediate shut down of system on critical low voltage detection. - Page 18 Appendix Telnet to FTP See Configuration and Operation Guide Upgrading software See Configuration and Operation Guide AD Holdings ©2007...
- Page 19 Notes on installation space..........................8 Relay Output..............................15 Serial Port ..............................14 Switched Power Output ..........................14 System Documentation ..........................3 Technical Specification ..........................17 The TransVu Express range includes: ......................3 TransVu Express top view dimensions ......................9 AD Holdings ©2007...
- Page 20 AD Network Video. 1200 Daresbury Park, Daresbury, Cheshire, WA4 4HS, UK Dedicated Micros France Dedicated Micros, Australia PTY. 9-13 rue du Moulinet 5/3 Packard Avenue, Castle Hill, 75013 Paris, France NSW 2154, Australia Dedicated Micros Slovenia Dedicated Micros, Asia PTY Delavska cesta 26, 16 New Industrial Road, 4208 Sencure, Slovenia...
