Title TransVu 3 DVR Installation Manual

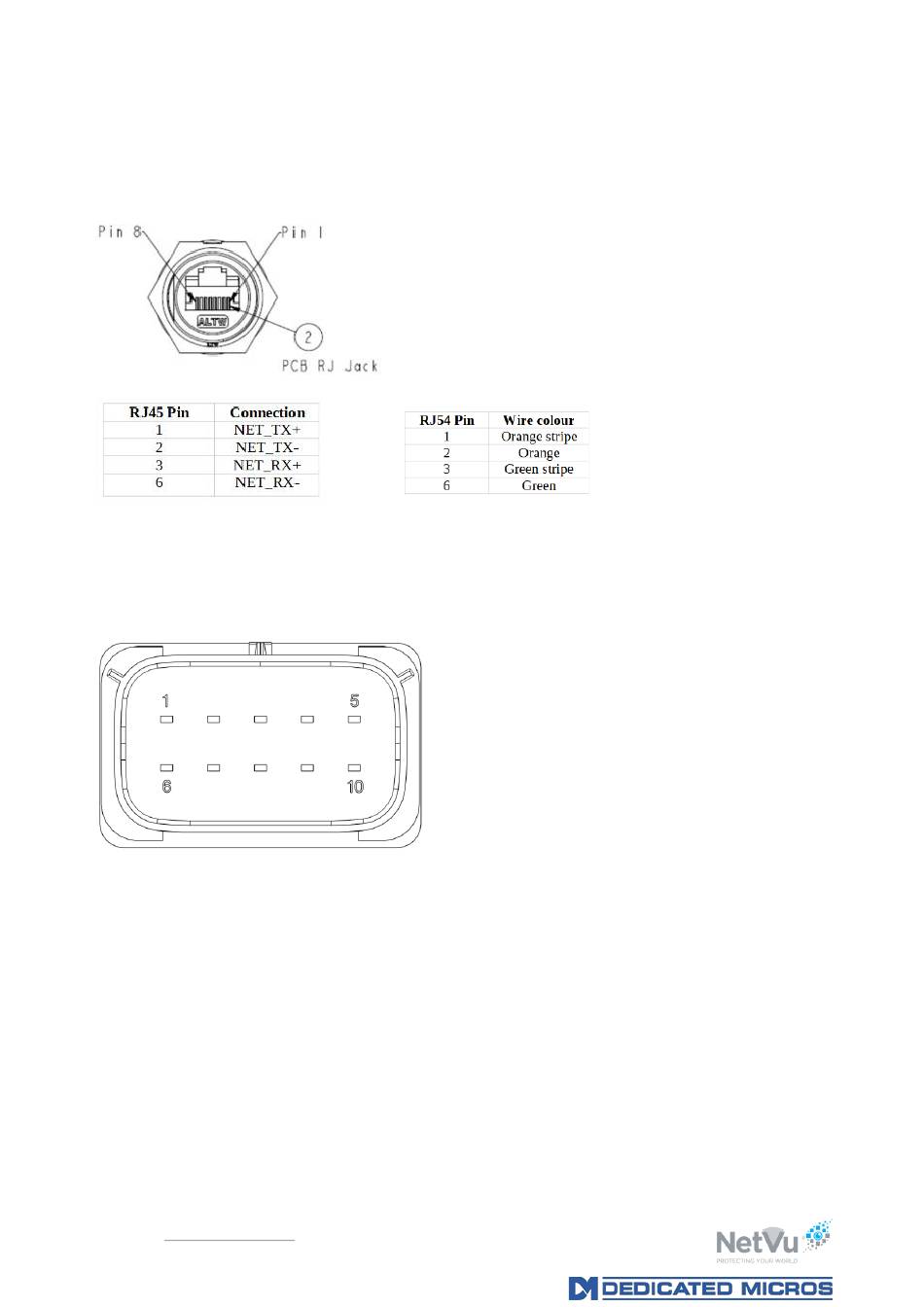

Waterproof Ethernet Connector Layout
The layout of the Waterproof Ethernet Connector is as follows:
Power Connector Layout
The layout of the Power Connector is as follows:
Pin 1: Supply Voltage Input Positive (+ve) Connection
Pin 2: Auxiliary Power Output
Pin 3: Not connected
Pin 4: Not connected
Pin 5: Ignition sense
Pins 6–10: Ground
NetVu Ltd. www.netvu.org.uk
No 1 Thellow Heath Park, Northwich Road, Northwich, Cheshire. CW9 6JB
Page 12 of 66.
