History Data Entry

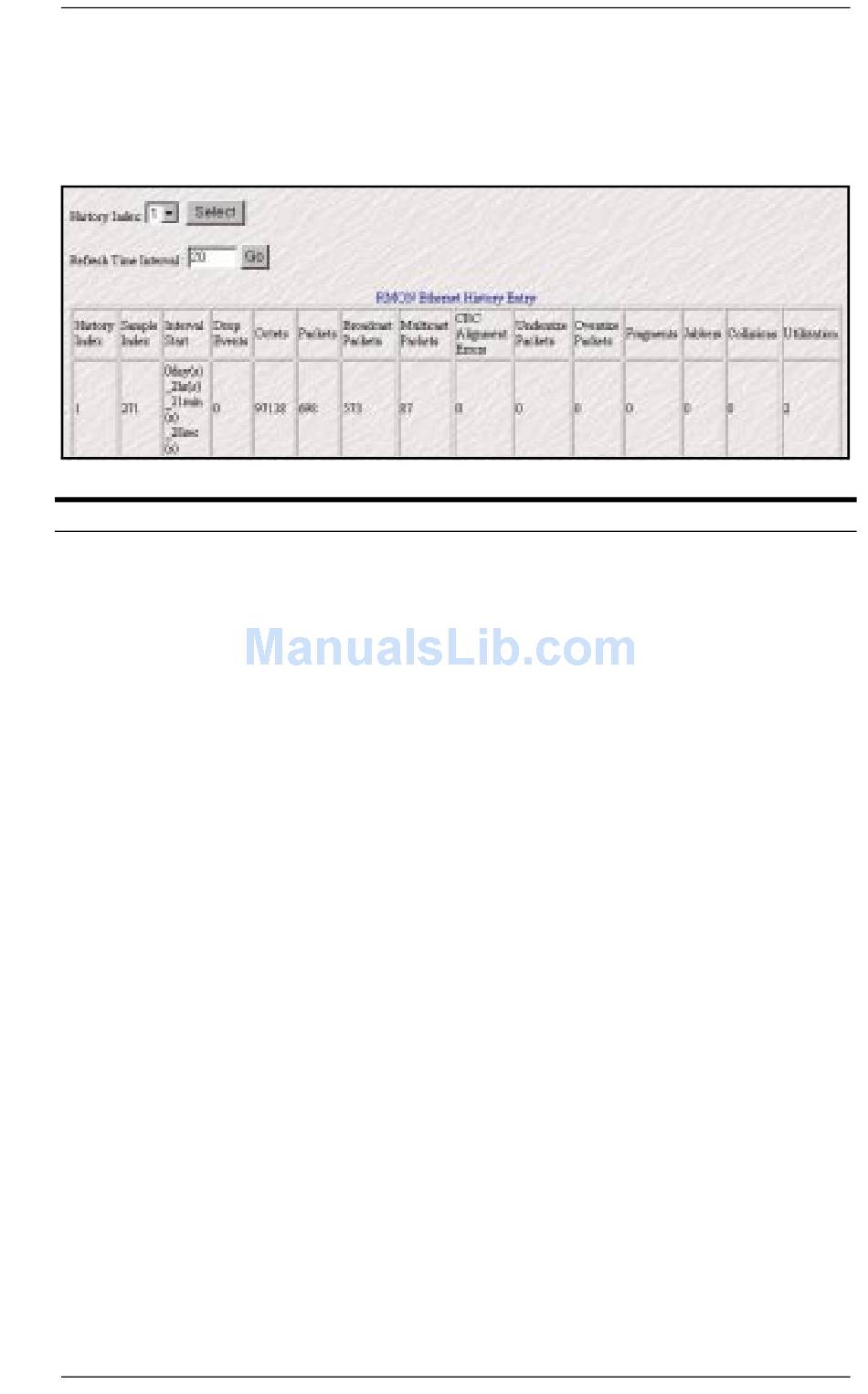

Select "History" then "History Data Entry" to display the data recorded for
items in the history control table.
Item
History Index
Refresh Time Interval
Sample Index
Interval Start
Drop Events
Octets
Packets
Broadcast Packets
Multicast Packets
9033060
Description
An index that uniquely identifies an entry in the History Control
table. Each such entry defines a set of samples at a particular
interval for an interface on the device.
History Indexes can include: 100 Mbps segment with samples
taken every 30 seconds, 100 Mbps segment with samples
taken every 1800 seconds, 10 Mbps segment with samples
taken every 30 seconds, or 10 Mbps segment with samples
taken every 1800 seconds.
Interval at which data displayed to the screen is refreshed.
An index that uniquely identifies the particular sample this entry
represents among all samples associated with the same history
control entry. This index starts at 1 and increases by one as
each new sample is taken.
Value of sysUpTime at the start of the interval over which this
sample was measured.
Total number of events in which packets were dropped by the
probe due to lack of resources during this sampling interval.
This number is not necessarily the number of packets dropped,
it is just the number of times this condition has been detected.
Total number of octets of data (including those in bad packets)
received on the network (excluding framing bits but including
FCS octets).
Number of packets (including bad packets) received during this
sampling interval.
Number of good packets received during this sampling interval
that were directed to the broadcast address.
Number of good packets received during this sampling interval
that were directed to a multicast address. This number does not
include packets addressed to the broadcast address.
Web-Based Management 79
