3. ELH100-12/24TX USER INTERFACE

Overview

Access is gained to the console menus by connecting a terminal to the
console port (with a direct cable connection or over modems), or using
Telnet to access the Agent Module over the network. These menus allow
you to reconfigure the hub, as well as to monitor the status and
performance of the hub or the attached stack. The menus have a layout
similar to the sample Main Menu shown in Figure 3-1. The information is
divided into the following parts:
•
Menu Name (includes access privileges)
•
Selectable Items
•
Screen Prompt for menu selections and entry of field parameters,
and Message Area for display of parameters or error messages.
9033060

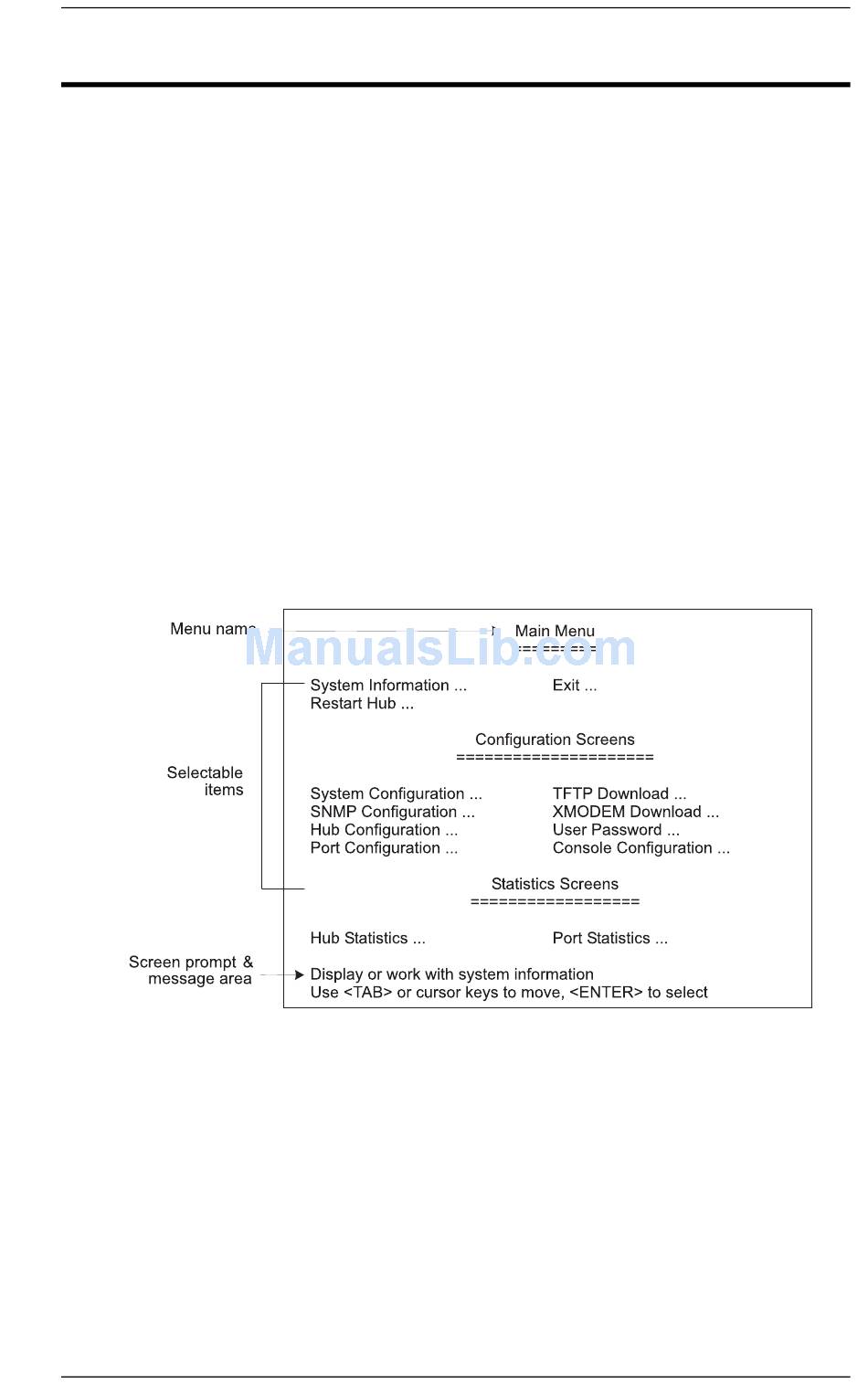

Figure 3-1. Sample Main Menu
ELH100-12/24TX User Interface 27
