MIB Browser

The MIB Browser menu allows access to various MIB group data and
statistics. This guide provides only a summary of the MIBs supported by
the Agent Module. All MIB group objects are as defined by RFC 1213
(MIB II), RFC 2108 (Multi-Segment Repeater MIB), and RFC 1643
(Ethernet-Like MIB). For further information on specific MIB entries, refer
to the on-line help provided by the Web Agent.

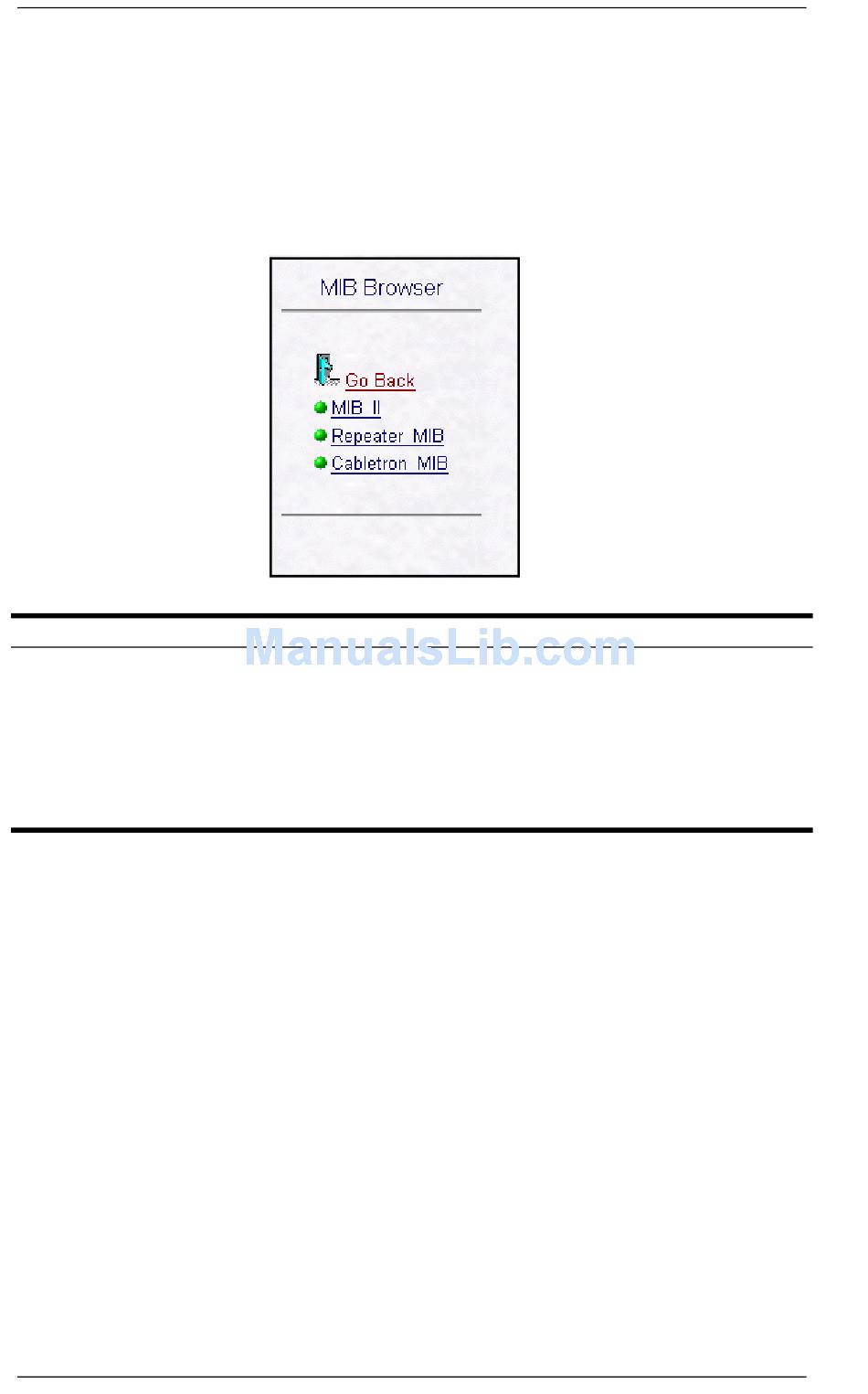

Menu
MIB II
Repeater MIB
Cabletron MIB
72 Web-Based Management
Description
Browse through MIB II group objects for detailed statistics,
settings and configuration options.
Browse through Repeater MIB objects for segment, hub and
port statistics.
Cabletron's private MIB enables configuration of Community
Names, Trap Managers and initiation of a TFTP download for
software upgrades.
ELH100-12/24TX
