Agent Configuration

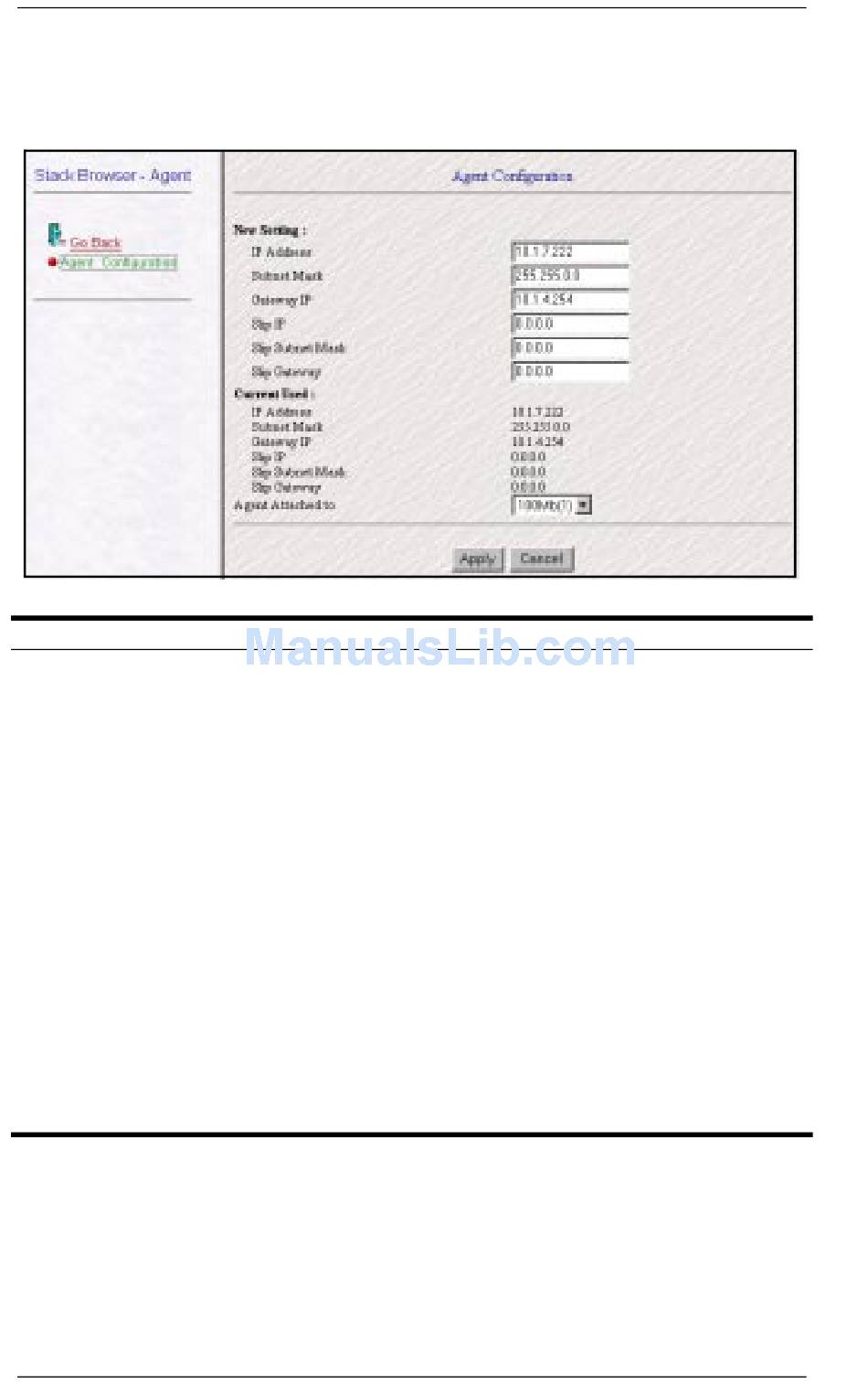

Select "Agent" then "Agent Configuration" to display IP configuration and
other information.
Item
IP Address
Subnet Mask
Gateway IP
SLIP IP
SLIP Subnet Mask
SLIP Gateway
Agent Attached to
66 Web-Based Management
Description
IP address of the Agent Module you are managing. Valid IP
addresses consist of four numbers, of 0 to 255, and separated
by periods. (The default address is 0.0.0.0.)
Subnet mask of the Agent Module you are managing. This
mask identifies the host address bits used for routing to specific
subnets. (The default subnet mask is 0.0.0.0.)
Gateway used to pass trap messages from the management
agent to the network management station. Note that the
gateway must be defined if the management station is located
in a different IP segment. (The default gateway is 0.0.0.0.)
IP address of the Agent Module used when accessing the
configuration program via an out- of-band SLIP connection to
the serial port.
Subnet mask for the SLIP IP address of the Agent Module.
SLIP gateway IP address used to pass traffic to the network
management station. Note that the gateway must be defined if
the management station is located in a different IP segment.
The network segment (10 Mbps or 100 Mbps) to which the
Agent Module is attached.
ELH100-12/24TX
