Ethernet Statistics

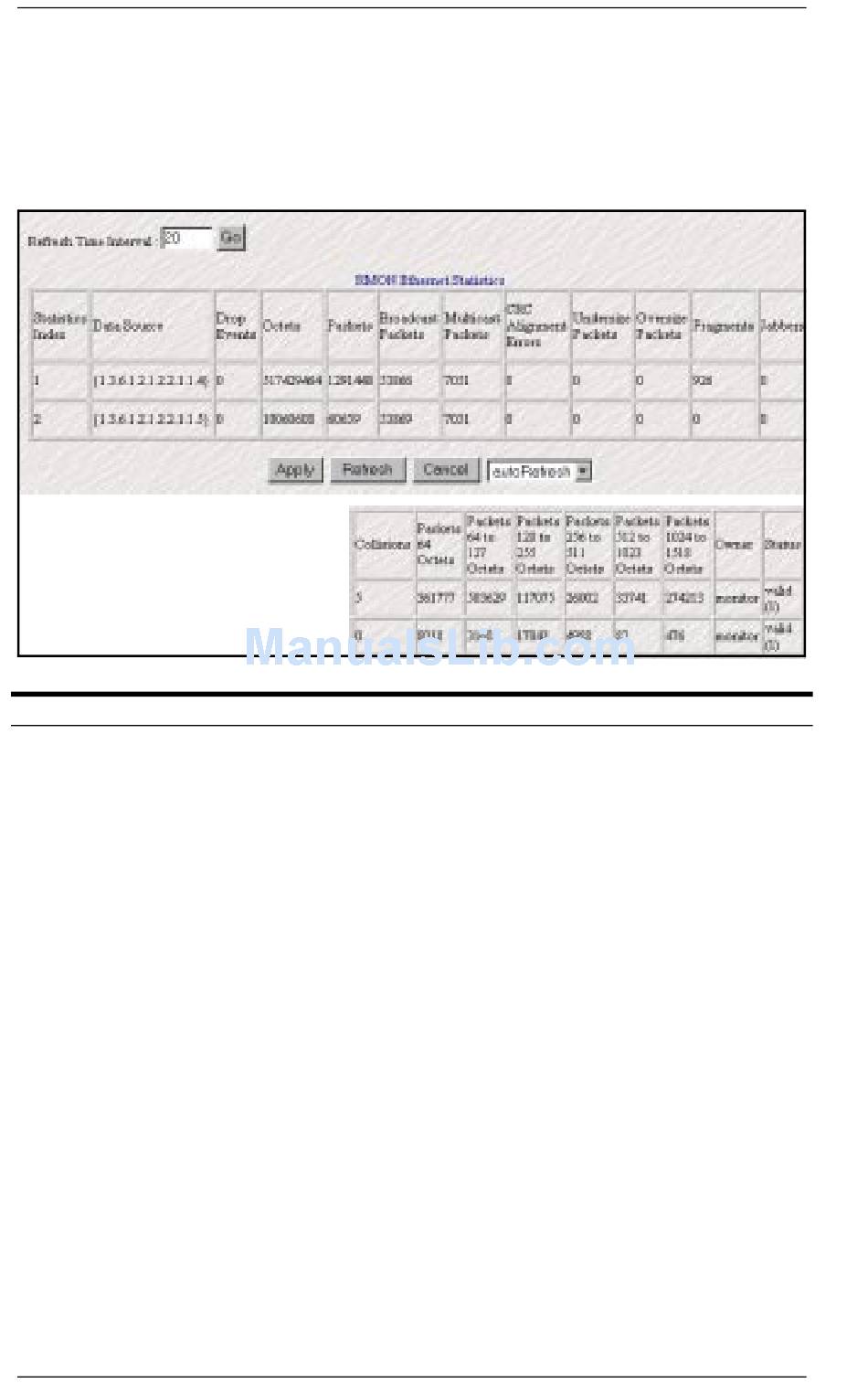

The RMON Manager collects statistics that allow you to quickly determine
how the network is performing. Select "Statistics" then "Statistics Entry" to
display Ethernet statistics.
Item
Statistics Index
Data Source
Drop Events
Octets
Packets
Broadcast Packets
Multicast Packets
CRC Alignment Errors
Undersize Packets
Oversize Packets
Fragments
74 Web-Based Management
Description
Index for this item in the control table.
MIB variable that is being monitored:
1.3.6.1.2.1.2.2.1.1.4 - 100 Mbps stack backplane
1.3.6.1.2.1.2.2.1.1.5 - 10 Mbps stack backplane
1.3.6.1.2.1.2.2.1.1.6 - Stack Unit 1 100 Mbps segment
1.3.6.1.2.1.2.2.1.1.7 - Stack Unit 1 10 Mbps segment
...
1.3.6.1.2.1.2.2.1.1.16 - Stack Unit 6 100 Mbps segment
1.3.6.1.2.1.2.2.1.1.17 - Stack Unit 6 10 Mbps segment
Number of events detected when packets were dropped (due to
a lack of resources condition in the probe).
Total number of octets of data (including those in bad packets)
received on the network (excluding framing bits but including
FCS octets).
Displays the total count for all packets, broadcasts, multicasts,
and dropped packets.
Number of broadcast packets.
Number of multicast packets.
Total number of packets with a CRC or alignment error.
Total number of undersize packets.
Total number of oversize packets.
Total number of packet fragments.
ELH100-12/24TX
