100Base-FX Fiber Ports
The 100Base-FX Fiber port uses SC connectors. Figure 2-7 shows an SC
fiber connector being inserted into a fiber port on the ELH100-12/24TX.

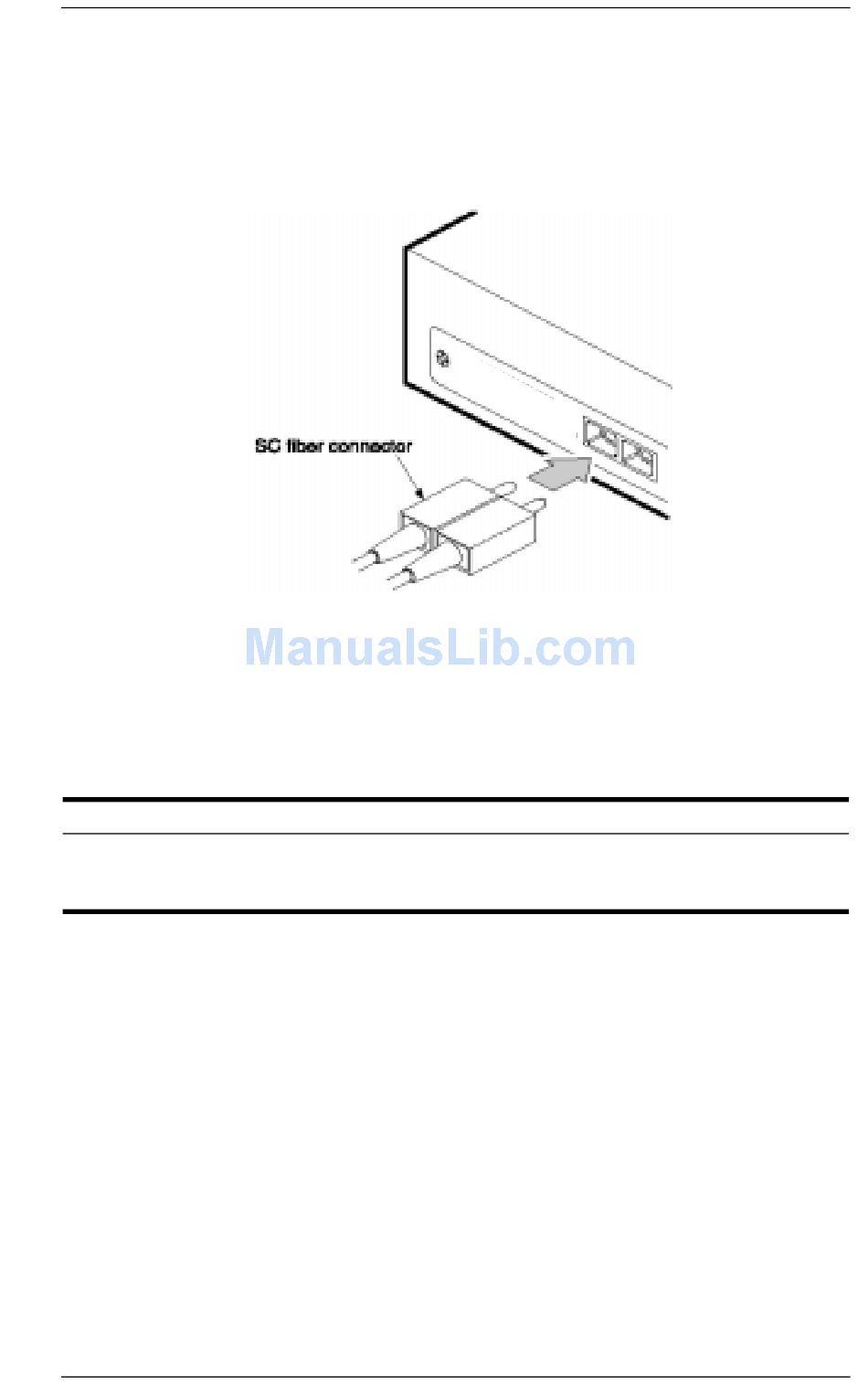

Figure 2-7. Inserting an SC Fiber Connector into a Fiber Port
The fiber uplink modules employed (Table 2-6) support multi-mode 62.5/
125mm fiber. The 100Base-FX ports use SC fiber connectors. The fiber
connectors are configured as a receive (RX) / transmit (TX) pair.
Part Number
ELH-ULSW-F2
9033060
Table 2-6. Fiber Uplink Module
Functions
100Base-FX-MM
Description
2-port multi-mode (MM) fiber uplink module us-
ing SC fiber connectors, with internal switching
between the 10 and 100 Mbps repeater buses.
Installation 25
