Port Backup

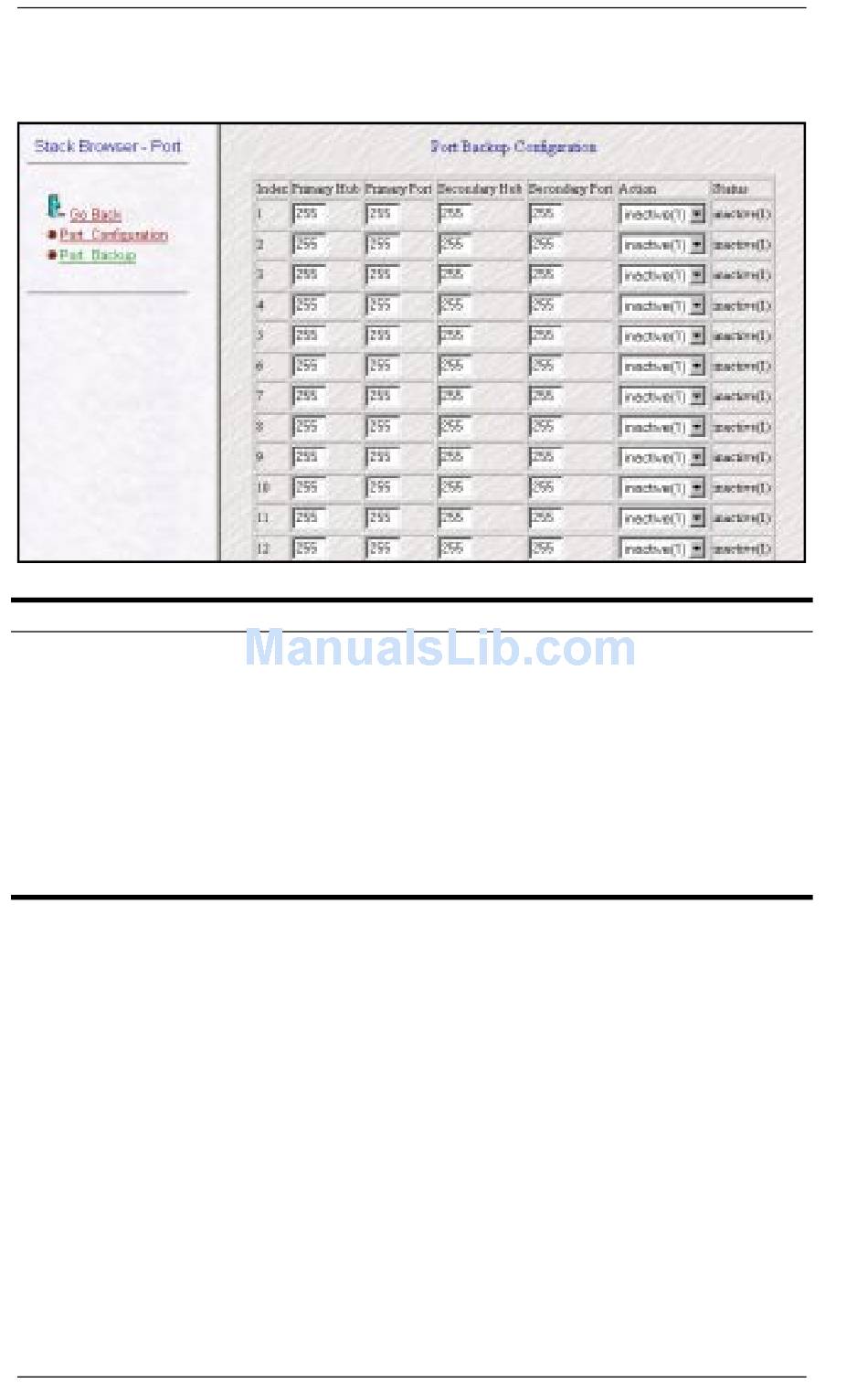

Select "Port" then "Port Backup" to display/configure redundant links.
Item
Index
Primary Hub
Primary Port
Secondary Hub
Secondary Port
Action
Status
70 Web-Based Management
Description
Identifier for up to 15 backup port pairs.
Hub ID for the master port.
Port identifier for the master port.
Hub ID for the slave port.
Port identifier for the slave port.
Each backup pair can be set to Active or Inactive.
Active is displayed if the backup port has taken over the link.
Inactive is displayed if the primary port is still handling the link.
Standby is displayed if there is no link on the primary port.
ELH100-12/24TX
