Internal Cable Connections

2.8 Connections for Temperature Compensated

Battery Charging Voltage

The Power Supply BSS-103A/02 in the Fire Alarm Control Panel BS-

310/320 / Controller BC-320 is provided with a temperature sensor for

temperature compensated battery charging voltage.

The internal connections to the sensor is already done when the

product leaves the factory. The cable with the sensor has to be taped

to the battery cover bracket. If a solution with external battery

connection is used, the temperature sensor must be removed and a

longer cable from an external battery cabinet must be attached to this

connection (refer to next chapter).

AutroSafe cabinet

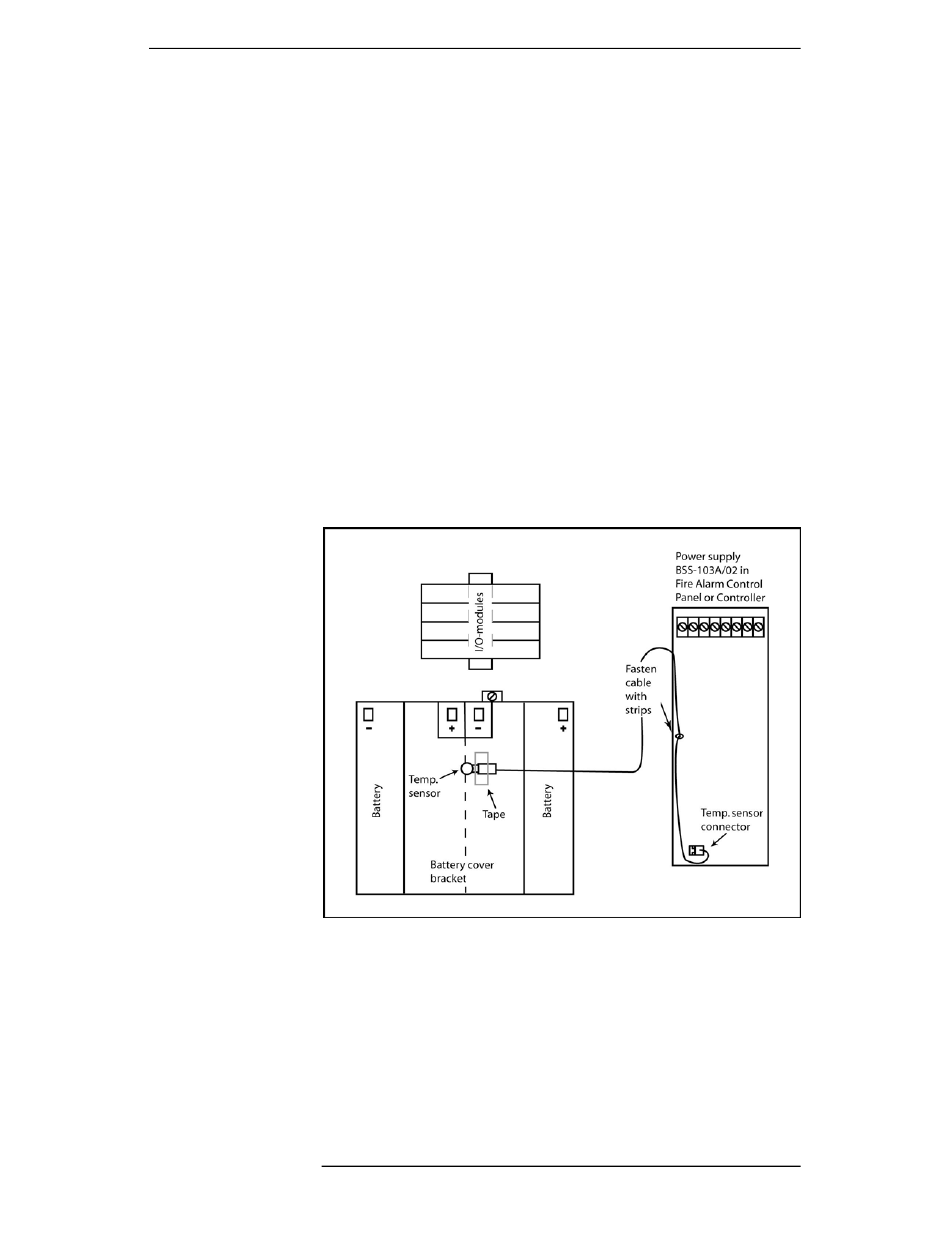

Fix the temperature sensor to the battery cover bracket with electrical

tape.

Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,

Rev. J, 2011-12-06,
