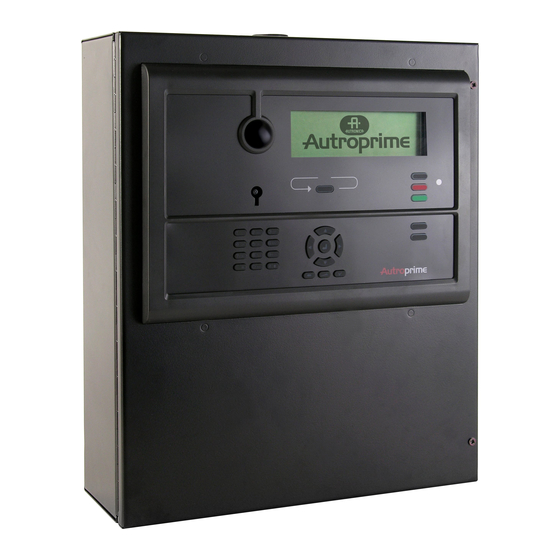

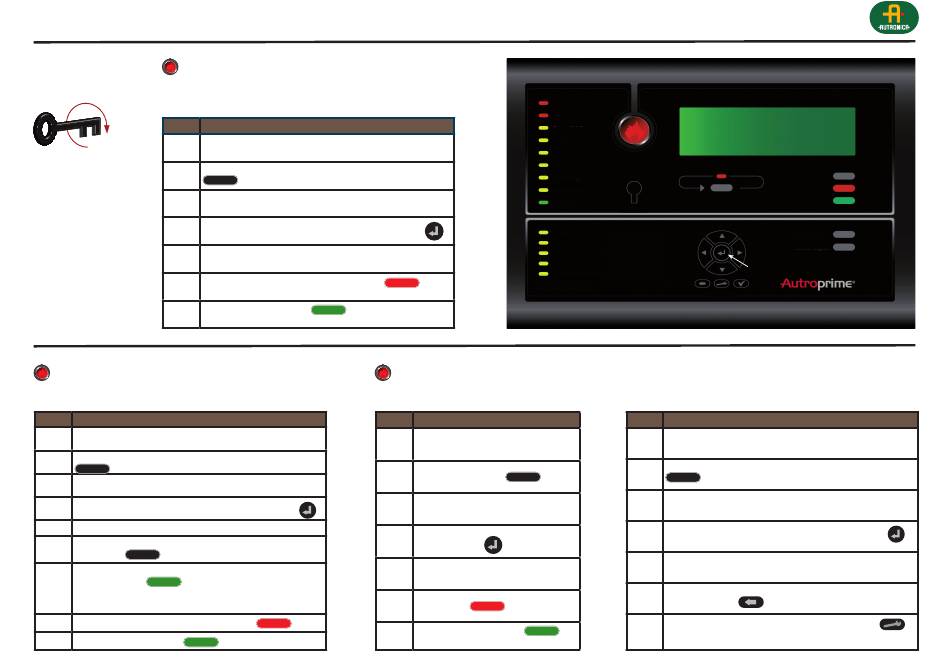

How to operate Fire Alarm Control Panel BS-200
Fire Alarm
To operate the
panel, turn the key
clockwise.
One or several fire detectors or manual call points in one or several detection
zones are signalling a Fire Alarm.
STEP
1 Follow all precautions described in the local fire instructions, step by
step
2 To silence the internal buzzer, press the black Mute Panel button
3 Scroll with the arrow down (/up) button to observe the point(s) in fire
alarm state.
4
To view detailed information for a selected point, press Enter
5 Investigate the scene(s) and carry out the necessary actions
6 To silence all alarms, press the red Silence button
7 Press the green Reset button
Fire Alarm
with Alarm Delay
A point is sending an alarm signal from a Delayed Action detection zone (alarm
delay is active).
STEP Actions to be taken
1 Follow all precautions described in the local fire instructions, step by
step
2 To silence the internal buzzer, press the black Mute Panel button
3 Scroll with the arrow down (/up) button to observe the point(s) in fire
alarm state
4
To view detailed information for a selected point, press Enter
5 Investigate the scene(s) and carry out the necessary actions
6 To prolong the alarm delay, if necessary, press the black Prolong
Delay button
7 If there is not a fire, the procedure can be ended by pressing the
green Reset button
If there really is a fire, press the Activate Outputs button or activate
the nearest manual call-point to activate alarm, carry out the
necessary measures, then go to step 8
8 To silence all alarms, press the red Silence button
9 Press the green Reset button
Actions to be taken
Pre Alarm
A fire detector in one of the detection zones has entered
the Pre Alarm state.
STEP Actions to be taken
1 Follow all precautions described in the local
fire instructions, step by step
2 To silence the internal buzzer, press the
black Mute Panel button
3 Scroll with the arrow down (/up) button to
observe the points(s) in pre alarm state
4 To view detailed information for a selected
point, press Enter
5 Investigate the scene(s) and carry out the
necessary actions
6 To acknowledge a Pre Alarm, press the red
Silence button
7 Press the green Reset button
Pre Alarm
Remote Call
Remote Call Response
Fault
Disabled Function
Test Condition
Supervisory Condition
System
Power
Delayed Activation
Annunciator
Remote Call
Annunciator Disabled
Remote Call Disabled
Cancel/Back
Function
Faults
Yellow fault indicator: Pulsing light when unaccepted fault warnings exist. The
text display indicates the nature of the fault. The internal buzzer is activated.
STEP
1 Notify service/technical personnel if necessary
2 To silence the internal buzzer, press the black Mute Panel button
3 Scroll with the arrow down (/up) button to observe the point(s) in fault
state
4
To view detailed information for a selected point, press Enter
5 Investigate the scene(s) and carry out the necessary actions
6 To acknowledge the fault(s), move back one level using the
Cancel/Back button
7 Scroll to select the desired point, press the Function button
then select Acknowledge to acknowledge the selected fault or
Acknowledge all to acknowledge all faults
Mute Panel
Silence
Reset
Prolong Delay
Activate Outputs
Enter
Select
Actions to be taken
