Guidelines for the Installation
and Addressing of Loop Units
6. Guidelines for the Installation
and Addressing of Loop Units

6.1 Introduction

The guidelines in this chapter describe the practical tasks which are
required during installation and configuration. Note that the order of
the different tasks may vary from installation to installation, as well as
the technical personnel who are responsible performing the tasks.
The tables for the guidelines (see next pages) are divided into two
colums; one for Installation and one for Configuration. To configure
the AutroSafe System, a computer with the AutroSafe Configuration
Tool is required.
All information regarding configuration is described in detail in the
«AutroSafe Configuration Tool Handbook».

6.2 Parameters Used During Configuration

Tag Name (TN), Production Number (PN) and Loop Sequence Index
(LSI) are parameters used during configuration. To be able to fully
understand the addressing and configuration of the system during
installation and commissioning, you should get familiarized with these
terms.

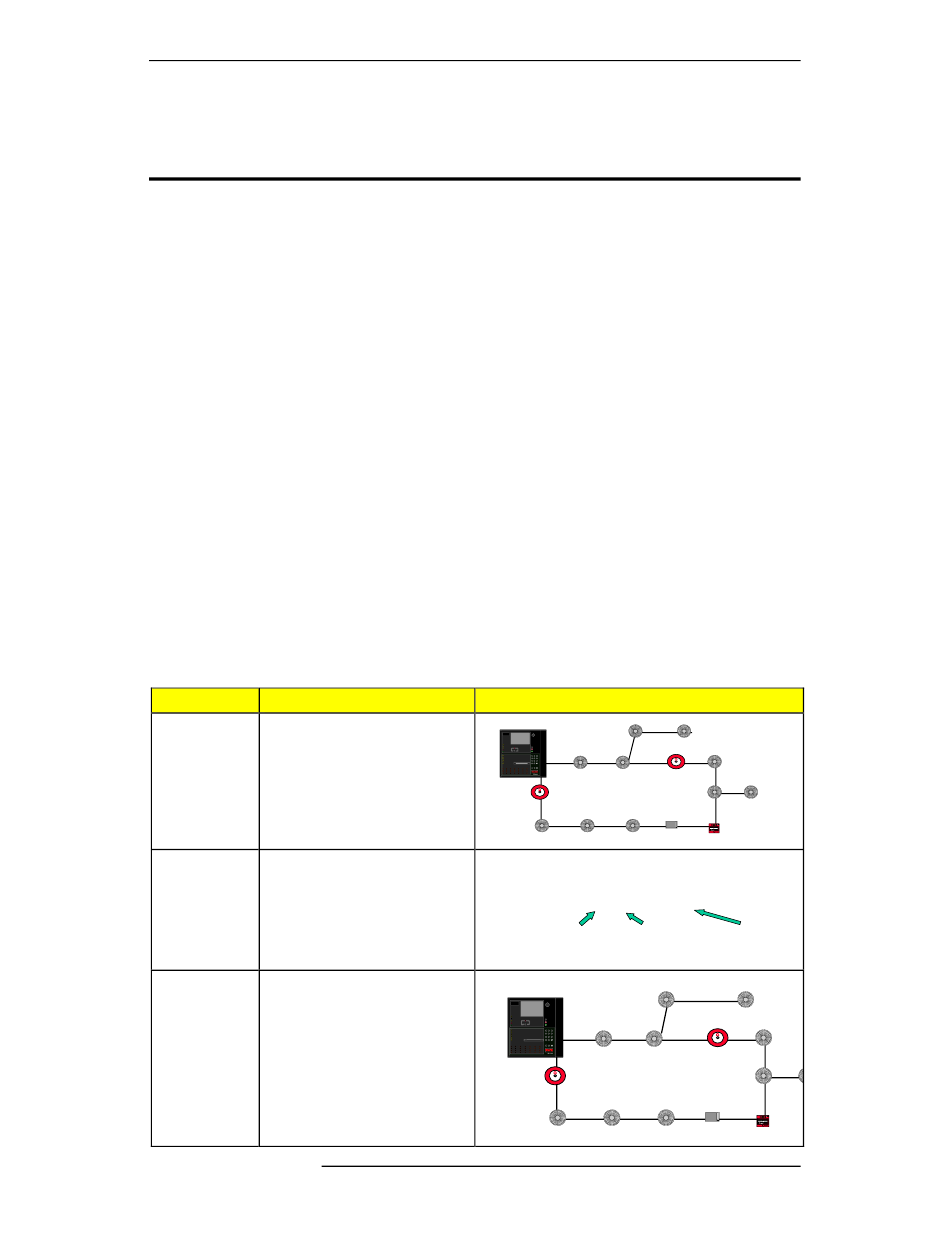

Parameter Description
Tag Name (TN) A short system unique
description assigned to the Loop
Unit location.
The Tag Name is a unique, but
freely selected name/number
(maximum 8 characters)
assigned to, for example, a
detector socket.
A Loop Unit unique number (the
Production
Number (PN) kind of unit / when and where it
was produced).
The number is electronically
stored in each Loop Unit and
presented in readable numbers
on a removable sticker.
Loop Sequence A loop specific index telling the
Index (LSI) exact Loop Unit order on the loop
(sequencially numbered).
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,
Illustration (example)
A01059
ALARM
Fault
Function Disabled
Mute Panel
Function Delayed
Silence Alarms
Fire Brig. Signalled More Events
Reset System
Power
Testing 1 2 3
Fire Brig. Disabled
4 5 6
Fire Brig. Fault
System Fault 7 8 9
Alarms Disabled
C 0
Alarms Fault
i 
A01057 A01058 A01061
 
Canteen 3
A u tro n i ca
Copy
Room
Stair
Canteen 2 Canteen 1
(Example)
00 - 06 - 00 1A AB 87
Manufacturer Code + LoopUnit Type + Serial Number
ALARM
Faul t
Function Disabled
Mute Panel
Function Del a yed
Sil e nce Alarms
Fire Brig. Si g nalled More Events
1
Power Reset System
Testing 1 2 3
Fi r e Brig. Disabled
4 5 6
Fire Brig. Fault
System Fault 7 8 9
Alarm s Disabl e d
Alarm s Fault C 0
i

 
11
A u t ro n ica
10 9
Rev. J, 2011-12-06,
Autronica Fire and Security AS
A01060
A01061
A u tro n i ca
Office 2
Office 1
Corridor
K N U S G L A S SE T
TR Y K K H E R B R EA K G L A SS P R ES S H E R E
2.1 2.2
2 3 4
A u t ro n ica
5
8 7 6
TR Y K K H E R K NU S GL A S SET P R ES S H E R E
B R E A K GL A S S
FARE
