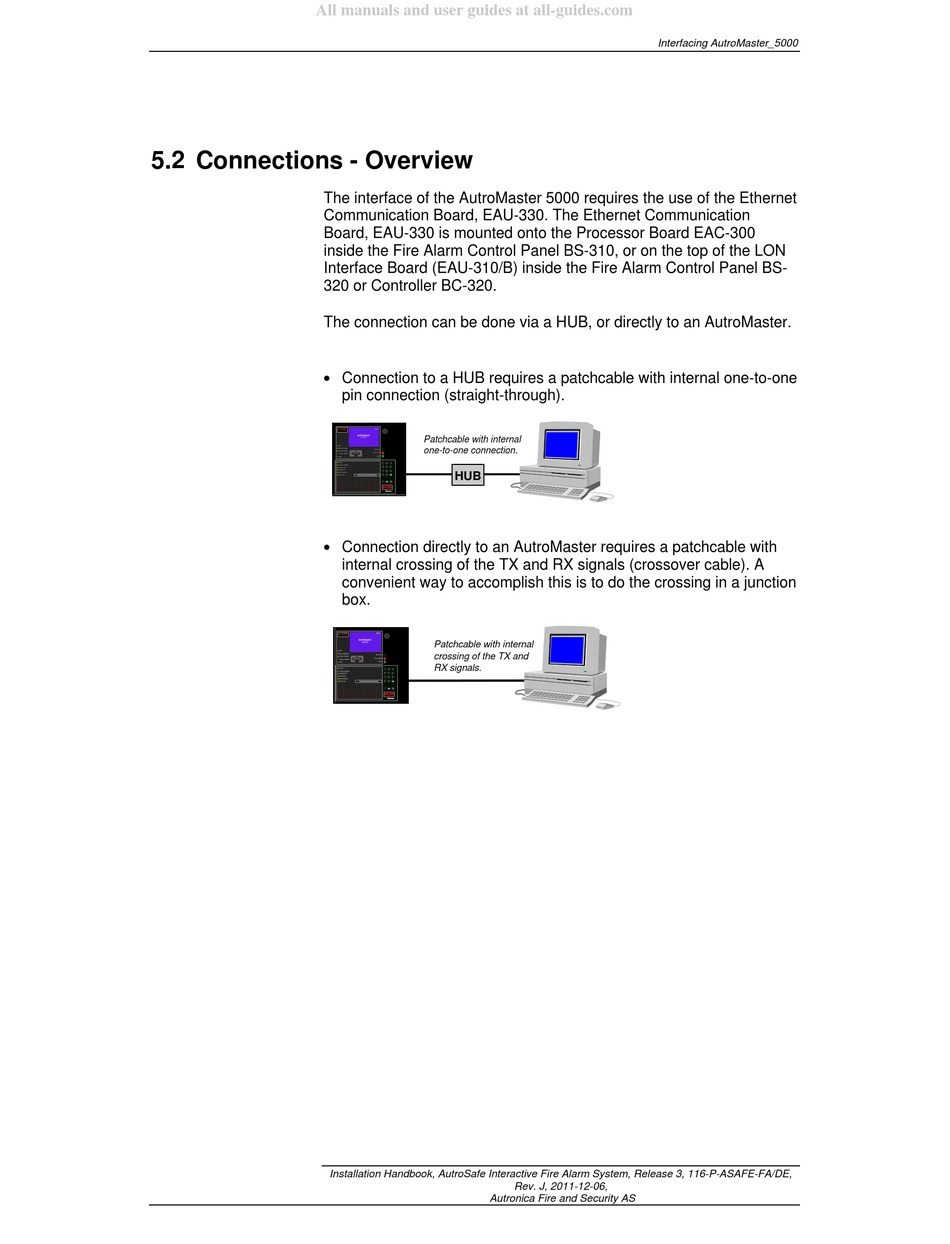

5.2 Connections - Overview

The interface of the AutroMaster 5000 requires the use of the Ethernet
Communication Board, EAU-330. The Ethernet Communication
Board, EAU-330 is mounted onto the Processor Board EAC-300
inside the Fire Alarm Control Panel BS-310, or on the top of the LON
Interface Board (EAU-310/B) inside the Fire Alarm Control Panel BS-
320 or Controller BC-320.
The connection can be done via a HUB, or directly to an AutroMaster.
 Connection to a HUB requires a patchcable with internal one-to-one
 Connection directly to an AutroMaster requires a patchcable with
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,
pin connection (straight-through).
ALARM 19:23
AUTROSAFE
Patchcable with internal
SelfVerify
Fault
one-to-one connection.
Fun ctio n Disabled
Mute Pan el
Function Delayed
Silence Alarms
Fire Brig. Signalled Mor e Events
Reset
Power
Testing 1 2 3
Fire Brig. Disabled
4 5 6
Fi re Brig. Fault
System F au lt
7 8 9
HUB
Alarms Disabled
C 0
Alarms Fault
i

 
internal crossing of the TX and RX signals (crossover cable). A
convenient way to accomplish this is to do the crossing in a junction
box.
19:23
ALARM
AUTROSAFE
Patchcable with internal
SelfVerify
Fault
Fun ction Disabled crossing of the TX and
Mute Pan el
Functio n Delayed
More Events Silence Alarms
Fire Brig. Signalled
Reset
Power
RX signals.
Testi ng 1 2 3
Fire Brig. Disabled
4 5 6
Fire Brig. Fau lt
System F au lt 7 8 9
Alarms Disabled
C 0
Alarms Fault
i

 
