Interfacing Voyage Data Recorder
Systems

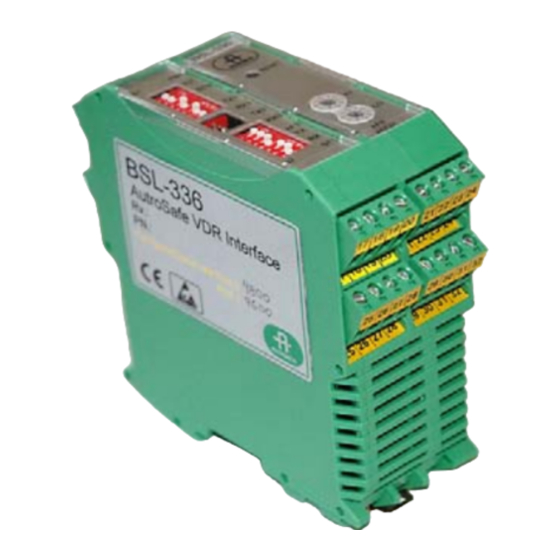

AutroSafe VDR Interface BSL-336
Protecting life, environment and property...
116-P-BSL336/EE, RevA 2007-01-25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AutroSafe Self Verify BSL-336 and is the answer not in the manual?

Questions and answers

Related Manuals for Autronica AutroSafe Self Verify BSL-336

Summary of Contents for Autronica AutroSafe Self Verify BSL-336

  • Page 1 Interfacing Voyage Data Recorder Systems AutroSafe VDR Interface BSL-336 Protecting life, environment and property... 116-P-BSL336/EE, RevA 2007-01-25...
  • Page 2 This publication, or parts thereof, may not be reproduced in any form, by any method, for any purpose. Autronica Fire and Security AS and its subsidiaries assume no responsibility for any errors that may appear in the publication, or for damages arising from the information in it.

  • Page 3: Table Of Contents

    5.3.2 AutroSafe Time ............... 19 Ensuring VDR Compatibility.............. 19 5.4.1 NMEA Strings................19 5.4.2 VDR Baud Rate ..............19 5.4.3 Status Update ................. 19 Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 1...
  • Page 4 8.1.6 FIR – Fire Detection..............37 8.1.7 Periodic Report ............... 39 Testing Output with HyperTerminal........... 41 Testing the Final Setup ..............43 9. Reader’s Comments ............45 Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 2...

  • Page 5: Introduction

    1.2 The Reader This handbook is designed for Autronica Fire and Security service personnel, VDR supplier and classification societies. 1.2.1 Reference Documentation In addition to this handbook, Autronica Fire and Security offers the following documentation: • 116-P-BSL336/CE Datasheet 1.3 IEC Standard requirements...

  • Page 6: Description

    Description 2. Description The Autronica BSL-336 voyage-data-recorder interface allows AutroSafe series fire-detection panels to be connected to voyage data recorders (VDR), so that information from the fire-detection system is recorded. The VDR interface is in compliance with: • IEC 61162-1 and IEC-61162-2 First edition 1998-09 Maritime Navigation and Radio-Communication Equipment and Systems.

  • Page 7: Specifications

    Relative humidity 10–95%, RH (non-condensing) (operating and storage) Level of Protection IP-20 EMC Compliance Emissions EN 50081-2 (94) Immunity EN 50082-2 (95) Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 5...

  • Page 8: Indicators And Buttons

    Not in use DIP-switches for port 1 (to AutroSafe) (S1.4 ON) DIP-switches for port 0 (to VDR) (S2.1 – S2.2 – S2.5 ON) Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 6...

  • Page 9: Connectors

    * Additional service port connection on 3-pin plug connector by use of service cable XJA-029 Connection 1–8 Connection 17–24 Connection 25–32 Connection 9–16 12 13 Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 7...

  • Page 10: Installation

    • AutroSafe system software version 3.4.1 or later (earlier versions of the system may function, but are not certified for use with BSL-336 by Autronica Fire and Security) • AutroSafe Serial-Communication Board EAU-321 — port 1 or 2 (See section 3.4 and control the jumper setting in chapter 3.3.1)

  • Page 11: Eau-321 Serial Communication Board

    The EAU-321 Serial-Port Communications Board, when installed, is located as per figure: Panel front Processor board Communications boards: LON-Interface board EAU-310 (if installed) Serial-Port Communication Board EAU-321 Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 9...

  • Page 12: Jumper Settings - Eau-321

    Important: Note the port used, it is important that the physical port used and the port you configure in the software be in agreement. Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 10...

  • Page 13: Termination By Use Of Ribbon Cable And Standard Screw Terminal Block

    Terminal Block The drawing shows an EAU-321 Port 1-connection. EAU-321 Port 2 may be used with connection terminals 13, 15 and 19. Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 11...

  • Page 14: Termination By Use Of Cable Xba-055

    Cable XBA-055 EAU-321 BSL-336 Port 1 XBA-055 Cross section of EAU-321 Note: Use the upper row of connection pins on the EAU-321 Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 12...

  • Page 15: Bsl_336 Installation

    — i.e. maximum 10 metres. If longer distances are required, a modem and shielded cable are recommended (port 1 is insulated to prevent ground fault problem). Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 13...

  • Page 16: Connections

    BSL-336 and EAU-321 must be connected to the AutroSafe power supply in the way described in the following figure: 4.2.2 Connection with EAU-321 connection block Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 14...

  • Page 17: Connection With Eau-321 And Cable Xba-055

    BSL_336 Installation 4.2.3 Connection with EAU-321 and cable XBA-055 Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 15...

  • Page 18: Autrosafe Configuration

    Connect Unit dialogue opens In left pane, select "Autrocom Serial" In right pane, select "Serial Interface for VDR Unit" Click "Connect" Save file Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 16...

  • Page 19: Important Considerations

    (which will always fit in the description text field). Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 17...

  • Page 20: Characters, Symbols And Text

    In such applications, AutroSafe will not register a fault if the door remains open; consequently, no error will be transmitted to the VDR. Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 18...

  • Page 21: Autrosafe Time

    VDR to show near-real time status. In these cases, the BSL-336 should be configured to send status updates e.g. every ten minutes. Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 19...

  • Page 22: Configuring Bsl_336

    Standard default configuration of BSL-336 is described in chapter 6.4 Communication parameters for the service port is 115200 baud, 8 data bit, no parity, 1 stop bit. Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 20...

  • Page 23: The Service Port Commands

    P1=Id 1:fixed 2:seq #DoAlive 0 Do 5 min action #DoStatus 0 Do 120 min action Syntax: #CmdP1:P2:P3<CR> Pn can be :1:, :0x01:, :'text': Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 21...

  • Page 24: Showcfg - Show Configuration

    If you change the baud rate, the BSL-336 software must be restarted; this can be done by typing the command #rt or pressing the RESET button on BSL-336. Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 22...

  • Page 25: Cfgperiod - Set Reporting Periods

    The Id will become AA, AB, AC… up to ZZ. #CfgTalker2← P1=1 is fixed "FR", P1=2 is sequential Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 23...

  • Page 26: Testing Bsl_336

    It will print a line on the screen (or two, if the VDR trace is active): 12:40:06.343 PeriodMgr 00,st01: Periodic: Alive. Next Status 105(0x69) 12:40:06.351 NMEA_Formt00,st02: $FREVE,124006,Sm00002,======Alive: Communication OK=====*77 Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 24...

  • Page 27: Dostatus - Send Periodic System Status

    12:46:37.709 PeriodMgr 00,st01: Periodic: System Status 12:46:37.715 AcFormTx 00,st01: TX: UPDATE_STATUS $--==M91 12:46:37.728 NMEA_Formt00,st02: $FREVE,124637,Sm00003,======System status: START========*2D 12:46:37.943 NMEA_Formt00,st02: $FREVE,124637,Sm00003,======System status: FINISHED=====*42 Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 25...

  • Page 28: Log Strings

    It does not tell which loop each detector is connected to. AutroSafe refers to the hardware using a unique UnitId, namely a two-letter code followed by a sequence number. Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 26...
  • Page 29 Operator panel 0x0-0x1fc Power 0x0-0xfc Operation zone (DZs and AZs handled by an operator panel) 0x0-0xfc Unit Group 0x0-0xfc Panel 0x0-0xfc Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 27...
  • Page 30 : TEST FPD Name*42 $FREVE,103031,FP00006,Outp Off : TEST FP6 Name*34 $FREVE,103032,FP00003,Outp Off : TEST FP3 Name*37 $FREVE,103035,OZ00001,Oper Reset Sy: TEST OZ1 Name*16 Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 28...

  • Page 31: Ala -System Faults

    BN-320/2 has status Normal, if the door is not activated by AutroSafe, and the door position is Open. Periodic status reports include all doors with status Not Normal. Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 29...
  • Page 32 Sea mode (ordered closed) c--c Message's description text The text contains three parts: "Door" <status :>, see below Unit text from AutroSafe config. Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 30...
  • Page 33 VDR, as AutroSafe doesn’t distinguish FPE (Fire-Protection Equipment) type information in fault messages. Example: Example: $FREVE,232535,FP00010,Unit Fault : TEST FPA Name C;0; Door not closed* Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 31...

  • Page 34: Eve - General Event Message

    $FREVE,000001,DZ00518,Fire Alarm S2: TEST DZ206 Name*46 $FREVE,000001,DZ00519,Fire Alarm S1: TEST DZ207 Name*45 $FREVE,000001,DZ00520,Fire Alarm Wc: TEST DZ208 Name*16 $FREVE,000001,DZ00521,Fire Alarm Of: TEST DZ209 Name*0B Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 32...
  • Page 35 Fault has been be removed from the panel without repaired, but the operator has prior accept. not yet accepted it. Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 33...
  • Page 36 $FREVE,103002,AZ00003,Zone Alert : TEST AZ3 Name*35 $FREVE,103002,AZ00003,Zone Evacuate: TEST AZ3 Name*6F $FREVE,103002,AZ00003,Zone Silenced: TEST AZ3 Name*64 $FREVE,103002,AZ00003,Zone Off : TEST AZ3 Name*34 Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 34...
  • Page 37 Monitoring input ON Output activated Outp On Special unit status. (The two letters just before the Outp state HF: Must be interpreted by Autronica staff. colon are copied from the AutroCom OP_EqStatusMsg) Unknown State unknown due to Outp Unknown : Disablement or Fault.
  • Page 38 Automatic control actions inhibited Ctrl Inhibitd: Automatic control actions allowed Ctrl Allowed : $FREVE,000001,PT00001,Ctrl Inhibitd: TEST PT1 Name*70 $FREVE,000001,PT00001,Ctrl Allowed : TEST PT1 Name*35 Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 36...

  • Page 39: Fir - Fire Detection

    The IEC 61162-102 document says nothing about the combination of field 1 (event) and field 7 (condition). AutroSafe use field 7 and 8 to show detector alarm status. Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 37...
  • Page 40 Fire EarlyWrn: Pre-Alarm – only on panel display Fire PreAlarm: Alarm – activates Alarm Zones (bells) and Fire Protection Equipment Fire Alarm Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 38...

  • Page 41: Periodic Report

    The system status is logged with one line when initiated, and one line when completed. Note that the timestamps of re-reported events are the original time of the event. Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 39...
  • Page 42 $FRFIR,D,143509,FD,PT,000,001,X,,Fire Disabled: TEST PT1 Name TEST DZ1 Name*7C $FREVE,143504,FP00001,Outp On : TEST FP1 Name*7D $FREVE,143740,Sm00003,======System status: FINISHED=====*42 $FRALA,143740,FR,OT,000,901,N,V,Syst Fault : AutroSafe comm. OK*75 $FREVE,143747,Sm00002,======Alive: Communication OK=====*74 Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 40...

  • Page 43: Testing Output With Hyperterminal

    Signal 9-pin Connector Connection on Signal connector on cable VDR (Port 0) XJA-037 Remove connector from cable and use wires. Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 41...
  • Page 44 [stored events from AutroSafe] $FREVE,143639,OZ00001, =====System status: FINISHED===== Example: Note that this may be interspersed with other data transmitted from the fire-detection system. Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 42...

  • Page 45: Testing The Final Setup

    Note that the line between BSL-336 and the VDR is one-way communication, and is therefore not monitored; VDR-data-receipt monitoring, it is therefore the responsibility of the VDR manufacturer. Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS Page 43...

  • Page 47: Reader's Comments

    Title: Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System Ref. No.: 116-P-BSL336/EE, RevA 2007-01-25 Your information on any inaccuracies or omissions (with page reference): Please turn the page Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25, Autronica Fire and Security AS...
  • Page 48 ------------------------------------------------------------------------------------------------ Fax: ------------------------------------------------------------------------------------------------ Date: ------------------------------------------------------------------------------------------------ Please send this form to: Autronica Fire and Security AS N-7483 Trondheim Norway Tel: + 47 73 58 25 00 Fax: + 47 73 58 25 01 www.autronicafire.com Interfacing Voyage Data Recorder Systems, AutroSafe Interactive Fire-Alarm System, 116-P-BSL336/EE, RevA 2007-01-25,...
  • Page 50 Autronica Fire and Security AS is an international company, based in Trondheim, Norway, and has a worldwide sales and service network. For more than 40 years Autronica’s monitoring systems have been saving lives and preventing catastrophes on land and at sea. Autronica Fire and Security’s most important business area is fire detection and security.
