Operator's Handbook
Autroprime Interactive Fire Detection System
116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Autroprime and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Autronica Autroprime

Summary of Contents for Autronica Autroprime

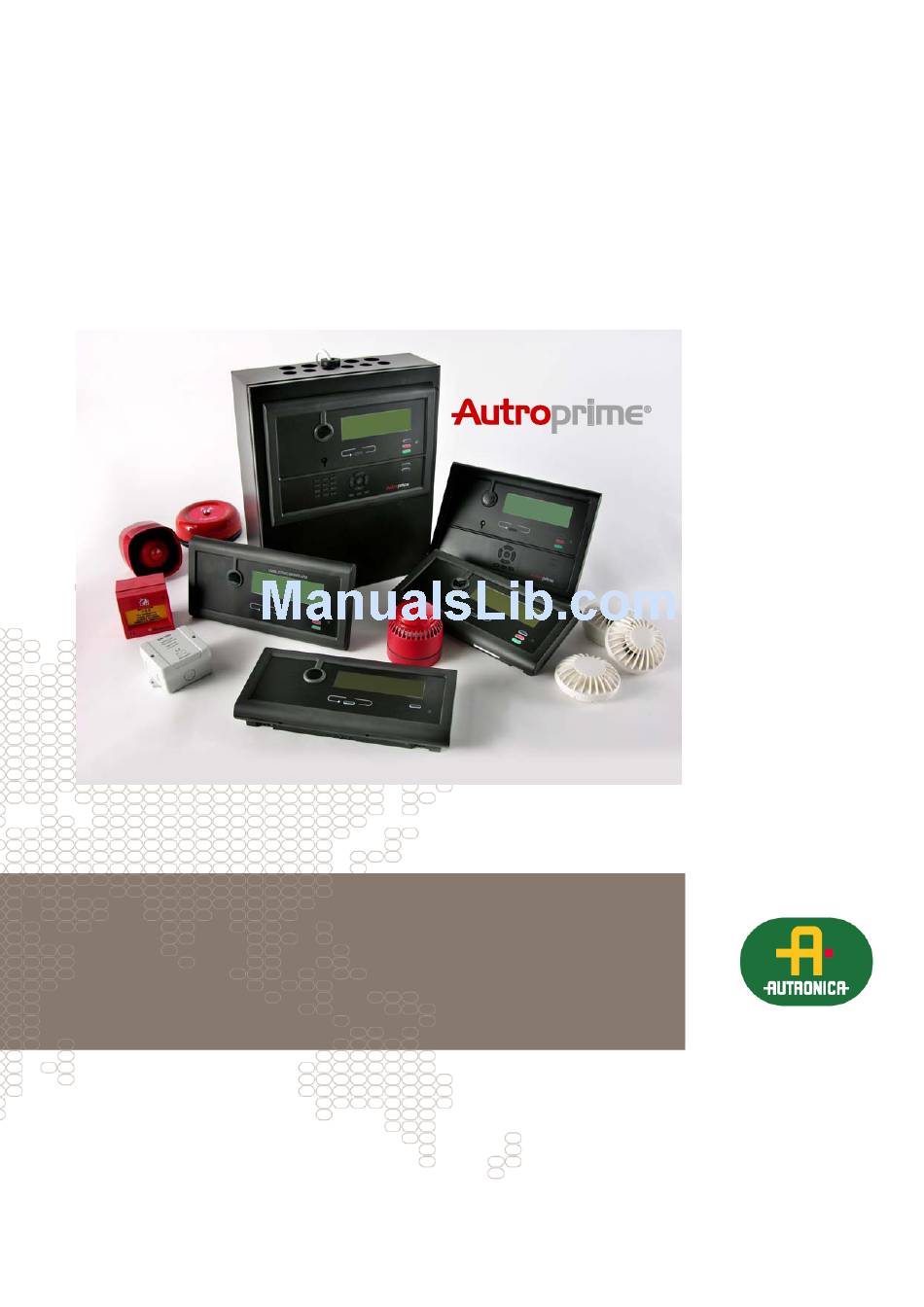

  • Page 1 Operator's Handbook Autroprime Interactive Fire Detection System 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28...
  • Page 2 This publication, or parts thereof, may not be reproduced in any form, by any method, for any purpose. Autronica Fire and Security AS and its subsidaries assume no responsibility for any errors that may appear in the publication, or for damages arising from the information in it.

  • Page 3: Table Of Contents

    3.11.7 SOLAS Detection Zones............24 3.11.8 Silent, Small and Large Alarm – Overview ......24 4. About «In the Event of….» ..........26 Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 1...
  • Page 4 12.11 Example – How to Disable a Detection Zone ........49 13. Enabling ................51 13.1 Introduction..................51 13.2 Enable Menu ..................51 13.3 Enabling Deactivated Components........... 52 Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 2...
  • Page 5 16.4 Testing Alarm Zones ................. 70 16.5 Testing Fire Alarm Devices ............... 70 16.6 Testing Loop Outputs ................ 71 16.7 Local Outputs ..................72 Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 3...
  • Page 6 Table of Contents 17. Appendix ................73 17.1 Menu Structure.................. 73 18. Reader’s Comments ............77 Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 4...

  • Page 7: Introduction

    Datasheet; Repeater Panel BS-211 116-P-BS211/CGB bs211_cgb Datasheet; Information Panel BV-210 116-P-BV210/CGB bv210_cgb Datasheet; Fire Brigade Panel BU-210 116-P-BU210/CGB bu210_cgb Datasheet; Mimic Driver BUR-200 116-P-BUR200/CGB bur200_cgb Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 5...

  • Page 8: Components

    Item G and H and some other items may need to be provided with a seperate power supply. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 6...

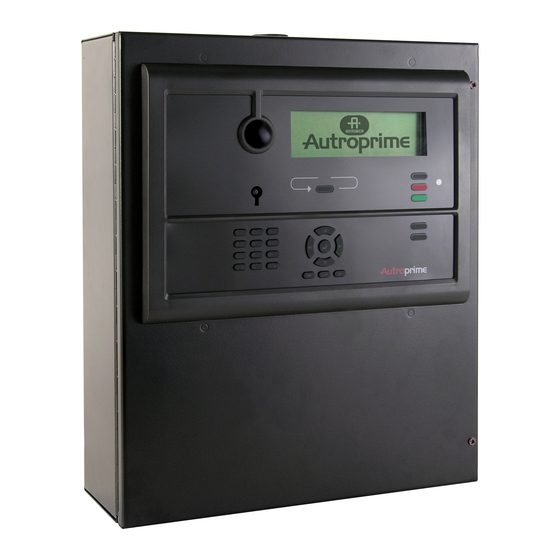

  • Page 9: The Operator Panel

    The illustration below shows the Operator Panel with its panel display, operating buttons and indicators. Indicators Panel display Upper section Lower section Alphanumeric keypad / Operating Buttons Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 7...

  • Page 10: Indicators

    All points in Supervisory state have been acknowledged System Fault Steady yellow light when a system fault is present. Power Steady green light when power is ON. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 8...

  • Page 11: Lower Section

    Steady yellow light when the signal to Fire Alarm Routing Equipment (FARE) has been disabled. The Disabled Function indicator will also have a steady yellow light when FARE is disabled. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 9...

  • Page 12: The Panel Display

    Pressing and holding this button down for more than 7 seconds will activate the Resound function. Reset Used to reset the system. (green) Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 10...
  • Page 13 Activate Outputs. (Activation of a manual call point will normally give immediate action, provided that no delay has been defined. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 11...

  • Page 14: More Events Button

    The alphanumeric keypad includes the numbers 1 to 9, 0, the letters A to Z, plus special characters. (Note that the Repeater Panel has no alphanumeric keypad). Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 12...

  • Page 15: Manoeuvre And Utility Buttons

    Used to scroll to the left or to the right. Left/right Used to highlight text for copy, cut, etc. arrow buttons Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 13...

  • Page 16: Internal Buzzer

    The internal buzzer can be silenced by pressing the Mute Panel button. If the cause for making the buzzer signal sound is still present, the buzzer will resound after a predefined time. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 14...

  • Page 17: Operation Mode

     fire alarm condition (highest priority)  pre alarm condition  fault warning condition  disablement condition  test condition  supervisory condition Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 15...

  • Page 18: Alarm Levels

    If no action has been performed in this level within one hour the panel will either return to Access Level 1 or Access Level 2 depending on whether the key has been used. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 16...

  • Page 19: How Events Are Presented In The Display

    A black mark on the vertical scroolbar on the right side of the display indicates that you can scroll downwards (or upwards) to reveal more information. Note that this is not indicated on the illustration. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 17...

  • Page 20: Resounding The Internal Buzzer

     Disable Input Unit A detection zone is disabled by a command from a Disable Input Unit. Applicable to detection zones only.  Modbus Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 18...

  • Page 21: Point Disablements

    Unit. For the Point to become enabled, a DZ enable command must be issued from the Operator Panel and the Restore button on the Disable Input Unit must be pressed. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 19...

  • Page 22: Alarm Organization

    A signal from an Immediate Action detection zone, will initiate all actions immediately, without any delay. Immediate Action applies to all units that can be activated by a Immediate Action Detection Zone. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 20...

  • Page 23: Dependency Action Detection Zones

    Note that an activation of a manual call-point in a dependency action detection zone will always initiate actions (provided that the point has been set to Override Delay and Dependency, YES). Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 21...

  • Page 24: Delayed Action Detection Zones

    Acti ons will be initiated after the T1 delay period has expired. Pressing PROLONG DELAY, will terminate T1 and the delay period T2 will start. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 22...

  • Page 25: Delayed Dependency Detection Zones

    Override Delay and Dependency, YES, the Delayed Dependency detection zone will enter the Large Alarm state directly, regardless of Day or Night Mode. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 23...

  • Page 26: Solas Detection Zones

    The Silence button can be used to control the FADs independently of the Block operation. The Silence function will affect all FADs that have been activated. Autroprime also has a Resound function that will reverse the effect of Silence. 3.11.8 Silent, Small and Large Alarm – Overview A few differences can be found in national guidelines regarding alarm organization and output delays.
  • Page 27 Small Alarm Large Alarm Immediate Action Detection Zone Delayed Action Detection Zone Dependency Action Detection Zone Delayed Dependency Detection Zone SOLAS Detection Zone Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 25...

  • Page 28: About «In The Event Of

     As you proceed through the steps in the different events, the comments field will, when necessary, provide additional information and show the different options you have. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 26...

  • Page 29: In The Event Of A Fire Alarm

    When several zones are in alarm state, the More Events indicator is pulsing. To silence the internal The internal buzzer on buzzer, press the black the operator panel is Mute Panel button. turned off. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 27...
  • Page 30 (step 8). All audible indicators on Press the green Reset all panels in the system button. are turned off. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 28...
  • Page 31 Select button and at the same time scroll with the arrow up or down button (a mark Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 29...
  • Page 32 The red Remote Call indicator is lit (if a FARE output is configured and applied). To reset the system, press the green Reset button Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 30...
  • Page 33 The panel enters its idle state. The red Alarm indicator goes off. The red Remote Call indicator goes off (if a FARE output is configured and applied). Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 31...

  • Page 34: In The Event Of A Pre Alarm

    Mute Panel button. turned off. Use the arrow down (/arrow up) button and scroll to observe the points(s) in Pre Alarm state. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 32...
  • Page 35 (step 8). Press the green Reset button. Comments: The red Pre Alarm indicator goes off, and the panel enters its idle state. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 33...

  • Page 36: In The Event Of A Fire Alarm - With Alarm Delay

    Equipment is configured and applied, the red Remote Call indicator will also be pulsing. When several zones are in alarm state, the More Events indicator is pulsing. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 34...
  • Page 37 (sounders and visual Activate Outputs button indicators) that are configured to be or the activated are nearest manual call activated. point (provided that the Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 35...
  • Page 38 Comments: The red Alarm indicator goes off. The red Remote Call indicator goes off (if a FARE output is configured and applied). Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 36...

  • Page 39: In The Event Of Faults

    Mute Panel button. Use the arrow down (/arrow up) button and scroll to observe the points in Fault state I (if several). Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 37...
  • Page 40 Scroll to select the desired point, press the Function button then select Acknowledge to acknowledge the selected fault or Acknowledge all to acknowledge all Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 38...
  • Page 41 The yellow Fault indicator and all other fault indicators go off, and the panel enters its idle state (if faults have been repaired). Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 39...

  • Page 42: Supervisory

    Mute Panel button. Comments: In this example, one point is in a Supervisory state. Use the arrow down button to scroll downwards Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 40...
  • Page 43 The system can now be reset. Press the green Reset button. Comments: The yellow Supervisory indicator goes off, and the panel enters its idle state. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 41...

  • Page 44: Menu Mode

     To manually re-enter operation mode, press and hold down the Enter button for a few seconds. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 42...

  • Page 45: How To Enter Service Mode

    To enter the Service menu, use the arrow down button to scroll down and select Service, then press the Enter button Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 43...

  • Page 46: System Status

     To enter the Menu Mode from operation mode or the panel’s idle state, press and hold down the Enter button for a few seconds. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 44...
  • Page 47  Use the arrow down button to scroll down and view all information.  To return to Operation Mode, press and hold down the Enter button for a few seconds. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 45...

  • Page 48: Disabling

    Alarm Zones Points Fire Alarm Devices Disable Loop Outputs Time Span Local Outputs Loop Inputs Local Inputs Routing Equipment Loop IO Carriers Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 46...

  • Page 49: Disabling Activated / Deactivated Components

    A disable time span can be set. When the disable time span expires, the point(s) will automatically be enabled. The point(s) can also be enabled manually from the Enable Menu (or disablement window). Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 47...

  • Page 50: Disabling Fire Alarm Devices

    A disable time span can be set. When the disable time span expires, the Routing Equipment which is disabled will automatically be enabled. The equipment can also be enabled manually from the Enable Menu. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 48...

  • Page 51: Example - How To Disable A Detection Zone

     Use the arrow down button to scroll down and select Disable.  Press the Enter button  Press the Enter button Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 49...
  • Page 52 The detection zone and all points within this detection zone are disabled. After a period of time, the display will enter operation mode. The disabled detection zones are shown in the display. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 50...

  • Page 53: Enabling

    Detection Zones Alarm Zones Points Fire Alarm Devices Loop Outputs Local Outputs Loop Inputs Local Inputs Routing Equipment Loop IO Carriers Delayed Activation Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 51...

  • Page 54: Enabling Deactivated Components

    You can enable a single unit (FAD)/alarm circuit, or all units (FADs) in a selected Alarm Zone. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 52...

  • Page 55: Enabling Outputs (Loop Outputs/Local Outputs)

    13.11 Enabling Loop IO Carriers You can enable a single Loop IO Carrier, or all Loop IO Carriers. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 53...

  • Page 56: How To Execute Commands From The Enable Menu

     Press the Function button  Press Enable (you can also change the disable time span).  To accept, press the Enter button twice. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 54...

  • Page 57: Enable Delays

     Use the right arrow button to select YES or NO, then press Enter.  To confirm, press Enter once more. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 55...

  • Page 58: Show Unit Properties

    Fire Alarm Devices Loop Outputs Local Outputs Loop Inputs Local Inputs Loop IO Carriers Mimic Panels Activation Groups External Interfaces Detection Loops Operator Panels Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 56...

  • Page 59: Detection Zones

     Show Member Fire Alarm Devices  Show Neighbour Alarm Zones  Show Activating Detection Zones Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 57...

  • Page 60: Points

     Hardware Type Using the Function button after selecting a fire alarm device gives the following menu selections:  Show Connected Units Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 58...

  • Page 61: Loop Outputs

     Show (activating) Activation Groups  Show Activaing Outputs Not applicable to Fire Alarm Routing Equipment and Fault Warning Routing Equipment:  Show Connected Units Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 59...

  • Page 62: Local Outputs

     Name  Unit function Using the Function button after selecting a loop input gives the following menu selections:  Show Connected Units Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 60...

  • Page 63: Local Inputs

    Using the Function button after selecting a unit gives the following menu selections:  Show Mimic Boards  Show Mimic Inputs  Show Mimic Outputs Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 61...

  • Page 64: Activation Groups

     bits per second  word length  parity  stop bits  hardware interface (RS-232, etc.) Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 62...

  • Page 65: Tcp/Ip Port Settings (Ethernet)

     alarm  pre-alarm  fault  supervisory  startup  test Show Receivers  user name  receiver number  show (events) Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 63...

  • Page 66: Modbus Interface Settings

    VDR.  update time (default 120 minutes), determines how often the VDR receives a full update of all fires and fault statuses. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 64...

  • Page 67: Detection Loops

     loop resistance +wire 14.16 Operator Panels Using the Enter button after selecting an operator panel reveals the following properties:  name  panel type Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 65...

  • Page 68: Report

     All Log Entries  Alarms  Alarms and Activation  Faults  Enable and Disable  Test  Supervisory  Internal Errors Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 66...

  • Page 69: Show Topology

    The following is shown:  site name  site configuration version  date  operator name  description  XML format version Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 67...

  • Page 70: Service Commands

    Accessible by persons doing repair work and changing firmware. 16.2 Service Menu The Service Menu includes a great number of submenus, allowing you to do the entire configuration and service of the Autroprime Interactive Fire Detection System. This handbook deals with the testing of:  Detection Zones ...

  • Page 71: Testing Detection Zones

     Press Enter once more to confirm.  To stop the test, use the arrow button to select Stop Test, then press Enter twice. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 69...

  • Page 72: Testing Alarm Zones

     Press Enter once more to confirm.  To stop the test, use the arrow button to select Stop Test, then press Enter twice. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 70...

  • Page 73: Testing Loop Outputs

     Press Enter once more to confirm.  To stop the test, use the arrow button to select Stop Test, then press Enter twice. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 71...

  • Page 74: Local Outputs

     Press Enter once more to confirm.  To stop the test, use the arrow button to select Stop Test, then press Enter twice. Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 72...

  • Page 75: Appendix

    Appendix 17. Appendix 17.1 Menu Structure Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 73...
  • Page 76 Enter Service Mode Enter Service Mode Show Settings Show Settings (turn the page) (turn the page) 116-P-APRIMEMENUSTR/MGB, Rev. B. 2009-10-28 116-P-APRIMEMENUSTR/MGB, Rev. B. 2009-10-28 Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 74...
  • Page 77 Backup Current Configuration Backup Current Configuration Export Configuration Export Configuration Import Configuration Import Configuration 116-P-APRIMEMENUSTR/MGB, Rev. B. 2009-10-28 116-P-APRIMEMENUSTR/MGB, Rev. B. 2009-10-28 Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS Page 75...

  • Page 79: Reader's Comments

    Title: Operator's Handbook, Autroprime Interactive Fire Detection System, Ref. No.: 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28 Your information on any inaccuracies or omissions (with page reference): Please turn the page Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS...
  • Page 80 Please send this form to: Autronica Fire and Security AS N-7483 Trondheim Norway Tel: + 47 73 58 25 00 Fax: + 47 73 58 25 01 www.autronicafire.com Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS...
  • Page 81 Reader’s Comments Operator's Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME-OPERATE/FGB Rev. B, 2009-10-28, Autronica Fire and Security AS...
  • Page 82 Autronica Fire and Security is an international company, headquartered in Trondheim, one of the largest cities in Norway. The company is owned by United Technologies Corporation and employs more than 319 persons with experience in developing, manufacturing and marketing of fire safety equipment. Our products cover a broad range of systems for integrated solutions, including fire detection systems, integrated fire and gas detection systems, control and presentation systems, voice alarm systems, public address systems, emergency light systems, plus suppression systems.
