Installing I/O Modules

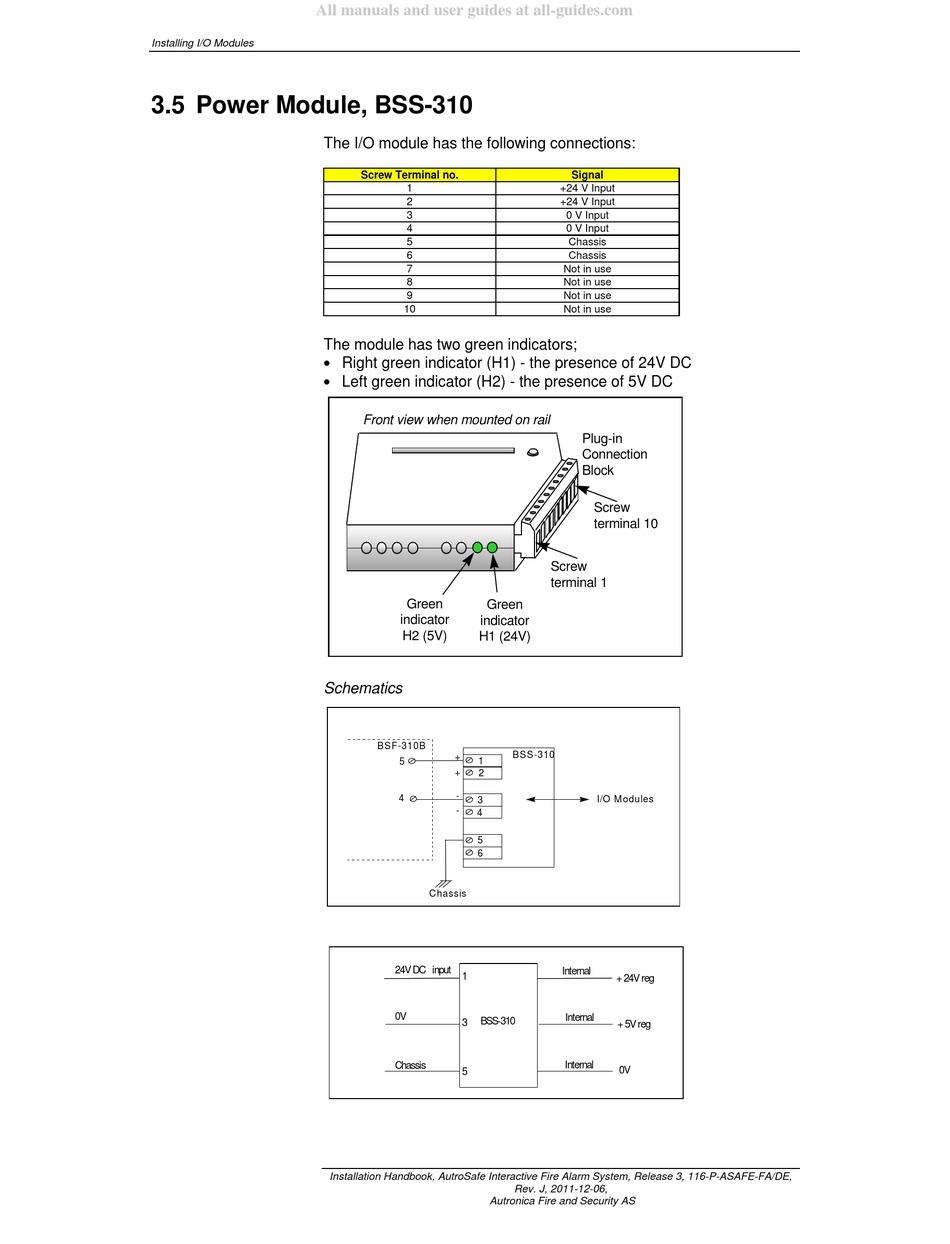

3.5 Power Module, BSS-310

The I/O module has the following connections:
The module has two green indicators;
 Right green indicator (H1) - the presence of 24V DC
 Left green indicator (H2) - the presence of 5V DC
Schematics
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,
Screw Terminal no.
1
2
3
4
5
6
7
8
9
10
Front view when mounted on rail
Green Green
indicator indicator
H2 (5V) H1 (24V)
BSF-310B
BSS-310
+
5 1
+
2
-
4
3
-
4
5
6
Chassis
24V DC input
1
0V
BSS-310
3
Chassis
5
Rev. J, 2011-12-06,
Autronica Fire and Security AS
Signal
+24 V Input
+24 V Input
0 V Input
0 V Input
Chassis
Chassis
Not in use
Not in use
Not in use
Not in use
Plug-in
Connection
Block
Screw
terminal 10
Screw
terminal 1
I/O M odules
Internal
+ 24V reg
Internal
+ 5V reg
Internal
0V
