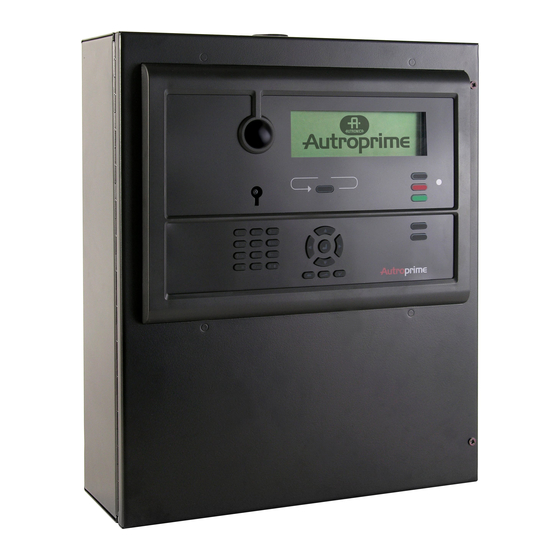

Autronica Autroprime Installation Handbook

Interactive fire detection system
Hide thumbs Also See for Autroprime:
Table of Contents

Advertisement

Quick Links

Download this manual

Installation Handbook

Autroprime Interactive Fire Detection System
. C, 2016‐29‐02

116‐P‐APRIME2‐INSTAL/DGB, Rev
, Autronica Fire And Security AS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Autroprime and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Autronica Autroprime

Summary of Contents for Autronica Autroprime

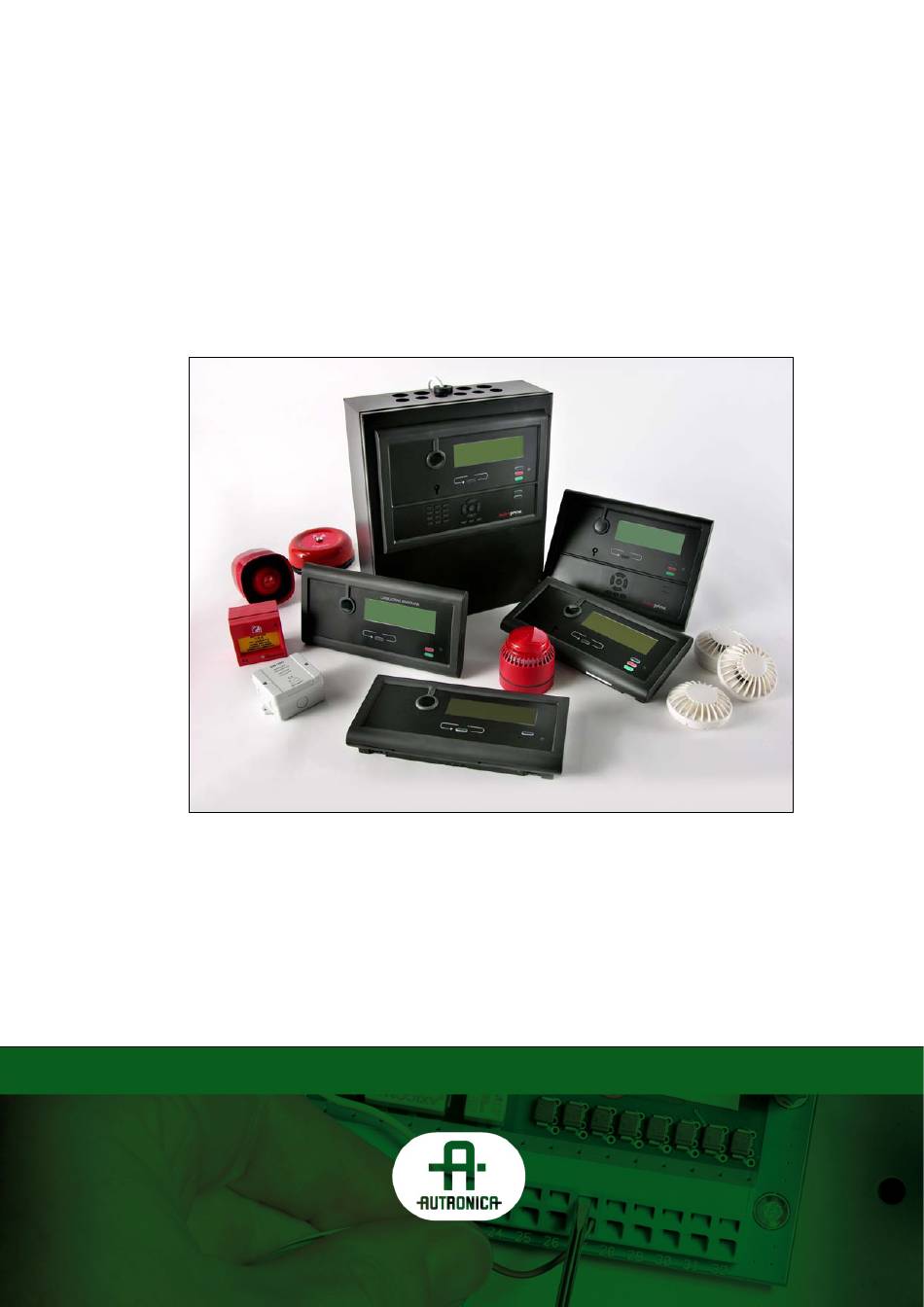

  • Page 1   Installation Handbook    Autroprime Interactive Fire Detection System  . C, 2016‐29‐02   116‐P‐APRIME2‐INSTAL/DGB, Rev , Autronica Fire And Security AS...
  • Page 2   This  publication,  or  parts  thereof,  may  not be reproduced in any form, by any  method, for any purpose.    Autronica  Fire  and  Security  AS  and  its  subsidiaries  assume  no  responsibility  for  any  errors  that  may  appear  in  the  publication,  or  for  damages  arising  from  the  information  in  it.  No ...

  • Page 3: Table Of Contents

    Table of Contents Introduction ............... 7         About the Handbook ................. 7     The Reader ..................7     Reference Documentation ..............7 Pre-installation ..............8         Location ..................... 8     Environmental Requirements ............8  ...
  • Page 4 10.2.3 I nternal Wiring ................. 56     10.3 Panel Bus Connection ............... 59     10.4 Mimic Cabinet BUR-200 ..............60 Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 4...
  • Page 5   15.6 Replacing a panel of a different type..........82 Appendix ................83         16.1 Text Foils ................... 83 Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 5...
  • Page 6 Introduction Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 6...

  • Page 7: Introduction

    116-P-BS211/CGB bs211_cgb BS-211 Datasheet; Information 116-P-BV210/CGB bv210_cgb Panel BV-210 Datasheet; Fire Brigade 116-P-BU210/CGB bu210_cgb Panel BU-210 Datasheet; Mimic Driver 116-P-BUR200/CGB bur200_cgb BUR-200 Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 7...

  • Page 8: Pre-Installation

    19’’ rack or console. For information on mounting alternatives for the maritime panel BS-200M and Mimic Cabinet BUR-200, refer to chapter 10. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 8...

  • Page 9: Panels, Brackets And Cabinet

    HxWxD (mm): 310 x 220 x 45 Fire Brigade Panel (BU-210) Mounted onto a bracket (UD-732). Dimensions (mm): HxWxD (mm): 310 x 154 x 45 Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 9...
  • Page 10 BUR-200 is delivered in a cabinet (BUR- 200M) providing 16 programmable relays. In addition, the Autroprime system provides the ”Larmlagringspanel” BU-211 specifically designed for the Swedish Market. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 10...

  • Page 11: Interconnecting Panels On The Panel Bus

    BU-210 RS-485 Panel bus BV-210 ESPA 444 Communication Protocol or BS-211 NMEA protocol for VDR systems (RS-232, RS-422/485) Modbus RTU protocol (serial/ethernet) Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 11...

  • Page 12: Mounting Instructions

     Mount the panel bracket onto the wall.  Connect all external cables to the correct terminal points. Refer to chapter Feil! Fant ikke referansekilden.. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 12...
  • Page 13  Place and centre the lower part of the panel onto the lower part of the bracket, then simply push the upper part of the panel towards the bracket until it snaps on. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS...
  • Page 14 (front view) and the adjacent wall is approximately 30 cm. For information on hole dimensions for brackets, refer to chapter 5. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 14...

  • Page 15: Addressing Panels

    If S2.7 is set to Master, X2 sets the panel bus address. If S2.7 is set as slave, X2 sets the RS-485 daisy-chain slave address. The range for the switch is 1-9. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 15...

  • Page 16: Mounting Drawings

    Control Panel BS-200) can be surface mounted onto a bracket on the wall outside the Fire Alarm Control Panel’s cabinet. 252.3 69.5 Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 16...

  • Page 17: Hole Dimensions - Mounting Bracket For Bu-210, Bu-211 And Bv-210

    Information Panel (BV-210) and “Larmlagringspanel” BU-211 are to be surface mounted onto a bracket on the wall (or mounted inside a 19’’ rack or console). Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 17...

  • Page 18: Cable Specifications

    AWG 13 (mA) (ohm) (0,5mm²) (0,75mm²) (1,0mm²) (1,5mm²) (2,5mm²) 1500 2250 3000 4500 7500 1243 1657 2486 4143 1000 1500 2500 1500 Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 18...

  • Page 19: Onboard I/O And Power

    Battery 2 x 2,5 Maximum battery cable length is 2 x 1,5 Maximum cable resistance is 0.05 ohm Mains 3 x 1,5 Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 19...

  • Page 20: Panel Bus And Serial Port

    A 25% margin should be added for safety, to ensure correct operation in case of excessive current consumption, degraded connections (ageing), etc. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 20...

  • Page 21: The Panel Bus Cable Requirements

    If high-frequency noise is expected (>10MHz), then both ends should be connected. This may be present close to radio transmitting equipment or similar. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 21...

  • Page 22: Cable Length And Power Consumption

    Pair 2 (both wires) 24V IN 1 J14/1 J13/2 0V IN 1 Pair 3 (both wires) 0V IN 1 J14/2 Not connected Pair 4 connected Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 22...
  • Page 23 J1/7 J13/4 0V IN 2 Pair 3 (both wires) 0V out 2 J1/8 Not connected Pair 4 connected See drawing, chapter 9.11. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 23...

  • Page 24: Calculation Of Power Consumption And Cable Loss

    30 loop units 0,22 0,09 0,31 Panel Bus BU-210 0,48 0,03 0,51 BV-210 0,48 0,03 0,51 Sounders Output 1, 10 0,10 0,10 Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 24...

  • Page 25: Cable Connections

    "Fire Alarm System". The isolation of the mains wiring must be of either inflammability class V2 or the wiring has to be fixed to the cabinet separated from all other cables. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 25...
  • Page 26 BS-200M). Refer to dipswitch S2.4. Switch Description S2.4 Market selection. Select between Land (BS-200) and Maritime (BS/200M) Land: S2.4 ON Maritime: S2.4 OFF Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 26...

  • Page 27: Overview Internal Cable Layout

    9.2 Overview Internal Cable Layout NOTE: For specific information on the installation and cable connections for maritime installations, refer to chapter 10. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 27...

  • Page 28: Battery Connections

    Connect the red battery cable to the plus pole (red) on the battery  on the right hand side. Black wire to minus pole - Red wire to plus pole +  Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 28...
  • Page 29 Minus pole - Sensor Interconnect the other plus pole and minus pole on the batteries  with the cable delivered with the cabinet. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 29...

  • Page 30: Connections To Power Supply / Mains Power

    (L and N). Mains Power Terminal Points (L and N) Caution Do NOT touch the potensiometer labeled V, ADJ. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 30...

  • Page 31: Fuses

    Battery connection fuse. Used to cut the connection between the battery and the charger in the event that the battery shorts out. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 31...

  • Page 32: Connection Of External Dc Power

    (230V/110V) and 24V batteries. If mains power not is available, it is possible to power the system with single or double external 24V DC. External DC power for Autroprime will not be in accordance with EN54 part 4 unless the external power supply is approved for EN54 part 4.

  • Page 33: Terminal Points Overview - Main Board

    Cable Connections 9.7 Terminal Points Overview – Main Board Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 33...

  • Page 34: Description Of Terminal Points - Main Board

    User configurable input. Monitored for Monitored open and short Input 1 circuit. 2k resistor to 0V. Activates at 910 ohm to 0V. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 34...
  • Page 35 Output 2 Same fuse Supply voltage as J1.7 for loads connected to Auxiliary1 Open collector +24V out outputs 1 and 2. Max.1A Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 35...
  • Page 36 For connection Loop2 out + Max 127 Detection detectors/ Loop2 out - loop units Detection Loop2 in + Detection Loop2 in - Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 36...

  • Page 37: Ethernet Rj45 Connector J2

    If ON, 100MBit/s, if OFF, 10MBit/s 9.8.3 Power Supply Control and Battery Temperature Measurement J3 J3- Description Vcon 1 -V 2 PSF 3 Thermistor Thermistor Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 37...

  • Page 38: Auxiliary Term Inal Block J4

    Reset to external loopers +5.0V To TX on external loopers, TTL level RS232 Connector key To RX on external loopers, TTL level RS232 Protective 0V Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 38...

  • Page 39: Auxiliary Terminal Block J6

    9.8.7 Operator Panel, Standalone, J7 J7- Description Operator Panel Output +24V Operator Panel Output 0V Operator Panel Output A Operator Panel Output B Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 39...

  • Page 40: Add-On Looper Interface J8

     Fire Alarm Routing Equipment (FARE) feedback (signal from fire brigade)  Activate all alarms  Monitored Fault Warning Routing Equipment, FWRE Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 40...

  • Page 41: User Configurable Outputs

     Silent Alarm Out  Small Alarm Out  Fire Alarm Device, FAD  Fire Alarm Routing Equipment, FARE  Fault Warning Routing Equipment, FWRE Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 41...

  • Page 42: Cable Connections Inside The Cabinet (Fire Alarm Control Panel)

    Panel connection”) is set to “J7, Operator Panel” (connector J7), i.e. the configuration is by default prepared for a standalone cabinet with integrated BS-210. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 42...

  • Page 43: Connections (J4) For A Cabinet With External Bs-210 And No External Panel Bus

    The configuration of the panel connection (Service Menu/System Settings/“Set Operator Panel connection”) must be set to “J4, Auxiliary terminal block” (connector J4) during commissioning/reconfiguration. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 43...

  • Page 44: Connections (J4) For A Cabinet With Integrated Bs-210 And External Panel Bus

    J4.9. Panel Bus In A J4.10. Panel Bus In B To external panels J4.11. Panel Bus Out A J4.12. Panel Bus Out B Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 44...

  • Page 45: Connections (J4) For A Cabinet With External Bs-210 And External Panel Bus

    The configuration of the panel connection (Service Menu/System Settings/“Set Operator Panel connection”) must be set to “J4, Auxiliary terminal block” (connector J4) during commissioning/reconfiguration. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 45...

  • Page 46: Panel Bus Connections To Bu-, Bv- And Bs-Panels

    Panel Bus connector on additional panels (viewed from rear side of panel where cables are to be connected) Panel Bus In Panel Bus Out Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 46...

  • Page 47: Overview Panel Bus

    Note that it is not required to terminate this point to an Earth connection. Connection of panels on the Panel Bus Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 47...

  • Page 48: Connections To Mimic Drivers (Bur-200)

    Do not connect the 24V wire to the terminal points used for communication (A and B terminals). This will lead to malfunction of the communication circuits. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 48...

  • Page 49: Terminal Points - Overview

    When OK: K1 is closed (between J12.1 and J12.2) When fault: K1 is open (between J12.1 and J12.2) Switch S2 Mode switch Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 49...

  • Page 50: Switch Settings

    9.12.3 Connection of Master and Slave Mimic Drivers BUR-200, Master mode (Set by DIP switch) TuBUS in RS-485 Multidrop TuBUS out 32 out 8 mon in Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 50...

  • Page 51: Connections For Panel Bus

    2 k o h m A c t i v a t i o n s w it c h I n p u t - Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 51...

  • Page 52: Ground Fault

    B) Ground fault to +24V, if there is less than 50kohm between GND and +24V. C) Ground fault to 0V, if there is less than 50kohm between GND and 0V. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 52...

  • Page 53: Maritime Installations

    10. Maritime Installations 10.1 Typical Maritime Installation – Overview The overview below shows an example of a typical system layout for a maritime installation. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 53...

  • Page 54: Fire Alarm Control Panel Bs-200M

    Emergency 110/230 VAC Earth Change-over Relay Mains Fault Emergency Fault Description External 24V + External 24V - Battery 24V + Battery 24V - Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 54...

  • Page 55: Detection Loop Connections - Extended Terminal Block

    Loop 4 out + connection Detection Max 127 Loop 4 out - detectors/ Detection loop units Loop 4 in + Detection Loop 4 in - Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 55...

  • Page 56: Internal Wiring

    1 and 2 for external power fault indication. 10.2.3.1 Cabinet with external BS-210 and no external panel Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 56...
  • Page 57 10.2.3.2 Cabinet with external BS-210 and external panel bus 10.2.3.3 Cabinet with integrated BS-210 with/without external panel bus – with mains changeover relay Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 57...
  • Page 58 Maritime Installations 10.2.3.4 Cabinet with integrated BS-210 with/without external panel bus – without mains changeover relay Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 58...

  • Page 59: Panel Bus Connection

    Panel BS-211, an Information Panel BV-210 and a BUR-200 Mimic Driver. Note that connections depend on the number of panels on the Panel Bus. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 59...

  • Page 60: Mimic Cabinet Bur-200

    2k Ohm resistors must be installed on the monitored inputs J13 and J14. A jumper must be installed between J12-1 and J12-2. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 60...

  • Page 61: External Battery Cabinet

    Maritime Installations 10.5 External Battery Cabinet Part number Description 116-234403 Battery Cab. 1x24 DC 12Ah CS 10.5.1 Dimensions s 1.5 s 1.5 Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 61...
  • Page 62 Maritime Installations 130.6 Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 62...

  • Page 63: Internal Connections In Battery Cabinet

    Maritime Installations 10.5.2 Internal Connections in Battery Cabinet Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 63...

  • Page 64: Startup

    Startup 11. Startup 11.1 Power Up Autroprime is provided to the user in a pre-configured state. In this state the panel is set to recognize detectors and other loop units connected to the detection loops and the availability of routing equipment, etc.
  • Page 65 For details on system configuration and examples on how to configure a site- specific configuration, refer to the Configuration Handbook. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 65...

  • Page 66: Switches And Indicators On The Main Board

    Also, if a restart of the panel is required , this is to be done via the Menu entry in Service mode.) Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 66...

  • Page 67: Dip-Switches For Mode Settings (S2)

    J3.3 Mains OK J3.4 Battery Temperature Battery Sense + Temperature J3.5 Battery Temperature Sensor Sense - J1.3 Charger +24V J1.4 Charger 0V Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 67...

  • Page 68: Battery Restart After Deep Discharge (S3)

    EN54 part 4 states that if the battery voltage drops below a limit specified by the manufacturer (17V) the battery shall be disconnected to prevent deep discharge. The battery is disconnected using a relay. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 68...

  • Page 69: Serial Port Settings (S4)

    (3,3VDC and 5VDC). 12.10 Regulated 24V Indicator (green) The green LED indicator is lit when the regulated 24V power is OK. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 69...

  • Page 70: Exporting / Importing Configuration Data

    The USB port is provided with a resettable fuse. output We recommend that the USB-stick that is to be used contains Autronica-related files only. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 70...

  • Page 71: Entering The Service Menu

    To enter the Service menu, use the arrow down button to scroll down and select Service, then press the Enter button Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 71...
  • Page 72 Exporting / Importing Configuration Data Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 72...

  • Page 73: Exporting Configuration Data

    To use the imported configuration, please restart the system.”  To execute the command, press the left arrow button to select Accept, then press Enter. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 73...

  • Page 74: Backup Current Configuration

     If several configurations are available, use the left/right arrow buttons to select the configuration (Current Configuration, Imported Configuration or Backup Configuration).  Press Enter. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 74...

  • Page 75: Save Configuration

     Press Enter to type a new Description then press Enter, or accept the existing one by pressing the arrow down button.  To confirm, press Enter. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 75...

  • Page 76: Changes On The Detection Loop

    “Loop Unit not responding” Acknowledge all faults. Buzzer off, indicator to steady Insert the same detector. No change Operate reset. Panel to quiescent condition. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 76...

  • Page 77: Remove A Unit And Insert Another Unit Of The Same Type

    Configure the class settings manually. In service menu, select System Settings/Save After restart of system observe quiescent condition on Configuration, then Restart System. panel. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 77...

  • Page 78: Add A New Unit To The Detection Loop

    Configuration, then Restart System. panel. From the menu check the loop topology Observe that the removed detector is no longer found in the topology. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 78...

  • Page 79: Major Changes / Clear Loop Config. - Restart System

    For further information, refer to the Configuration Handbook. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 79...

  • Page 80: Changes On The Panel Bus

    Save the configuration and restart The system restarts. the system The system starts in quiescent condition, and the new panel is operative. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 80...

  • Page 81: Removing A Panel From The Panel Bus

    The internal buzzer is turned off. Acknowledge the fault by pressing The Fault indicator goes steady. the Function button, then press the Enter button to accept. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 81...

  • Page 82: Replacing A Panel Of The Same Type But With A Different Address

    Enter to accept. Save the configuration and restart The system restarts. the system. The system starts in quiescent condition. The new panel is operative. Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 82...

  • Page 83: Appendix

    E-2717/XX-1 E-2717/XX-2 BS-200/BS-200M/BS-200L) and Repeater Panel (BU-200) Fire Brigade Panel (BU-210) E-2721/XX-1 E-2721/XX-2 Information Panel (BV-210) E-2735/XX-1 E-2735/XX-2 ”Larmlagringspanel” (BU-211) E-2736/XX-1 E-2736/XX-2 Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02, Autronica Fire and Security AS Page 83...
  • Page 85 Appendix 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02...
  • Page 86 Autronica is a leading innovator, manufacturer and supplier of fire safety equipment. Our  products ensure safety in applications on land and sea worldwide. The company is owned by  United Technologies Corporation (UTC) and employs more than 380 people with great skill and  experience in the developing, manufacturing and marketing of fire safety equipment.  Autronica Fire and Security AS is an international company based in Trondheim, a dynamic city  known as the technological hotspot of Norway.    Protecting life, environment and property                                                                Autronica Fire and Security AS ...
