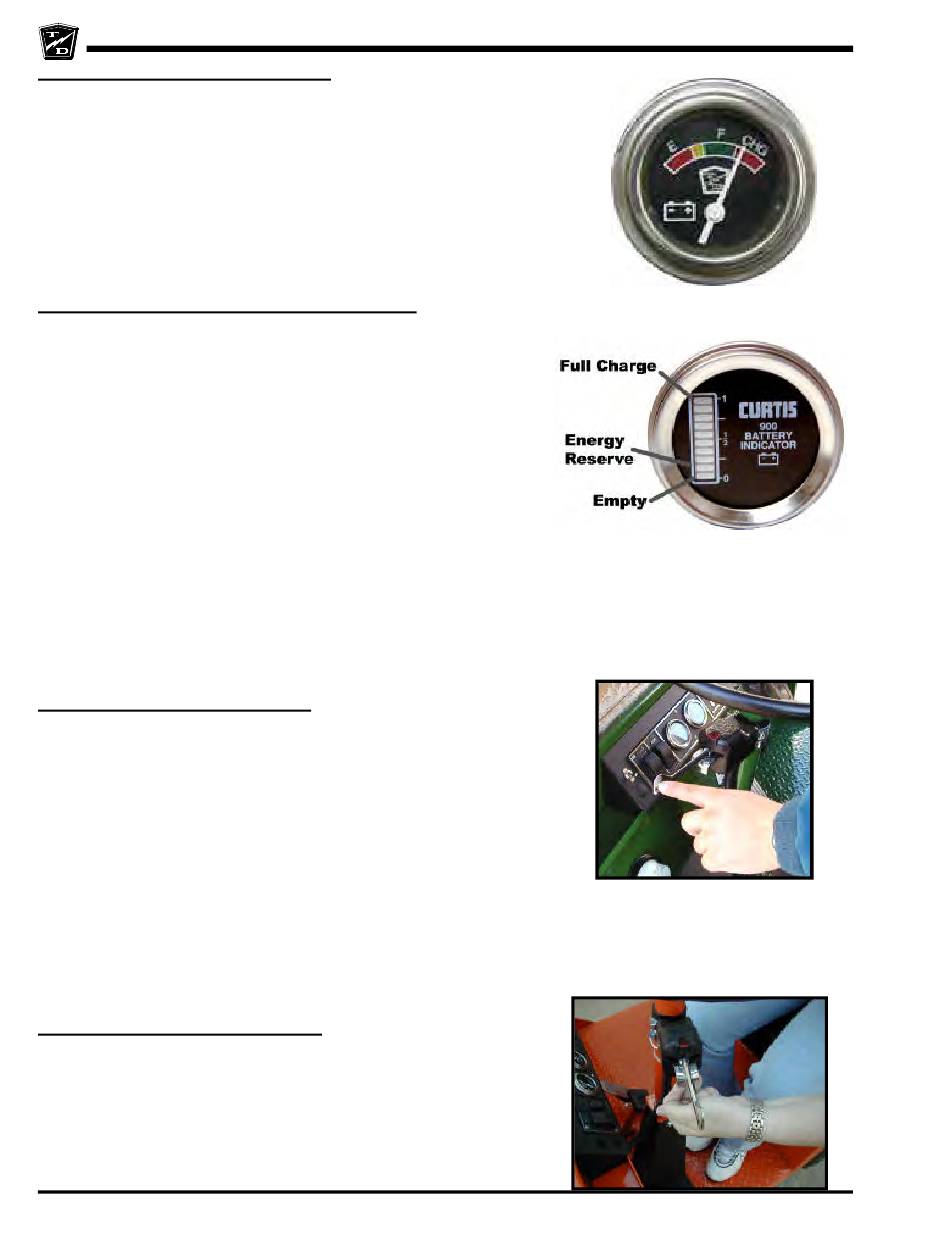

Battery Status Indicator, Analog

The battery status indicator is located to the left of the hour meter. The
normal operating range is in the green zone. Park the vehicle for a few
minutes for an accurate reading. The vehicle needs charging if it is in
the yellow zone. During and immediately following charging, the needle
will be in the red zone to the right. The needle will move through the
green zone toward the yellow zone as the batteries discharge. Charge
the batteries when the needle is in the yellow zone. If it is in the red zone
to the left, the batteries are empty and the truck should be taken out of
service and charged to avoid damaging the batteries.

Battery Status Indicator, Digital Bargraph

The battery status indicator is located to the left of the hour meter. The
battery status indicator has a LED bar graph that indicates the relative
state of charge of the battery. The top LED will light only when connected
to a fully charged battery or after completing a charging cycle. Successive
lower LED's will light as the battery charge diminishes. When the second
from the bottom LED flashes the battery energy status is in energy reserve
and should be placed on charge as soon as possible. When the two
bottom LED's are alternately flashing the batteries are empty and the
truck should be taken out of service and charged to avoid damaging the
batteries. The BSI will reset to fully charged only after a complete charge
cycle is completed. A complete charge cycle is defined as battery voltage
exceeding 2.35 volts per cell for a minimum of 6 minutes.

Directional Signals (Optional)

The turn signal lever is located on the left side of the steering column.
Push the lever forward to activate the right turn signal and pull the lever
back to activate the left turn signal.

Hazard Light Switch (Optional)

The hazard light switch is located on the left side of the steering column.
The switch is a small tab. To activate the hazard lights, pull the tab out.
To turn the hazard lights off, push forward or pull back the directional
signal lever.
