Getting Started

ID Name
1 POWER
2 STATUS
3 LED Panel
4 NAV / Control
2
ID Name
1 POWER
2 HDMI In (1-4)
3 Analog Audio / CC input
(1-4)
4 TRANSPORT / PoE

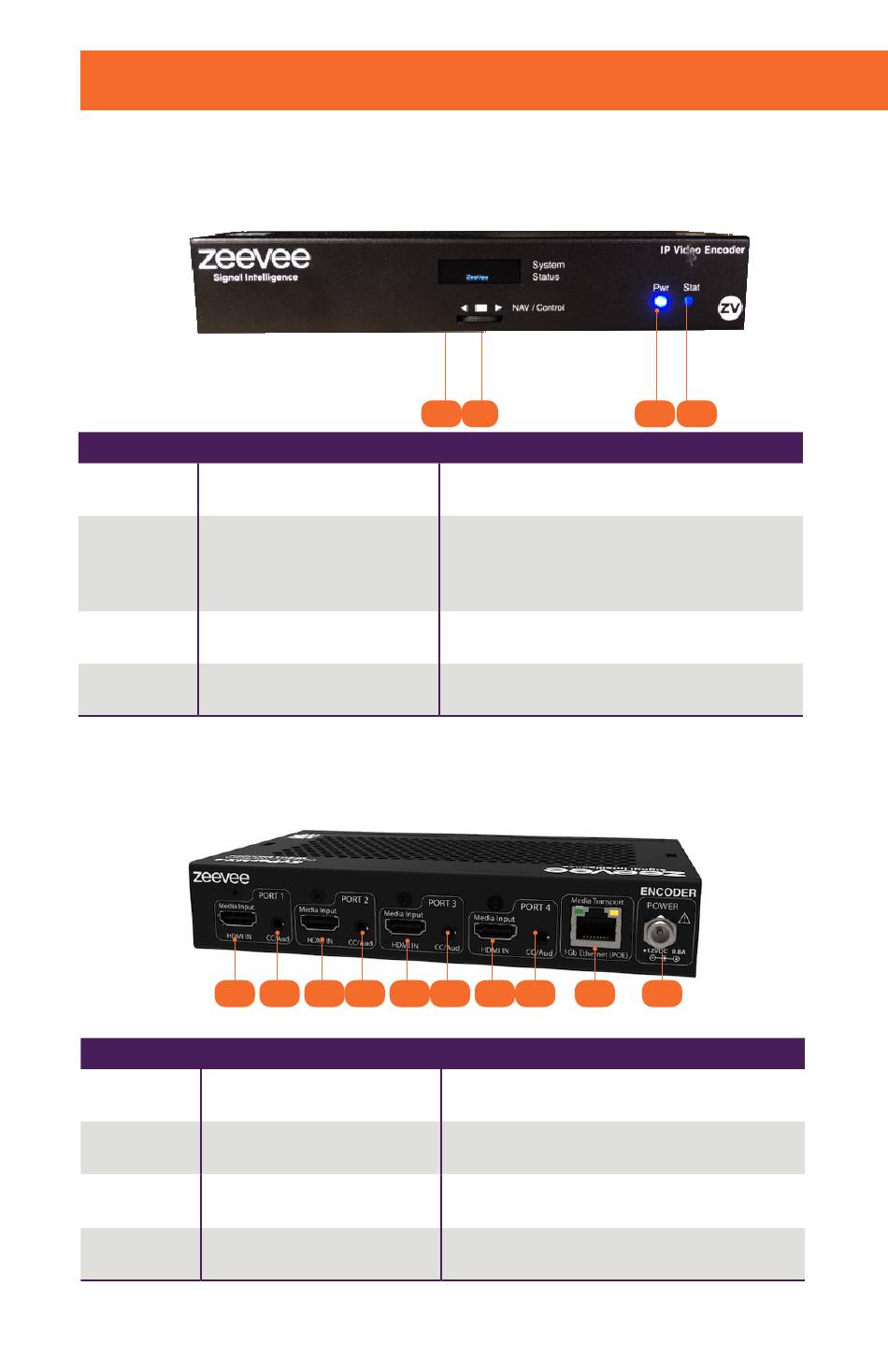

Panel Descriptions

Front View

3
Rear View (ZyPerMX4)
3 2 3 2
1
4
Description
This LED indicator glows bright blue when
the ZyPerMX4 is powered.
The LED glows bright blue when the
System Boot Process is complete and
the ZyPerMX4/MX2 unit is functioning
normally.
This LED Panel shows IP address for
config and management
This Button/Wheel is used to select
different RESET options.
3 2 3 4
Description
Connect the included 12V DC power
supply to this power receptacle.
Connect an HDMI cable from this port to
the HD video source
Connect Analog Audio or Closed Caption
source. (Optional with break out cable)
Connect an Ethernet cable from this port to
a smart switch on the Local Area Network.
1 2
1
