ZeeVee ZyPerMX2 User Manual page 18

When in HLS mode, the ZyPerMX4/MX2 will output both a High Bitrate stream and a Low
Bitrate stream simultaneously using the target bitrates specified. The High Bitrate stream
will always be output at the same resolution and frame rate as the orignal input. The Low
Bitrate stream will put out a reduced resolution stream. The resolution of this stream can be
selected using the "Low Resolution" option.

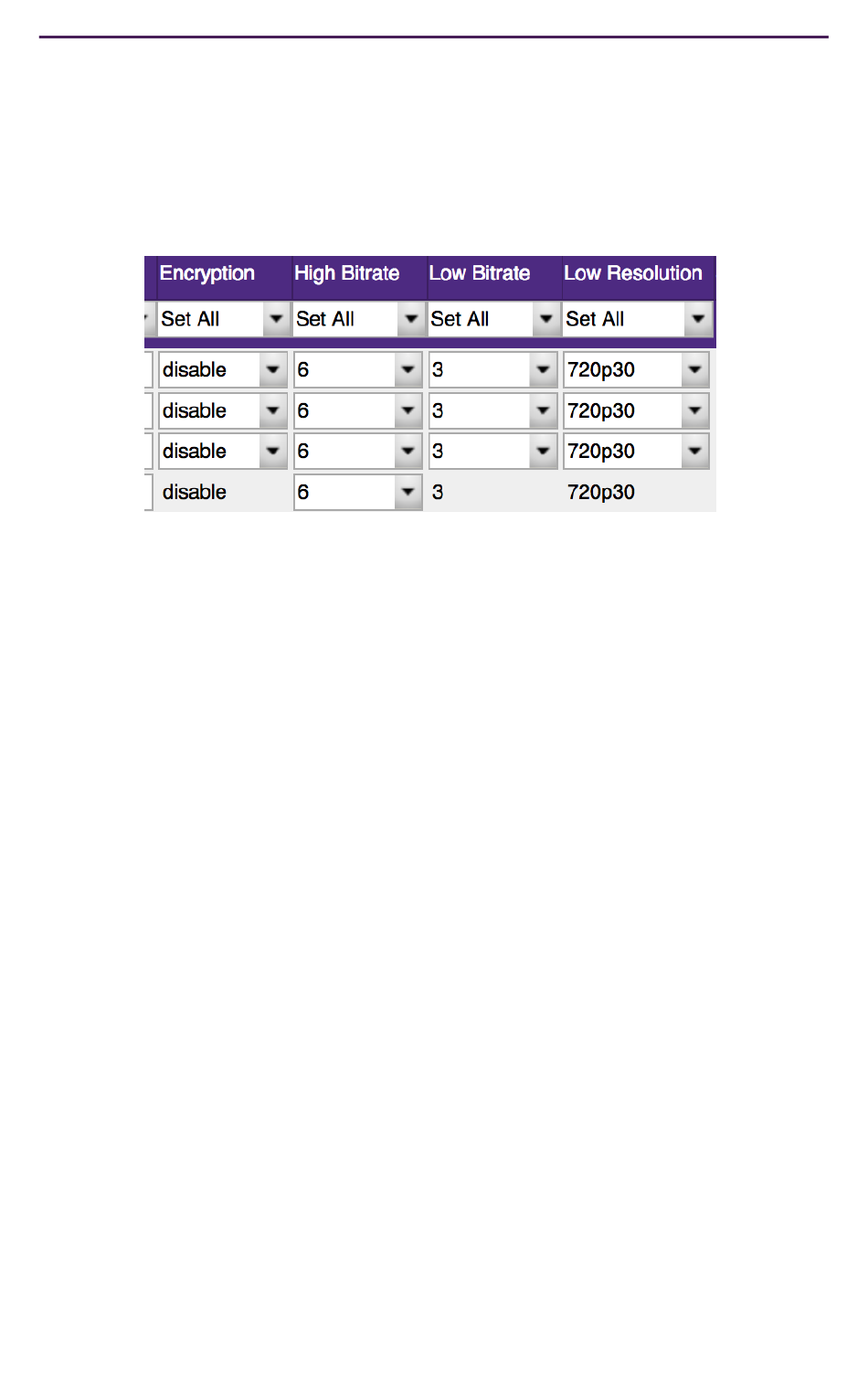

Click the Low Resolution drop-down list and select the desired resolution of the Low Bitrate
HLS stream.
Note: To view an HLS stream, point a browser to the following address:
http://<IP_ADDRESS>/media/<name>.m3u8
Example: http://192.168.1.15/media/MYTV-1.m3u8
This will show the best stream that the HLS player can handle. Either the high or low bitrate.
Note that HLS URLs are case sensitive.
You can manually select either the low or high bitrate steam in the following manner.
http://<IP_ADDRESS>/media/<name><High>.m3u8
http://<IP_ADDRESS>/media/<name><Low>.m3u8
Example: http://192.168.1.15/media/MYTV-1High.m3u8
Example: http://192.168.1.15/media/MYTV-1Low.m3u8
High Bitrate
Low Bitrate
14
Basic Operation
