ZvBox
HD 720p60 MPEG2 Encoder / QAM Modulator
Get Going Guide
®
170

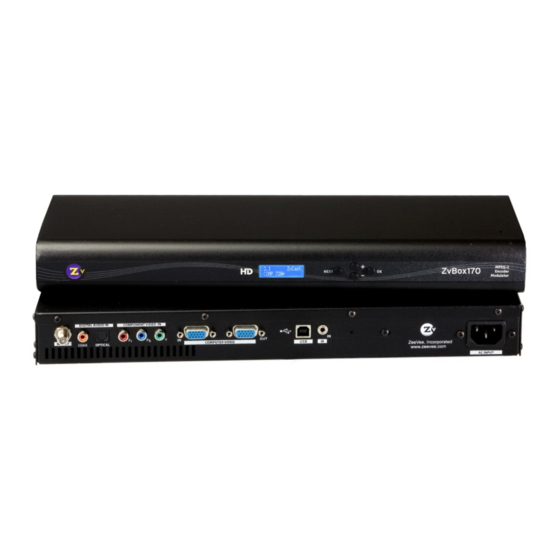

ZvBox® 170 is a 1U combination HD MPEG 2 Encoder and
frequency agile QAM Modulator. It allows you to convert
any HD video source, Component or RGB (VGA), in real‐
time and very high quality into an HDTV cable channel.
This channel is placed onto standard COAX wiring, where
it can be combined with up to 134 other HDTV channels
and distributed over an entire premise.
This guide will take you through a typical installation
procedure, and will have you broadcasting your own
HDTV channel in less than 10 minutes. For additional
assistance or more complex installations, please refer to
the Zv Support page at www.zeevee.com, where you will
find answers to frequently asked questions, and helpful
tips from ZeeVee experts. If you still cannot find the
answers you need, our technical support hotline at 877‐
5ZEEVEE (877‐593‐3833) is here to help.
Advertisement
Table of Contents
Related Manuals for ZeeVee ZvBox 170
Summary of Contents for ZeeVee ZvBox 170
- Page 1 ® ZvBox 170 HD 720p60 MPEG2 Encoder / QAM Modulator Get Going Guide ZvBox® 170 is a 1U combination HD MPEG 2 Encoder and frequency agile QAM Modulator. It allows you to convert any HD video source, Component or RGB (VGA), in real‐ time and very high quality into an HDTV cable channel. This channel is placed onto standard COAX wiring, where it can be combined with up to 134 other HDTV channels and distributed over an entire premise. This guide will take you through a typical installation procedure, and will have you broadcasting your own HDTV channel in less than 10 minutes. For additional assistance or more complex installations, please refer to the Zv Support page at www.zeevee.com, where you will find answers to frequently asked questions, and helpful tips from ZeeVee experts. If you still cannot find the answers you need, our technical support hotline at 877‐ 5ZEEVEE (877‐593‐3833) is here to help. ...
-
Page 2: Fcc Statement
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS Important Safety Instructions. Save These Instructions. WARNING: When using electronic products, basic precautions should always be followed, including: Keep these instructions. 10. Protect the power cord from being walked on or Heed all warnings. pinched, particularly at plugs, convenience receptacles, Follow all instructions. and the point where they exit from the apparatus. Do not use this apparatus near water. 11. Unplug the apparatus during lightning storms or when Clean only with dry cloth. unused for long periods of time. Do not block any ventilation openings. Install in 12. Only use attachments/accessories specified by the accordance with the manufacturer’s instructions. manufacturer. Do not install near any heat sources such as 13. Refer all servicing to qualified service personnel. radiators, heat registers, stoves, or other apparatus Servicing is required when the apparatus has been (including amplifiers) that produce heat. damaged in any way, such as power‐supply cord or Do not defeat the safety purpose of the polarized or plug is damaged, liquid has been spilled or objects grounding‐type plug. A polarized plug has two blades have fallen into the apparatus, the apparatus has been with one wider than the other. A grounding type plug exposed to rain or moisture, does not operate has two blades and a third grounding prong. The normally, or has been dropped. wide blade or the third prong is provided for your 14. - Page 3 What’ ’s in the bo ox: ZvBox® 170 ( (ZP170‐NA) User Manua AC Po ower Cord SB Cable et Going Guid ck Mounts le of Conte ents Basic Insta allation ...................... 4 Configurin ng ZvBox® 17 0 ..................
-
Page 4: Basic Installation
Basic Installation Factory default settings in the product allow ZvBox® 170 to broadcast a component HD source with analog audio on channel 2.1 over coax cabling, for reception at connected HDTVs. 1. Plug ZvBox® 170 power cord into AC outlet. 2. Connect Component Video output of HD source to Component Video Input of ZvBox® 170. 3. Connect SPDIF audio output of HD source to Digital Audio Input of ZvBox® 170. 4. Connect coaxial output of ZvBox® 170 to HDTV RF Input. 5. Tune HDTV to channel 2.1. ® ZvBox 170 Get Going Guide Page 4 v.1.0... - Page 5 Configuring ZvBox 170 ® In most cases, ZvBox® 170 can be configured using the front panel buttons. Configuration is simple, and usually just involves setting the RF channel on which the ZvBox® will broadcast. Settings are stored in ZvBox® and not lost on power‐down. An example for changing the RF broadcast channel is shown below. Note – make sure the HDTV connected to your ZvBox® is set to Cable mode, vs. Antenna or Over‐the‐air mode. ZvBox® broadcasts using QAM – the same standard used by cable companies. 1. Press the Next button until SET CHANNEL appears in the display 2. Press the + or – key until you see the channel number you want to use – for example 7. 3. Press the OK button That’s it! In this example, your ZvBox® would be broadcasting on RF channel 7, and would be tuned in at your HDTV by entering 7.1. Note – sometimes a channel scan is required at the HDTV before the new channel is recognized. For information on customizing ZvBox® with alternative settings, go to www.zeevee.com/support and view or download the ZvBox® 170 Configuration Manual. ® ZvBox 170 Get Going Guide Page 5 v.1.0...
- Page 6 ZvBox 170 Front Panel ® Item Description Function 1 Status Display High‐visibility character display for setting and displaying configuration including channel, power, and label configuration; input selection; video output parameters; scanning/system status. 2 Next Button For scrolling between functions. 3 +/‐ Buttons For scrolling between options within a function. 4 OK Button For selecting functions and options. ZvBox 170 Back Panel ® Item Description Function 1 Coax output Outputs encoded video as QAM 256 channel 2 ...
-
Page 7: Contact Zeevee
Contact ZeeVee For support, repairs and warranty service: 877‐5ZEEVEE (877‐593‐3833) Warranty Limited One Year Warranty ZeeVee warrants your ZvBox® 170 (ZP170‐NA) against defects in materials and workmanship for a period of one year from the date of purchase. Visit www.zeevee.com for complete warranty details. To Get Warranty Service Warranty service will be provided by ZeeVee. If you believe you need service for your ZvBox® 170 (ZP170‐NA), please contact ZeeVee directly by calling ZeeVee Support at (877) 593‐3833. If it is determined that the product needs to be returned for service or exchange, you will receive a Return Material Authorization (“RMA”) number. Our agents will help you through the process through which you can return the product. ZeeVee is not responsible for Customer products received without an RMA number and may reject such products. To Get Out‐Of‐Warranty Service To obtain out‐of‐warranty service for your ZvBox® 170 (ZP170‐NA), please contact ZeeVee by calling ZeeVee Support at (877) 593‐3833 for information on the possibility of and any costs for repair or replacement of out‐of‐warranty products. No agent, company, dealer, distributor, or person is authorized to change, modify, or extend the terms of these warranties in any manner. ® ZvBox 170 Get Going Guide Page 7 v.1.0... - Page 8 zeevee.com ...
