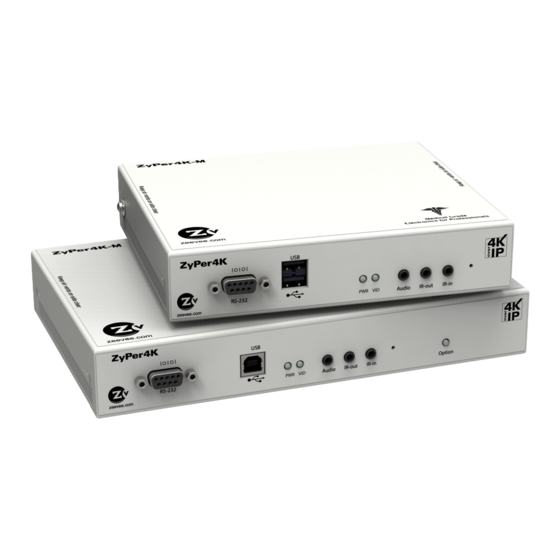

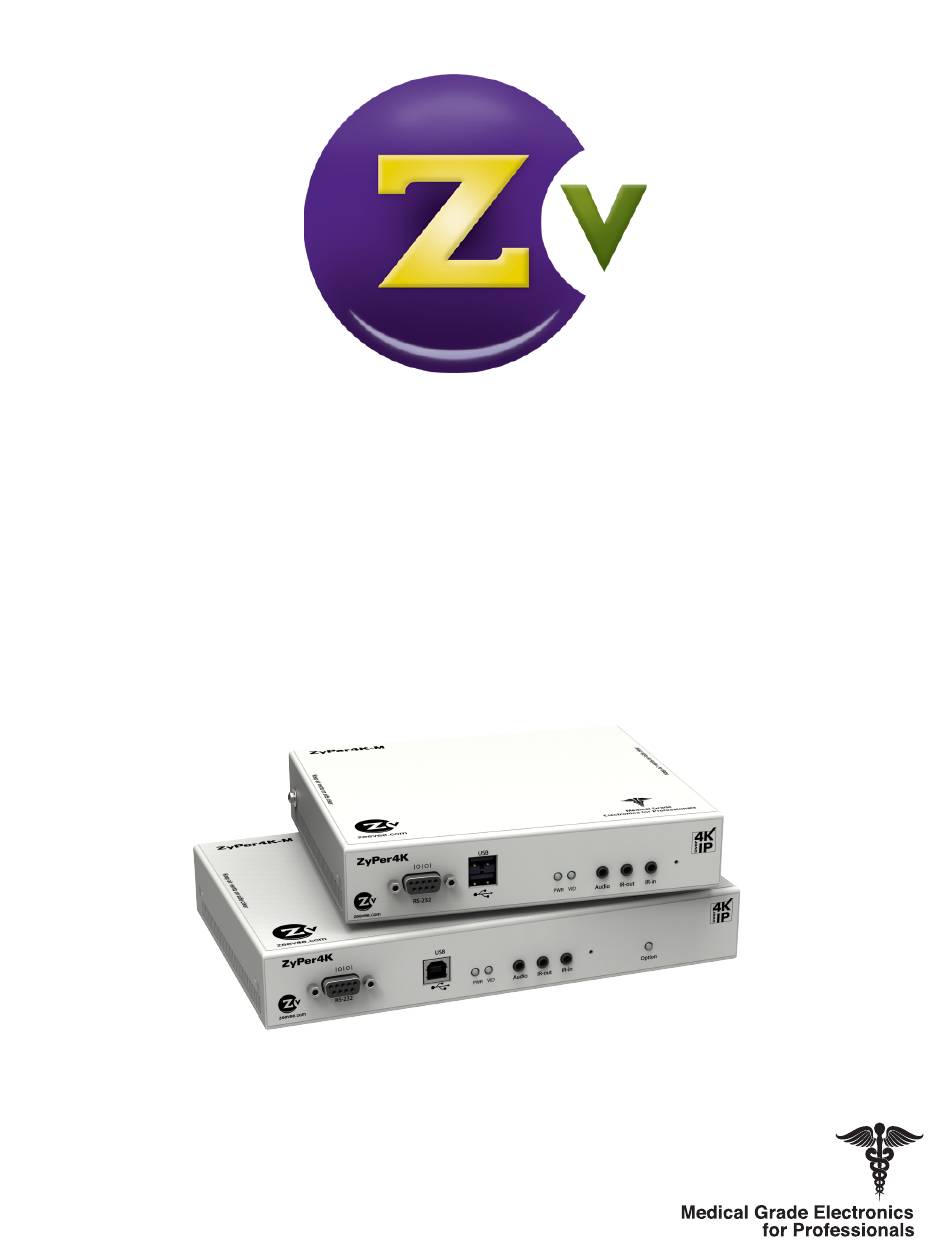

- Page 1 ZyPer4K-M GENERATION 3 IP VIDEO DISTRIBUTION SYSTEM MEDICAL GRADE User Manual REVISION 2.5 ...
- Page 2 RF coax, fiber, or copper ethernet. Established in 2007, ZeeVee has been manufacturing industry-leading products while operating the company responsibly in compliance with the strictest levels of regulatory and environmental requirements.
-
Page 3: Table Of Contents
Cleaning ..................... Encoder, Decoder and ZyPerMP Unit Cleaning Procedures ..ZyPerMP Specific Cleaning Procedure ........... Important Siting and Application Considerations ........ ZyPer4K-M Equipment Type and Uses ............ZyPer4K-M Intended Users and Qualifications .......... Installation Environment ................Mounting Options ................Mounting Brackets ................ - Page 4 User Manual Revision 2.5 Ventilation ..................Water and moisture ................ Operational and Overall LifeSpan of Equipment ......Data Connections ..................AC Mains Connection ................AC Power Cord ................Run-Time Operation ................ Equipotential Referencing ................Installer-Required Action ..............Peripheral Connections ................Shutdown and Decommissioning ............
-
Page 5: System Description
User Manual Revision 2.5 System Description The ZyPer4K-M series of products from ZeeVee provide a means for transmitting and receiving audio-visual information across a standard IP network with outstanding quality at very low latencies. “ZyPer4K-M”, “Z4Kxxx”, and “Z4K Equipment” are terms which are used interchangeably in this document to refer to the ZyPer4K Family of Medical Grade Video Distribution Equipment offered by ZeeVee. -
Page 6: System Elements
ZyPer4K-M User Manual Revision 2.5 System Elements Encoder Function The function of the ZyPer4K Encoder Device (Encoder) is to accept audio and video data over a variety of interface types, and translate that data to a format suitable for transmission over a standard 10G Ethernet network. -
Page 7: Decoder Function
ZyPer4K-M User Manual Revision 2.5 HDMI Fiber HD-SDI Fiber DisplayPort Fiber Analog Fiber Z4KMEDENCF3 Z4KMEDSDIENCF3 Z4KMEDDPENCF3 Z4KMEDANLENCF3 HDMI Fiber with USB HD-SDI Fiber w/USB DisplayPort Fiber w/USB Analog Fiber w/USB Z4KMEDENCF3U Z4KMEDSDIENCF3U Z4KMEDDPENCF3U Z4KMEDANLENCF3U HDMI Copper HD-SDI Copper DisplayPort Copper... -
Page 8: Management Platform
In point-to-point applications every element is essential. There is only one Encoder and one Decoder and they both must be operational for the system to operate at all. The ZyPer4K-M Encoder and Decoder will detect this special case and self-configure appropriately. -
Page 9: Detailed Interface Descriptions
The function of the encoder is to accept raw video images, encode, encrypt and format them for transmissions. There are several different variations based on the user’s desired input, media type and interface description. Enclosure variants There are two different sizes of the ZyPer4K-M Encoder unit enclosure. Input Function Box Size HDMI Input... -
Page 10: Common Ports
ZyPer4K-M User Manual Revision 2.5 Common Ports The following ports are common to all encoders, regardless of the options or enclosure variant Port Name Index Definition Power 12VDC from supply. Center Post is + Ring is - Utility 10/100/1000Base-T Ethernet port. Used for general purpose Network device attachment to network. - Page 11 ZyPer4K-M User Manual Revision 2.5 Port Name Index Definition RS 232 Port RS232 Control Port for sending and receiving side-band serial traffic to/from decoders as directed by Maestro-Z management LED PWR LED illuminated when unit is powered LED VID LED Illuminated when active video is being processed Audio Audio Input Jack.
-
Page 12: Optional Ports - 10G Ethernet
ZyPer4K-M User Manual Revision 2.5 Optional Ports - 10G Ethernet The customer may chose which type of Ethernet interface is appropriate for the application being addressed. Only one is present at a time and either is available regardless of the enclosure size. -
Page 13: Optional Ports - Usb
ZyPer4K-M User Manual Revision 2.5 Optional Ports - USB ZyPer4K-M Encoder units are available with or without a USB port. Port Name Index Definition USB 2.0 Type B port for use USB option is ordered and installed Configuration and routing of USB handled by the Maestro-Z configuration. -
Page 14: Extended Input Options
ZyPer4K-M User Manual Revision 2.5 Extended Input Options All Encoder units contain a single HDMI 2.0 input port. Optionally, units may be ordered with an “extended” input. Units so ordered will reside in a somewhat larger enclosure. Available interface types are... - Page 15 ZyPer4K-M User Manual Revision 2.5 Two different variants of the ZeeVee Hydra breakout cable may be purchased separately for use in the specific user application VGA BREAKOUT • HD-15 supporting numerous resolutions up to 1900x1600 • Analog audio input carrying stereo L/R line-level audio for transport.
-
Page 16: Decoder
User Manual Revision 2.5 Decoder The function of the ZyPer4K-M Decoder is to accept a 10G IP feed containing the video information to be displayed. It decrypts, decodes and formats the video and audio information for display on the attached viewing device. There are several different variations based on the user’s desired media type and USB options. - Page 17 ZyPer4K-M User Manual Revision 2.5 Port Name Index Definition HDMI Output HDMI 2.0 Output port. Capable of up to 4K60 w/HDCP2.2 encryption. Port Name Index Definition RS 232 Port RS232 Control Port for sending and receiving side-band serial traffic to/from...
-
Page 18: Optional Ports: 10G Ethernet
ZyPer4K-M User Manual Revision 2.5 Optional Ports: 10G Ethernet Port Name Index Definition 10G Fiber 10 Gigabit Ethernet Connection. Uses standard 10G SFP devices. 10G Copper 10G Ethernet over Cat6a or better cabling. RJ45 User Manual Page... -
Page 19: Optional Ports: Usb
ZyPer4K-M User Manual Revision 2.5 Optional Ports: USB The ZyPer4K-M Decoder device can be ordered with optional USB connectivity. Shown to the left is a unit with the USB option (top) and without the USB option (bottom) installed. This is a build-time option and is not retrofittable to the product. -
Page 20: Setting Up Zyper4K In A Point To Point Environment
ZyPer4K-M User Manual Revision 2.5 Setting Up ZyPer4K in a Point to Point Environment A point to point, or one to one environment involves connecting one source directly to one display. A network switch is not needed in this basic configuration. This environment also does not require configuration through the ZyPer4K management software and is a true “plug and... -
Page 21: Setting Up Zyper4K In Many To Many Environment
Please consult the ZyPer Management Platform User Manual for additional details on switching/routing video from sources to displays. Please consult the ZyPer4K Network Requirements and Security Considerations document for details on Network switch requirements. Both documents are available on the ZeeVee website: https://www.zeevee.com/documentation-all-products User Manual Page... -
Page 22: General Safety And Care Instructions
ZyPer4K-M User Manual Revision 2.5 General Safety and Care Instructions Safety WARNING: When using electronic products, basic precautions should always be followed, including: • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. - Page 23 WARNING: Do not open the box or in any way expose the internal circuitry. WARNING: There are no user-serviceable parts inside the unit. Opening or damaging the ZyPer4K-M unit in any way voids the warranty and immediately nullifies any assertion of regulatory compliance made by ZeeVee.
-
Page 24: Cleaning
ZyPer4K-M User Manual Revision 2.5 Cleaning Encoder, Decoder and ZyPerMP Unit Cleaning Procedures Before cleaning: 1. Switch off or fully disconnect the AC power from the external supply unit connector to the ZyPer unit. 2. If the state of the AC power cannot be established, disconnect the DC input plug from the ZyPer unit before proceeding. -
Page 25: Zypermp Specific Cleaning Procedure
ZyPer4K-M User Manual Revision 2.5 The ZyPer4K unit is fairly tolerant to cleaning with moistened cleaning cloths, but the unit is not fluid tight. Care should be taken to not spray cleaner directly on to the unit or into the vents to avoid liquid ingress and damage to the internal electronics. -
Page 26: Important Siting And Application Considerations
• Equipment is intended for the sophisticated display and presentation of decoded information that has been distributed by companion ZyPer4K-M equipment. • Equipment is intended to be controlled from a central control node (the ZyPerMP) which ties in to a customer control system for sophisticated presentation and management of the information flow and direction. -
Page 27: Zyper4K-M Intended Users And Qualifications
Requirements for Users and Operators: • Users of the ZyPer4K-M equipment shall have been trained by a rated and fluent in the operation of the equipment installed in a given site. Since the ZyPer4K-M is often controlled by a secondary control system, familiarity and training on the third-party system is a requirement to successfully operate the ZyPer4K-M equipment. -
Page 28: Installation Environment
Mounting Brackets ZyPer4K-M equipment may be used horizontally and simply sit upon the rubber feet that are factory installed. It is recognized that in some sites a more rigid and secure installation is desired. - Page 29 When using the L-Brackets, first remove the screws and rubber feet on the bottom of the unit. Retain the screws as they will be used to affix the L-Brackets to the ZyPer4K-M unit body. The rubber feet are not used when mounting with the L-Brackets.
- Page 30 The installer must provide the appropriate hardware to mount the L-Brackets to whatever surface is used. Drywall: When mounting to drywall, ZeeVee recommends use of Drywall anchors for #6 up to #10 hardware and washers appropriate to the size screw utilized. The recommended sequence of hardware would be;...
-
Page 31: Ventilation
If the equipment is mounted in an enclosed cabinet, it is the job of the installer to insure that within the cabinet or enclosure the ZyPer4K-M equipment does not experience local temperatures in excess of that specified in the Detailed Specifications portion of this document. -
Page 32: Data Connections
ZyPer4K-M User Manual Revision 2.5 Data Connections Connections must be made to the unit and the unit mounted in the overall installation prior to application of power, operational checkout and use. Network Connections: Data is carried amongst and between units over the attached Ethernet infrastructure. - Page 33 ZyPer4K-M User Manual Revision 2.5 When a valid video source is being received by an Encoder, the “VID” LED on the front panel will be illuminated. Video Input Connections (decoder): Decoders support only a single type of output; HDMI 2.0 supporting HDCP 2.2...
-
Page 34: Ac Mains Connection
ZyPer4K-M User Manual Revision 2.5 AC Mains Connection The ZyPer4K-M Encoder and Decoder units are powered through an external medical-grade AC/DC converter unit. The Encoder and Decoder units must be powered and connected using the supplied medical grade external AC/DC converter. The voltage supplied to the Encoder and Decoder units from the external supply is 12VDC at less than 2.0A... -
Page 35: Ac Power Cord
ZyPer4K-M User Manual Revision 2.5 Should the ZyPer4K equipment be unused for an extended period of time it should be disconnected from the AC mains at the AC inlet to the external AC/DC converter in order to protect the equipment from transient over-voltage conditions. -
Page 36: Run-Time Operation
Logical connections between Encoders, Decoders, and display configuration and orientation, and run-time statistical information are all handled by the ZyPer Management Platform. The ZyPer4K-M Encoder and Decoder units are the execution elements of the overall system and can “free-run” once configured and set-up by the ZyPer Management Platform. ... -
Page 37: Equipotential Referencing
The ZyPer4K-M devices all have a universal stud on the rear of the unit near the power connector for this purpose. Two nuts are also provided to allow for a “locking connection”. This stud is sized and threaded for #8 hardware. -
Page 38: Installer-Required Action
High-quality wire of 16 gauge or heavier is recommended by ZeeVee, It is the responsibility of the installer to determine the needs of the specific installation. User Manual Page... -
Page 39: Peripheral Connections
ZyPer4K-M User Manual Revision 2.5 Peripheral Connections Any external connection with attached peripherals must follow the requirements of clause 16 of IEC60601-1 3rd ed. or Table BBB.201 of IEC 60601-1-1 for medical electrical systems. All screws and mechanisms that guarantee positive locking of attached cables shall be employed. -
Page 40: Shutdown And Decommissioning
ZyPer4K-M User Manual Revision 2.5 Shutdown and Decommissioning Power Off Neither the Encoder or Decoder devices require any special preparation for powering down. There are three methods to shut off a unit. Any of the methods may be used: 1. Remove the DC connector from the rear of the Encoder or decoder device. The Encoder or Decoder device will be unpowered at this point, but the external power supply itself will still be energized, so care should be paid to the handling of the low voltage DC power lead. -
Page 41: Responsibility And Stewardship
Product Lines: ZyPer Products supplied by ZeeVee, Inc. Be advised that based on the information available to ZeeVee from our component and sub- assembly providers, the product lines listed above do not contain as intentional additives, any of the referenced materials at the levels indicated, as referenced in the subject EU directives. To the best of our knowledge, none of these materials are generated during production and the supplied component parts of the ZeeVee products do not contain the listed materials. - Page 42 This information is believed to be accurate and refers to the laws, regulations and products at the date of issue. However, ZeeVee makes no express or implied representations or warranties with respect to the information contained herein. It is the responsibility of our customers to determine that their use of ZeeVee products is safe, lawful, and technically suitable for their applications.
-
Page 43: Fcc Compliance Statement
User Manual Revision 2.5 FCC Compliance Statement The ZyPer4K-M family of devices has been tested and found to comply with the limits for Class A Digital Devices pursuant to Part 15 of the FCC Rules. Operation is subject to the following conditions: 1) these devices may not cause harmful interference, and 2) these devices must accept any interference received including interference that may cause undesired operation. -
Page 44: Emc Information
The supplied Power Supply (AC/DC Conversion unit) should be used. Any other AC/DC supply has not been tested or verified to perform at the levels indicated in this manual. Media cables are not provided and the ZyPer4K-M devices are generally fairly tolerant of different types and manufacture styles. -
Page 45: Electromagnetic Immunity
3 V/m Radiated RF 61000-4-3 PASS equipment close to intentional 80 MHz to 2.5 GHz RF radiator. Contact ZeeVee for more details. Electrical fast 61000-4-4 ± 2kV for power supply lines PASS Expected power quality typical transient/burst ±... -
Page 46: Device Technical Specifications
ZyPer4K-M User Manual Revision 2.5 Device Technical Specifications Encoder and Decoder HDMI Video Specifications All encoders and decoders have one exposed HDMI port. It is an input on the encoder and an output on the decoder. All the parameters in terms of the formats of video and audio carried are the same for either. -
Page 47: Encoder Extended Video Input Options
ZyPer4K-M User Manual Revision 2.5 Encoder Extended Video Input Options DisplayPort Input Option The ZyPer4K-M Encoder may be purchased with the “DisplayPort Input Option” pre-installed at the factory. Type Parameter DisplayPort Option Single DisplayPort receptacle support v1.3 of the DisplayPort standard. - Page 48 ZyPer4K-M User Manual Revision 2.5 “HDSDI” Option The ZyPer4K-M Encoder can be purchased with the commonly referred-to “HDSDI Option”. HDSDI in this context is a misnomer as the option card itself operates up to the 3G-SDI level. A common industry “mis-application” is to refer to anything as “HDSDI”...
- Page 49 13-pin DIN connector. Supports 480i and 576i resolutions (NTSC and PAL) YPrPb Standard Component Video input provided through Red, Green and Blue RCA connectors spawned by the ZeeVee Hydra Cable connected to the 13-Pin DIN connector. 640x480...
- Page 50 VGA version of the ZeeVee Hydra cable connected to the 13-Pin DIN jack. Digital Audio When S/PDIF connection of the ZeeVee Hydra analog breakout cable is employed, received audio can be 2-channels of LPCM, or digitally encoded. If digitally encoded audio is received, it will be passed through unmodified through the Z4K system to the decoders (see HDMI Port...
- Page 51 ZyPer4K-M User Manual Revision 2.5 User Manual Page...
- Page 52 ZyPer4K-M User Manual Revision 2.5 User Manual Page...
-
Page 53: Ethernet Options
ZyPer4K-M User Manual Revision 2.5 Ethernet Options The ZyPer4M-M Encoder or Decoder can me ordered with a single 10G bulk media port that is either Fiber Ethernet or Copper Ethernet. Only one of those options is supported at a given time. -
Page 54: Other Ports
3.5mm L/R analog audio jack 2-channel L/R stereo output ✓ ✓ IR Input 3.5mm plug for IR Capture Dongle (ZeeVee Model#: Z4KIRRX ) ** capture dongle sold separately ✓ ✓ IR Output 3.5mm plug for IR Transmitter (ZeeVee Model#: Z4KIRTX) ** transmit dongle sold separately Analog Audio Jack supports a 3.5mm PC-audio type plug... -
Page 55: Physical And Environmental
Parameter A/C Adapter 100-1240VAC 50-60Hz 0.7-0.45A draw on AC Mains Output Max: 12VDC 2.5A ZyPer4K-M unit power 12VDC at 1.2A max 12W nominal (Encoder without extended media option) consumption 12VDC at 1.6A max 16W nominal (Encoder with extended media option) 12VDC at 1.2A max 12W nominal (Decoder) -
Page 56: User Manual Revision Control
ZyPer4K-M User Manual Revision 2.5 User Manual Revision Control Change History: Date Description Editor Revision Number March 14, 2017 Initial Release May 24, 2017 Updates based on BV review of medical certification submission package. June 14, 2017 Updates based on ISO14971 review. Updates for enhanced EP stud addition. -
Page 57: Disclaimers
ZeeVee hardware designs are property of ZeeVee. Components, sub-assemblies, and methods utilized in the designs are free of any encumbrances or appropriate licenses and rights have been obtained by ZeeVee for the use in the described products in the intended manner.
