Getting Started

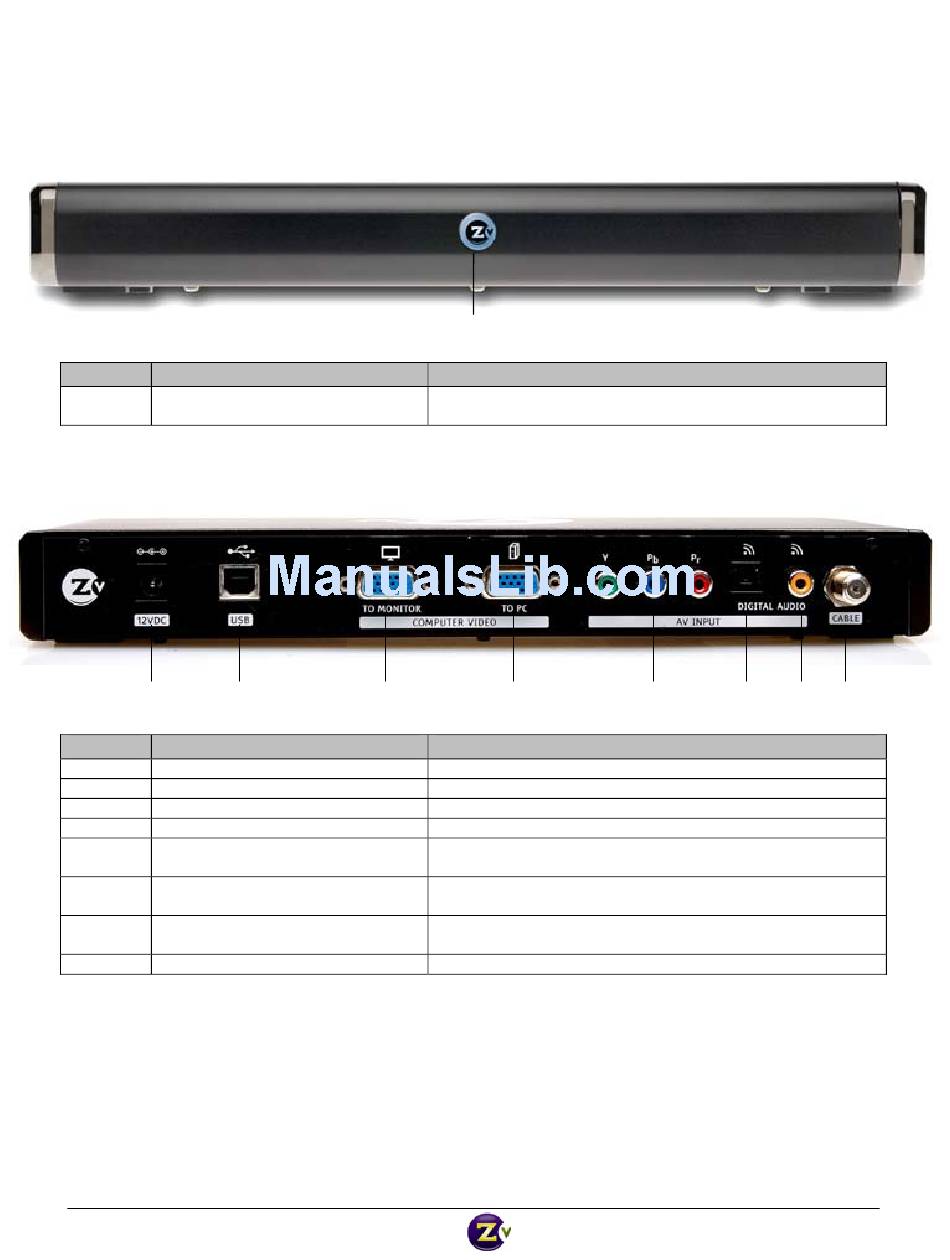

ZvBox 150 Front Panel
Item Description
LED /IR Zv Status / IR in‐out
ZvBox 150 Back Panel
1 2
Item Description
1 DC Power
2 USB Audio/Control
3 VGA Loop Through
4 VGA Input; HD‐15 connector
5 Component Video Input, RCA
connectors, 75 ohm
6 SPDIF digital audio input, Toslink
connector
7 SPDIF digital audio input, coaxial
connector
8 Coax Output
ZvBox www.zeevee.com
Zv150_GGG_v1.1
Zv150_GGG_v1_0
LED / IR
Function
Signals the activity of ZvBox 150
Acts as a window for receiving and emitting IR codes
3
Function
DC power input, 12 volt
Operates as USB audio device connection or control interface
Looped output from VGA (RGB) input
Accepts standard VGA input
RCA connectors, accepts component video input
Accepts digital audio input (PCM, or AC3)
Accepts digital audio input (PCM, or AC3)
Outputs encoded video as a well‐formed QAM channel
4 5 6 7 8
