- Page 1 ZvPro 800 C ONF IGURAT ION G U IDE S E R I E S ZvPro810 • ZvPro820...
- Page 2 I N S T R U C T I O N S P E R TA I N I N G T O A R I S K O F F I R E , E L E C T R I C S H O C K , O R I N J U R Y T O P E R S O N S Important Safety Instructions.
-
Page 3: Table Of Contents
Warranty ..... 11 Available Separately HDMI Cables Contact ZeeVee ....12 Zv Pro 800 C o nf ig ura ti on Gu id e Pag e 3... -
Page 4: Front And Back Panels

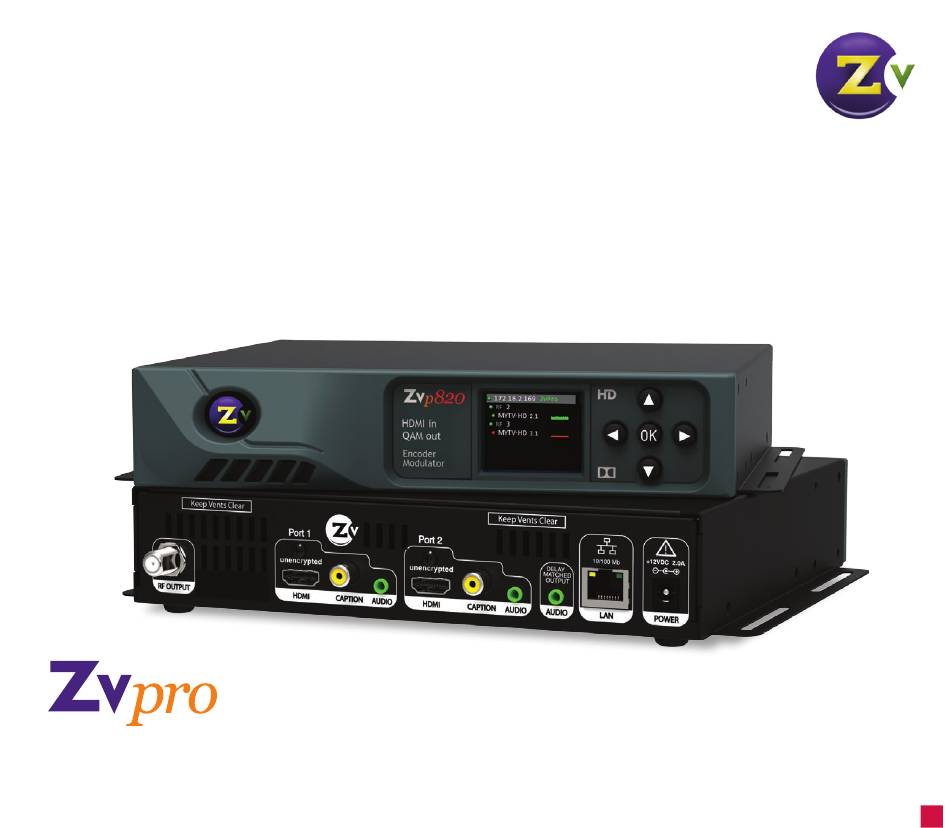

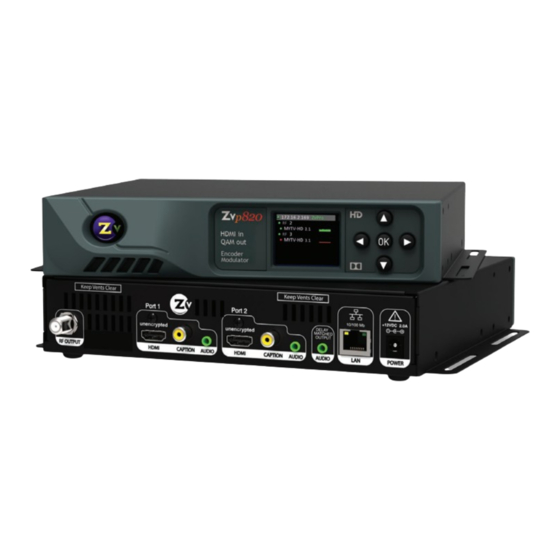

Front and Back Panels Model Number Name and description of unit Color Display Configuration and system status 5-Way Control Navigate options on front panel display Coax Output One channel or one channel pair, frequency-agile QAM RF CATV output ... -
Page 5: Basic Installation
DEFAULT CHANNEL LINEUP 2. Connect an HDMI video source to the HDMI input port the channel at this point, it is of the ZvPro 800, using an HDMI cable (which is available AV Input HDTV because most TVs will require Channel separately). -
Page 6: Front Panel Configuration
Red — No video detected You can set the RF broadcast channels or implement delay matched audio using the front panel controls. In many cases, your ZeeVee modulator will require only these configurations. To update firmware: Setting the RF broadcast channel, RF power or audio delay •... -
Page 7: Cable Tv Channels Vs Rf Frequency (Mhz) Map
Cable TV Channels vs RF Frequency (MHz) Map Map for configuring RF numbers and virtual channels RF Ch. Band (MHz) RF Ch. Band (MHz) RF Ch. Band (MHz) RF Ch. Band (MHz) RF Ch. Band (MHz) The Cable TV Channels vs RF 54-60 240-246 420-426... -
Page 8: Maestro Configuration
(virtual channel) independent of the RF number and label the channels. Connecting with Maestro 1. Connect your computer directly to the ZeeVee modulator using a standard Ethernet cable (not a cross-over cable) or connect the unit and your computer to any LAN that has a DHCP server. -
Page 9: Using Other Maestro Tabs
Using the Maestro tabs Delayed Audio Out found on the Channel Plan tab allows Click on the Maestro tabs to configure your unit as for matching audio to external needed. We provide brief information here. Please audio system (first port only). click on the Help button on each tab or refer to the Support section of our website for further detail on configuration options. -
Page 10: Troubleshooting
Use an audio delay device that allows you to add a delay to the audio stream before it reaches the sound system. Feed the audio to the ZeeVee unit and send it to the HDTV with the video. Then take the audio out from an HDTV or external ... -
Page 11: Warranty
LIMITATION OF LIABILITY and in lieu of all other warranties, guarantees, modifications, “hacks,” or utilizing service access In no event will ZeeVee be liable for any amount agreements and similar obligations of ZeeVee. or “back doors” will void these limited warranties. -
Page 12: Contact Zeevee
Contact ZeeVee Support Contact us for installation and technical support, repairs, and warranty service: +1 (877) 4ZEEVEE (1.877.493.3833) support@zeevee.com Representatives are available from 9:00 AM to 6:00 PM, Monday through Friday (Eastern Time). Sales North America: +1 (347) 851-7364 Phone sales@zeevee.com...
