Mount the Access Point Using the WS-MBI-DCMTR01
Bracket
T-bar can have a maximum protrusion of 0.625 in. (15.8 mm)
Maximum protrusion of the ceiling tile can be 0.625 in. (15.8 mm). 1 Remove the ceiling panels
around the drop ceiling T-bar rail
Procedure
1. Remove the ceiling panels around the drop ceiling T-bar rail.
2. Open the movable sliding part of the bracket to give the stationary and slider T-bar more space.

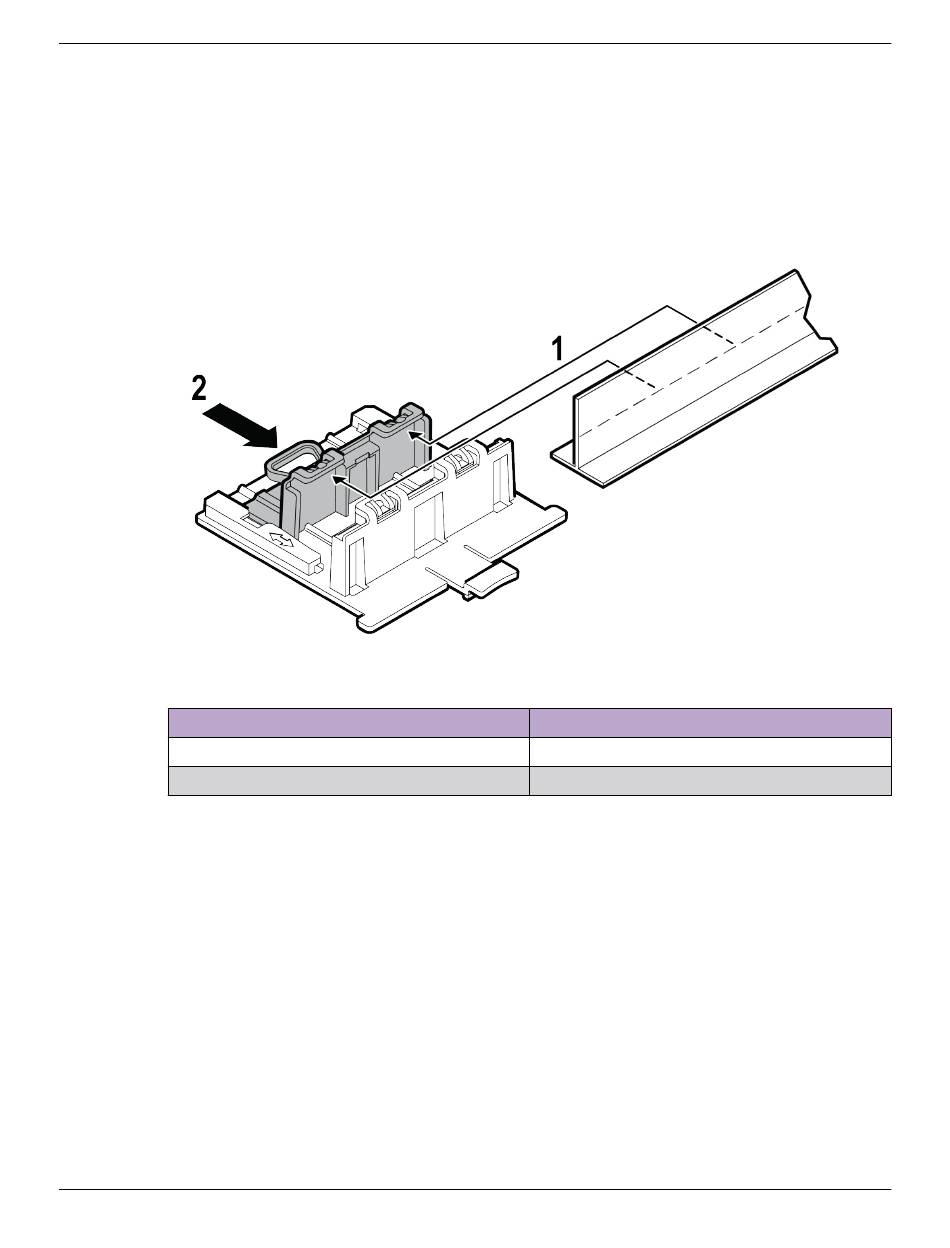

Figure 15: Install the WS-MBI-DCMTR01 bracket to a T-bar
Callout
1
2
3. Hook the stationary end of the T-bar bracket onto the T-bar.
4. Tilt the T-bar up slightly in such a way that you are holding the stationary and movable sides of the
bracket.
5. Squeeze the bracket parts together until you hear the T-bar locking tab click into place.
30
ExtremeWireless™ AP510i Access Point Installation Guide
Description
T-bar
Movable sliding part of the DCMTR01 bracket
Installation Process
