Installation Process
Procedure
1. Use the mounting bracket as a template and mark the hole centers on the wall.

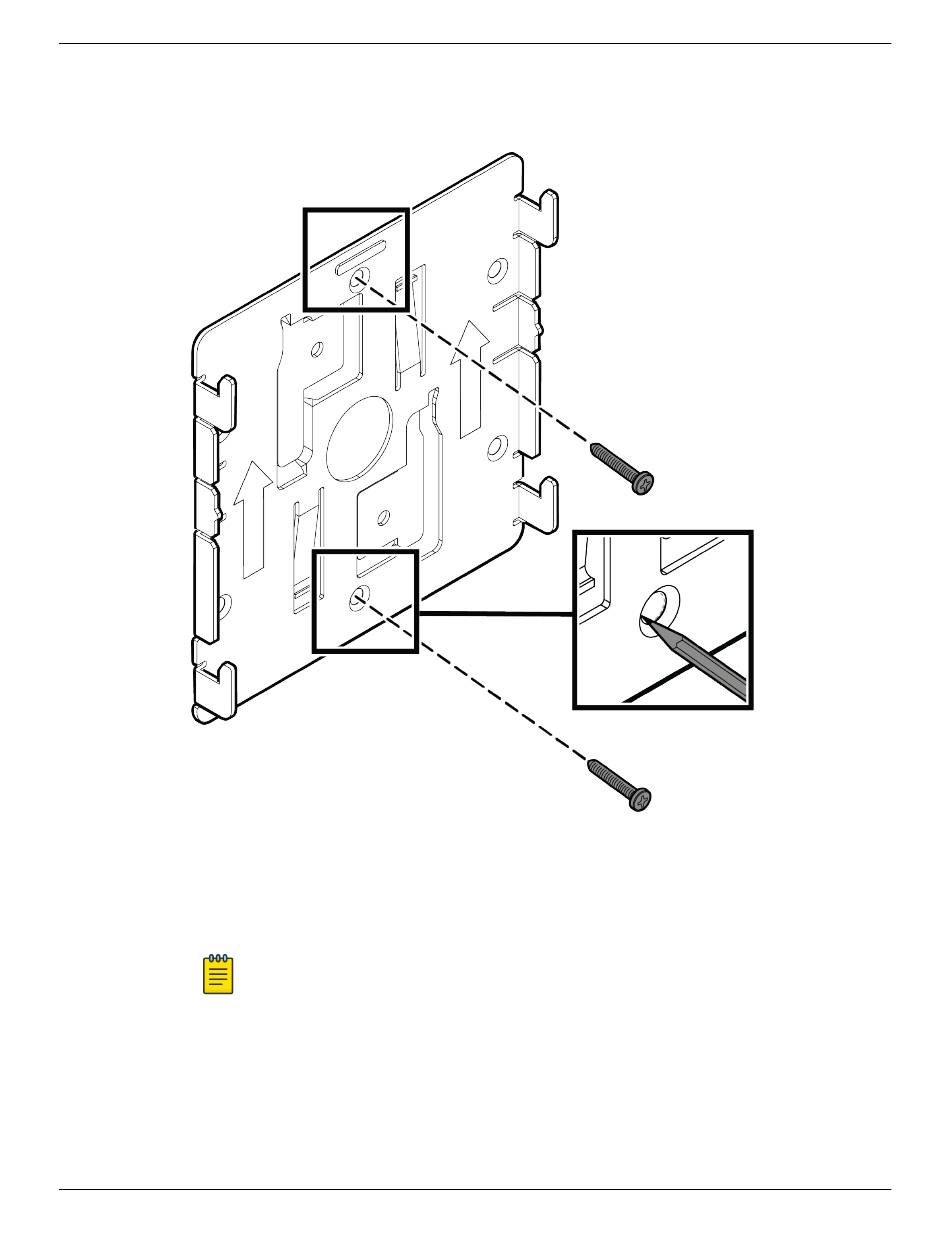

Figure 5: Main mounting bracket
2. Insert the screws into the holes of the mounting bracket and use the screw-in anchors if needed.
3. Insert the Ethernet cable's RJ45 connector into the LAN1/GE1 port.
4. Insert the access point onto the bracket's four feet and slide it down to lock it in place.
Note
The feet of the bracket must be pointing up.
ExtremeWireless™ AP510i Access Point Installation Guide
Mount the Access Point to a Wall using the Main
Mounting Bracket
17
