Installation Process
Procedure
1. Attach the flat metal indoor bracket to the main bracket. Keep the bracket to the center of the main
bracket, push and rotate it.

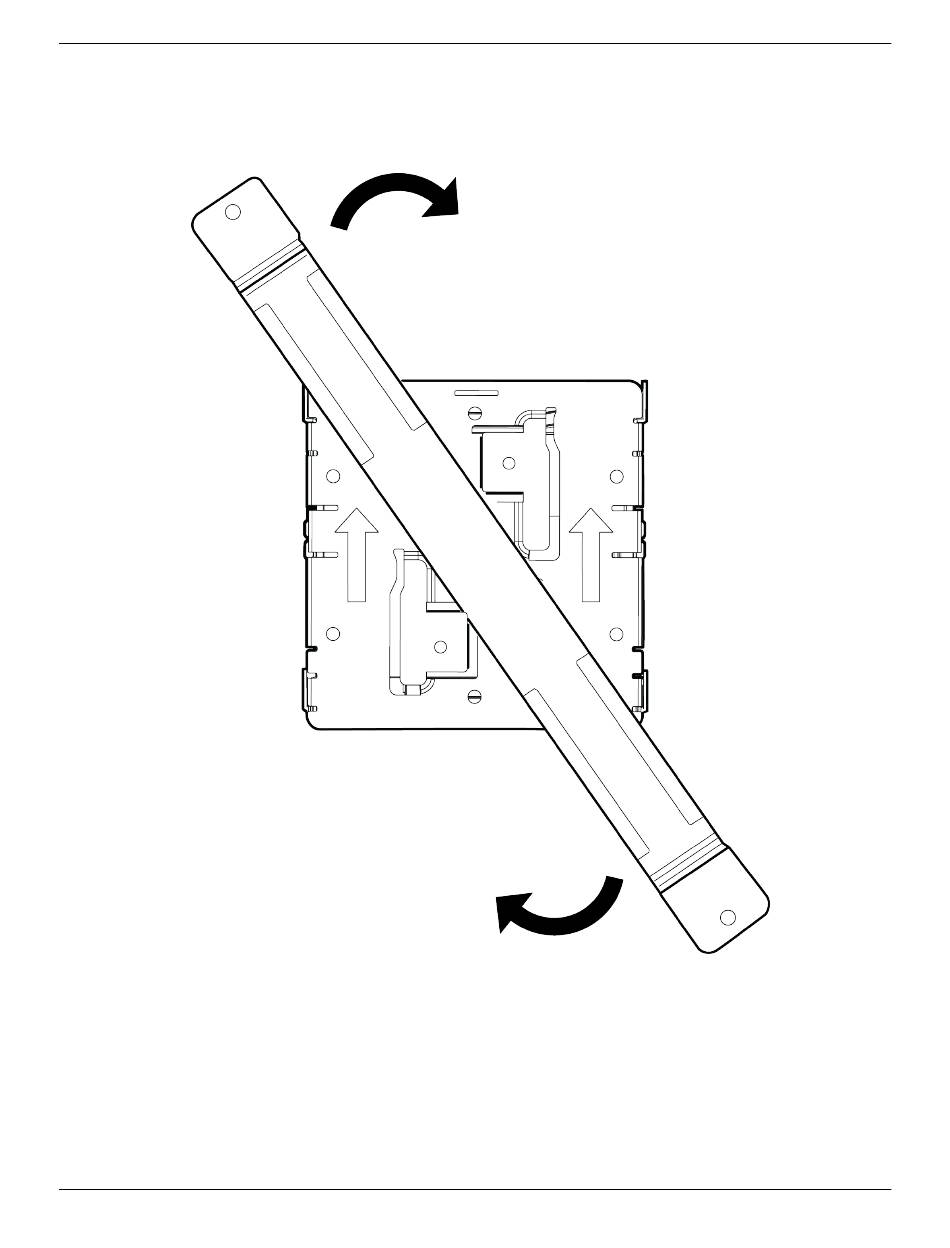

Figure 10: Attach the optional Flat Metal Indoor Adaptor to the main mounting
bracket
2. Hold the AP to the surface to which it needs to be attached and use the optional bracket's end holes
as a template to mark the attachment holes.
3. Drill two holes on the wall where you want to mount the AP.
4. Connect the LAN or Ethernet cable to the back of the AP.
Mount the Access Point onto a Wall Using the Main
Bracket and the Flat Metal Easy-Attach Adapter
ExtremeWireless™ AP510i Access Point Installation Guide
23
