Part 2: ZYNQ Chip

The AX7450 FPGA development board uses Xilinx's Zynq7000 series chip,

model XC7Z100-2FFG900. The chip's PS system integrates two ARM

CortexTM-A9 processors, AMBA® interconnects, internal memory, external

memory interfaces and peripherals. These peripherals mainly include USB bus

interface, Ethernet interface, SD/SDIO interface, I2C bus interface, CAN bus

interface, UART interface, GPIO etc. The PS can operate independently and

start up at power up or reset. Figure 2-1 detailed the Overall Block Diagram of

the ZYNQ7000 Chip.

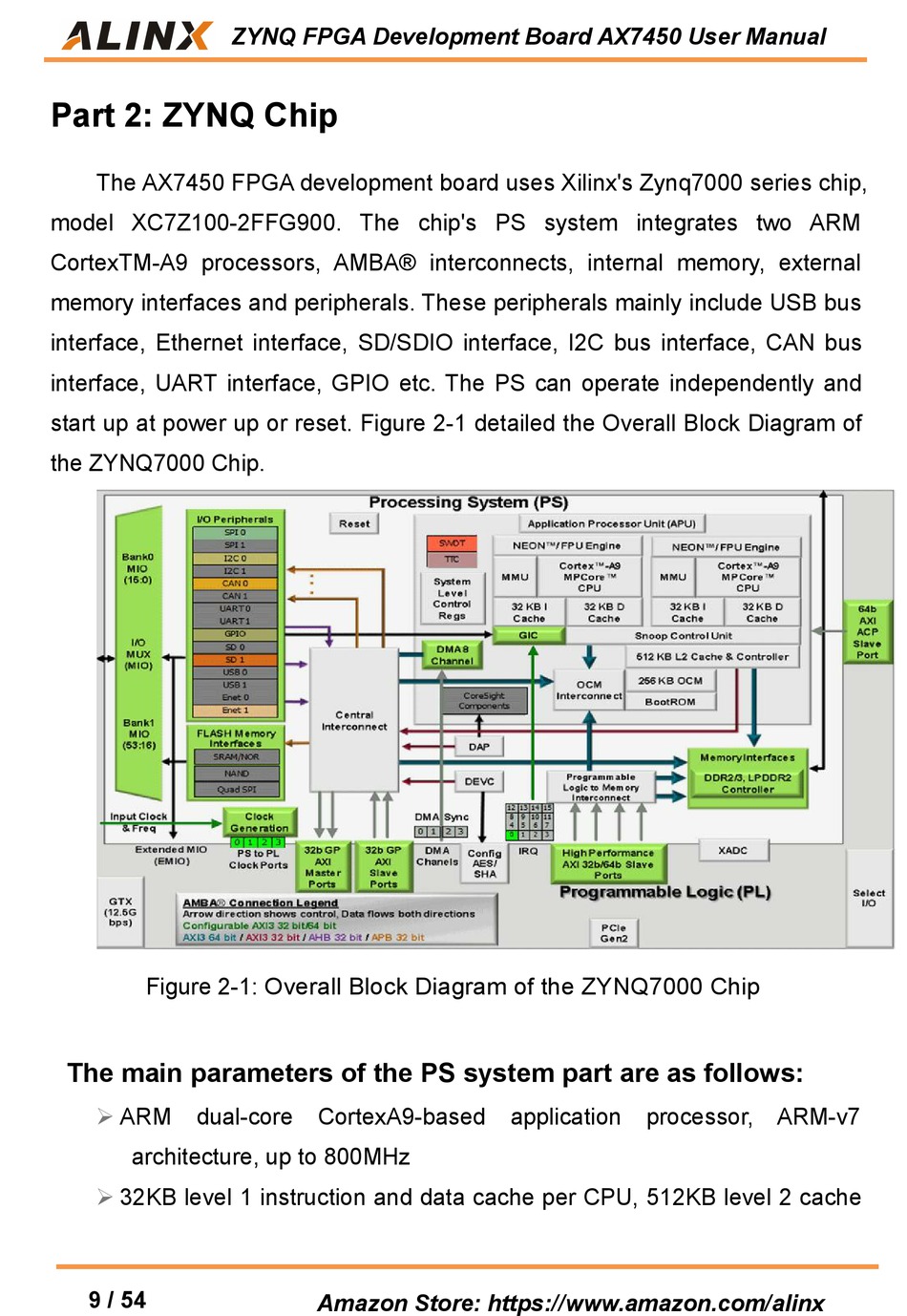

Figure 2-1: Overall Block Diagram of the ZYNQ7000 Chip

The main parameters of the PS system part are as follows:

ARM

dual-core



architecture, up to 800MHz

32KB level 1 instruction and data cache per CPU, 512KB level 2 cache



9 / 54

ZYNQ FPGA Development Board AX7450 User Manual

CortexA9-based

Amazon Store: https://www.amazon.com/alinx

application

processor, ARM-v7
