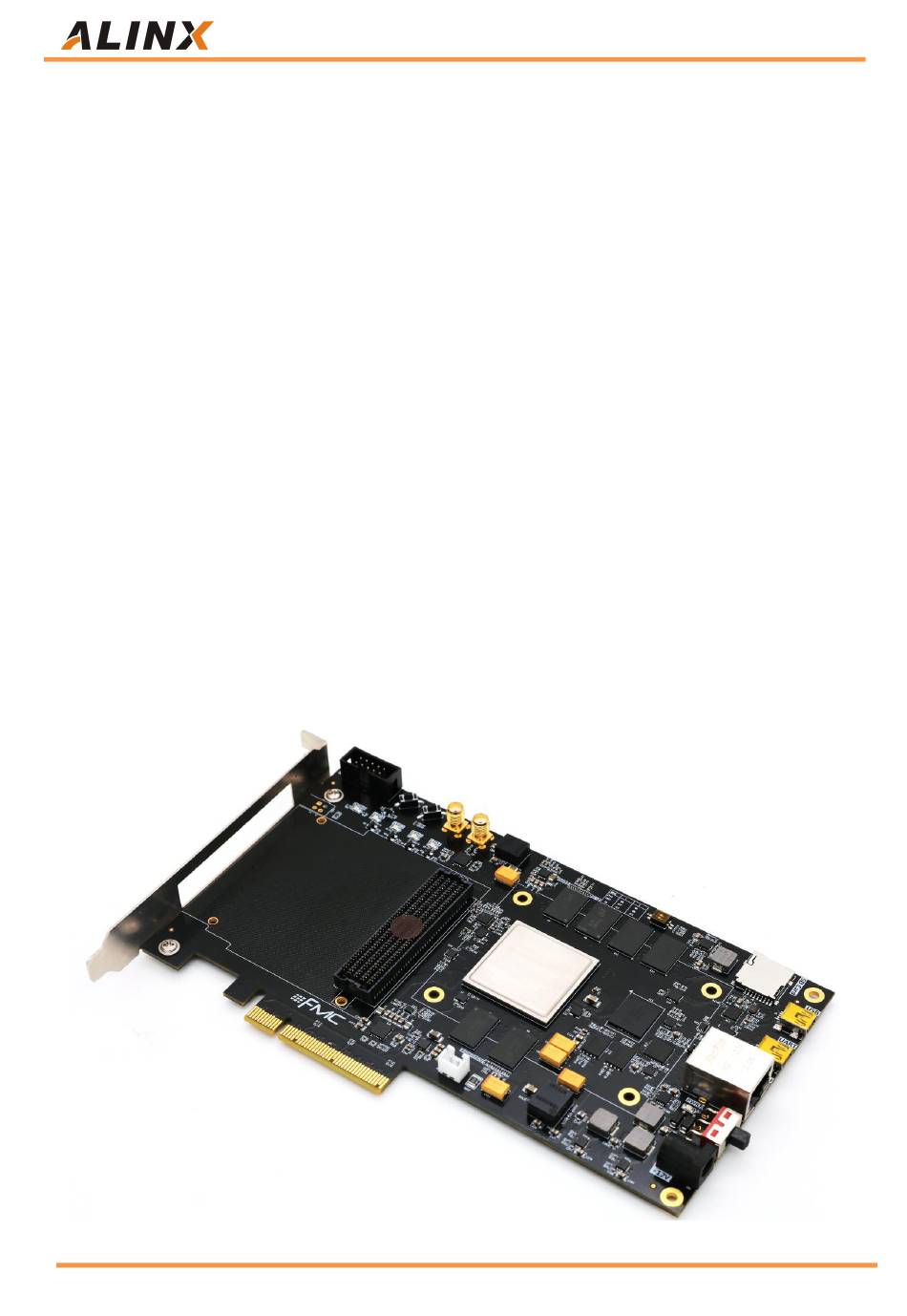

ZYNQ FPGA Development Board AX7450 User Manual
The ZYNQ7000 FPGA development platform uses XILINX's Zynq7000
SOC chip XC7Z100 solution, which uses ARM+FPGA SOC technology to
integrate dual-core ARM Cortex-A9 and FPGA programmable logic on a single
chip. ZYNQ has two 512MB high-speed DDR3 SDRAM chips on the PS and
four 512MB high-speed DDR3 SDRAM chips on the PL sides. In addition, there
are one 8GB eMMC memory chip and two 256Mb QSPI FLASH chip on the PS
side.
In terms of peripheral circuits, we have extended a wealth of interfaces for
users, such as a PCIex8 slot, Gigabit Ethernet interfaces, 1 USB2.0 OTG
interface, 1 UART serial interface, 1 SD card interface, 1 FMC HPC expansion
interface, and 2 SMA interfaces etc. It meets users' requirements for
high-speed data exchange, data storage, video transmission processing and
industrial control. It is a "professional" ZYNQ development platform. For
high-speed data transmission and exchange, pre-verification and
post-application of data processing is possible. This product is very suitable for
students, engineers and other groups engaged in ZYNQ development.
