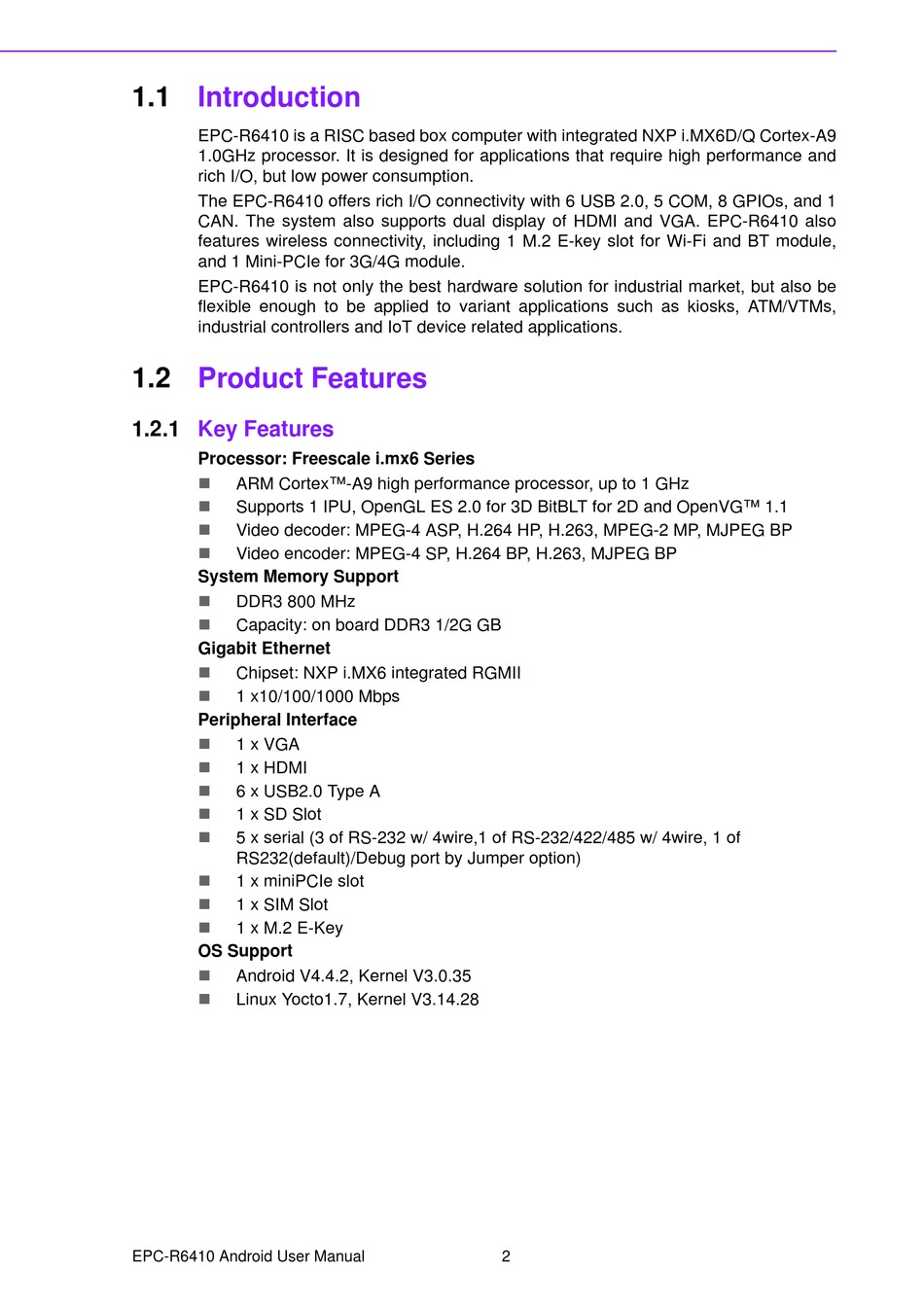

1.1

Introduction

EPC-R6410 is a RISC based box computer with integrated NXP i.MX6D/Q Cortex-A9
1.0GHz processor. It is designed for applications that require high performance and
rich I/O, but low power consumption.
The EPC-R6410 offers rich I/O connectivity with 6 USB 2.0, 5 COM, 8 GPIOs, and 1
CAN. The system also supports dual display of HDMI and VGA. EPC-R6410 also
features wireless connectivity, including 1 M.2 E-key slot for Wi-Fi and BT module,
and 1 Mini-PCIe for 3G/4G module.
EPC-R6410 is not only the best hardware solution for industrial market, but also be
flexible enough to be applied to variant applications such as kiosks, ATM/VTMs,
industrial controllers and IoT device related applications.
1.2

Product Features

1.2.1

Key Features

Processor: Freescale i.mx6 Series

ARM Cortex™-A9 high performance processor, up to 1 GHz

Supports 1 IPU, OpenGL ES 2.0 for 3D BitBLT for 2D and OpenVG™ 1.1

Video decoder: MPEG-4 ASP, H.264 HP, H.263, MPEG-2 MP, MJPEG BP

Video encoder: MPEG-4 SP, H.264 BP, H.263, MJPEG BP
System Memory Support

DDR3 800 MHz

Capacity: on board DDR3 1/2G GB
Gigabit Ethernet

Chipset: NXP i.MX6 integrated RGMII

1 x10/100/1000 Mbps
Peripheral Interface

1 x VGA

1 x HDMI

6 x USB2.0 Type A

1 x SD Slot

5 x serial (3 of RS-232 w/ 4wire,1 of RS-232/422/485 w/ 4wire, 1 of
RS232(default)/Debug port by Jumper option)

1 x miniPCIe slot

1 x SIM Slot

1 x M.2 E-Key
OS Support

Android V4.4.2, Kernel V3.0.35

Linux Yocto1.7, Kernel V3.14.28
