2.3.12
LAN

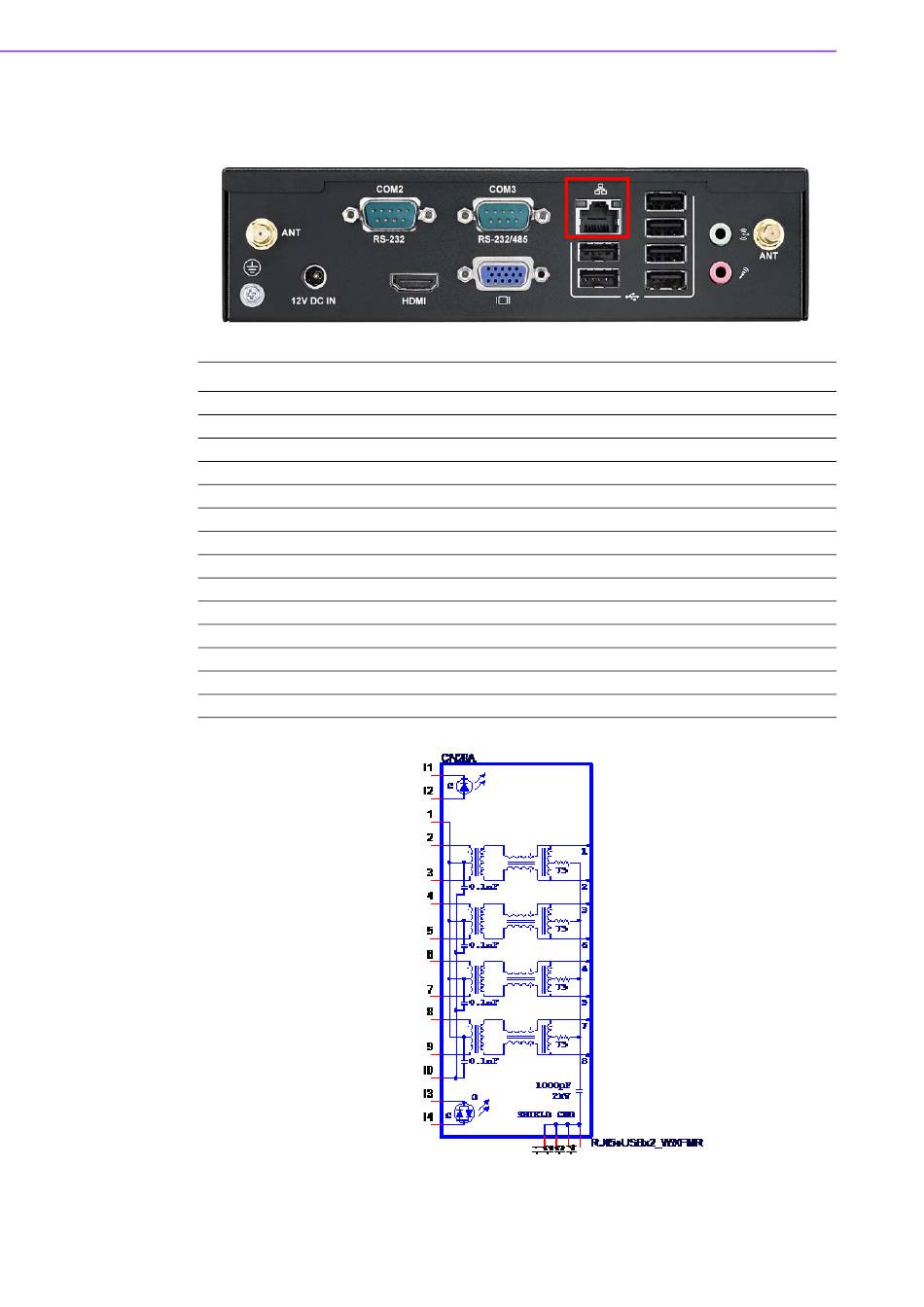

EPC-R6410 supports Ethernet; pin definitions below
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EPC-R6410 Android User Manual
Description
NC
GBE_MDI0_P
GBE_MDI0_N
GBE_MDI1_P
GBE_MDI1_N
GBE_MDI2_P
GBE_MDI2_N
GBE_MDI3_P
GBE_MDI3_N
GND
LAN1_ACT
+3.3V
LAN1_1000_LINK
LAN1_100_LINK
Ethernet Connector
16
