2.3.9.1

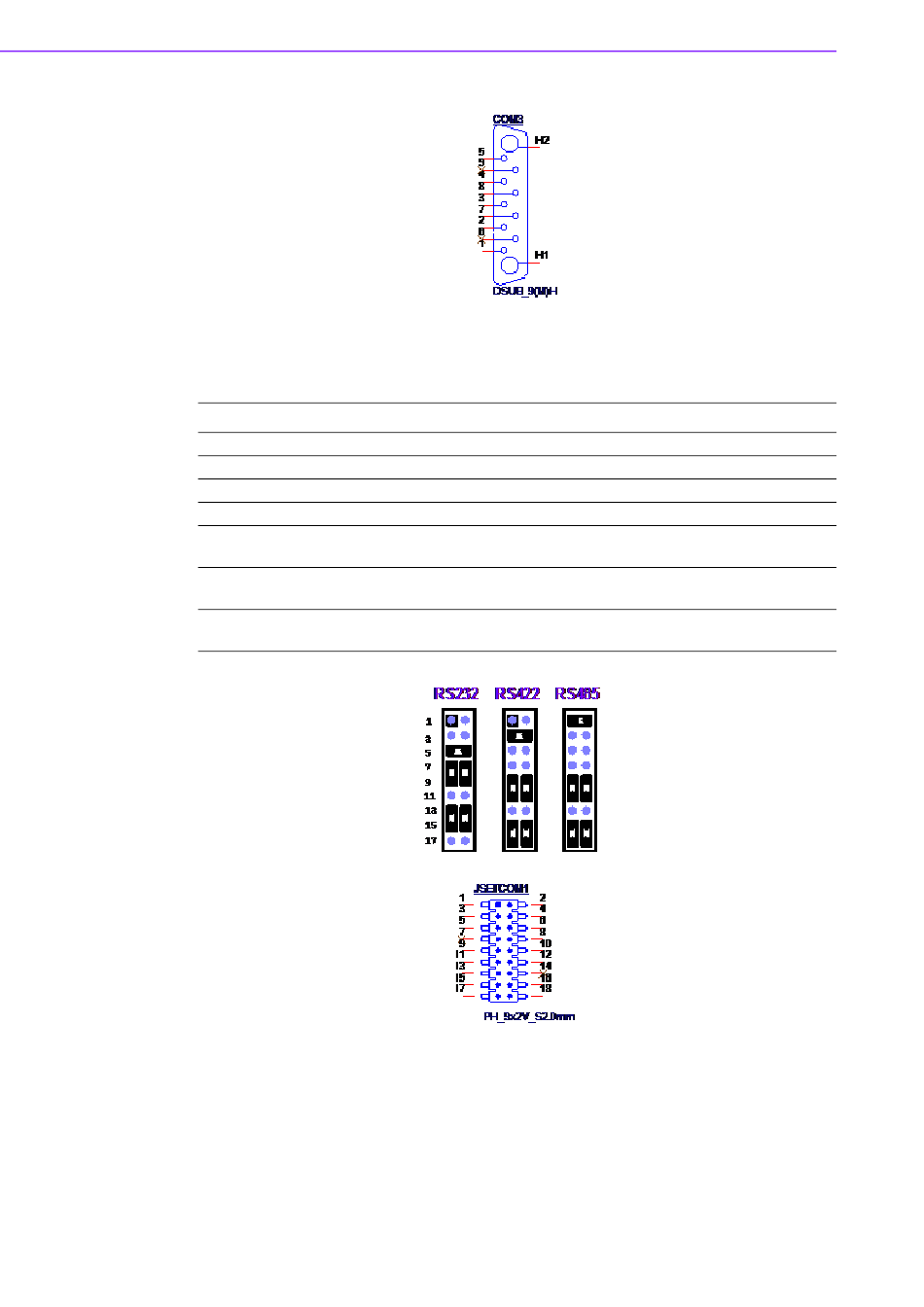

Jumper setting: UART3 RS232, RS422, RS485 signal select
JSETCCOM1
Part number
Footprint
Description
Setting
(5-6 7-9 8-10
13-15 14-16)
(3-4 9-11 10-12
15-17 16-18)
(1-2 9-11 10-12
15-17 16-18)
EPC-R6410 Android User Manual
COM port pin header
UART3 RS232, RS422, RS485 signal select
1653009260
HD_9x2P_79
PIN HEADER 9x2P 2.0mm 180D(M) SMD 21N22050
Function
RS232 mode (CN26 must be set RS232 at the same time) (default)
RS422 mode
RS485 mode (CN26 must be set RS485 at the same time)
12
