Mechanical Specifications; Electrical Specifications; Environmental Specifications - Advantech EPC-R6410 User Manual

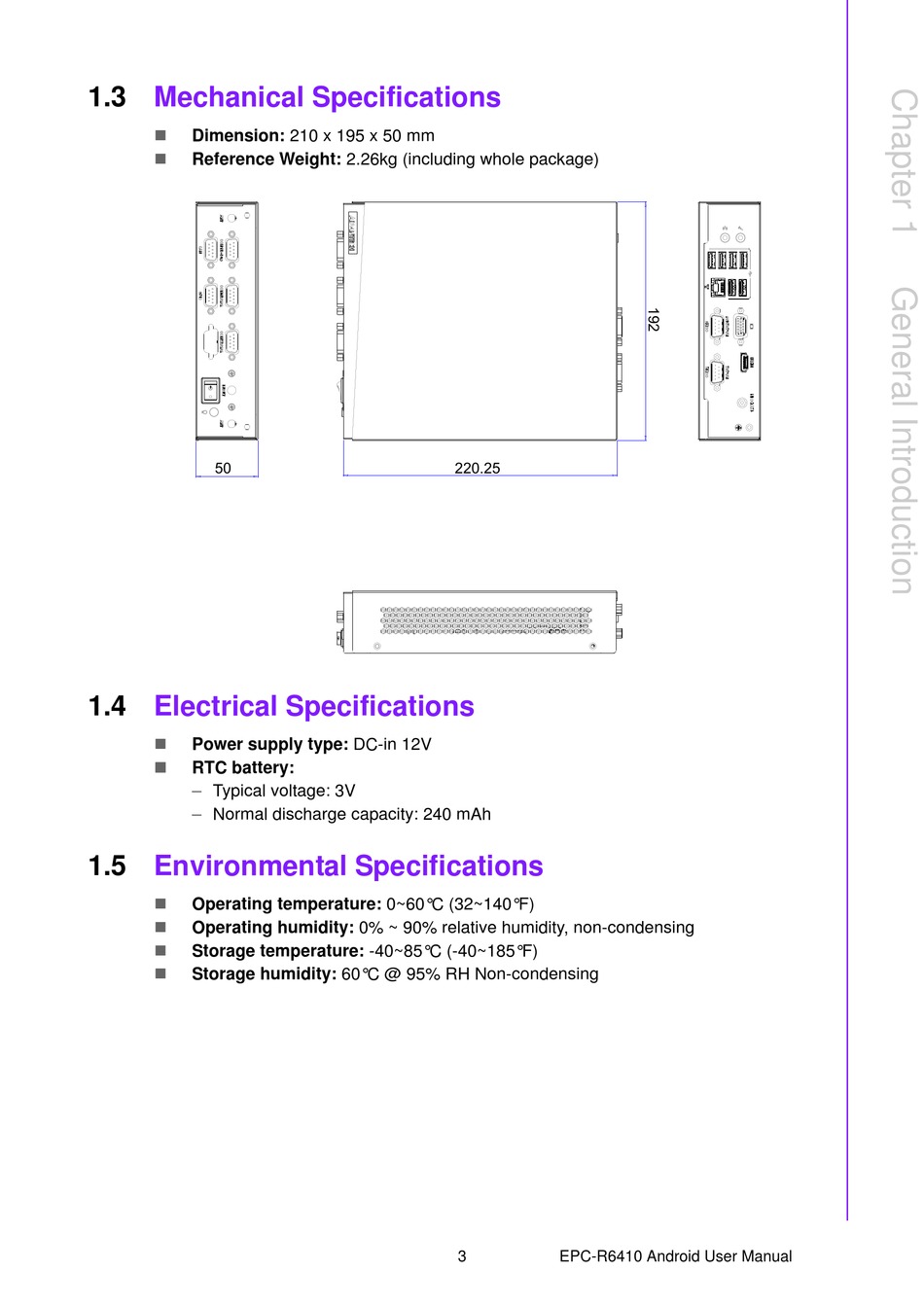

1.3

Mechanical Specifications


Dimension: 210 x 195 x 50 mm

Reference Weight: 2.26kg (including whole package)
50
1.4

Electrical Specifications


Power supply type: DC-in 12V

RTC battery:
– Typical voltage: 3V
– Normal discharge capacity: 240 mAh
1.5

Environmental Specifications


Operating temperature: 0~60°C (32~140°F)

Operating humidity: 0% ~ 90% relative humidity, non-condensing

Storage temperature: -40~85°C (-40~185°F)

Storage humidity: 60°C @ 95% RH Non-condensing
220.25
3 EPC-R6410 Android User Manual
