DETAILED FEATURE DESCRIPTION

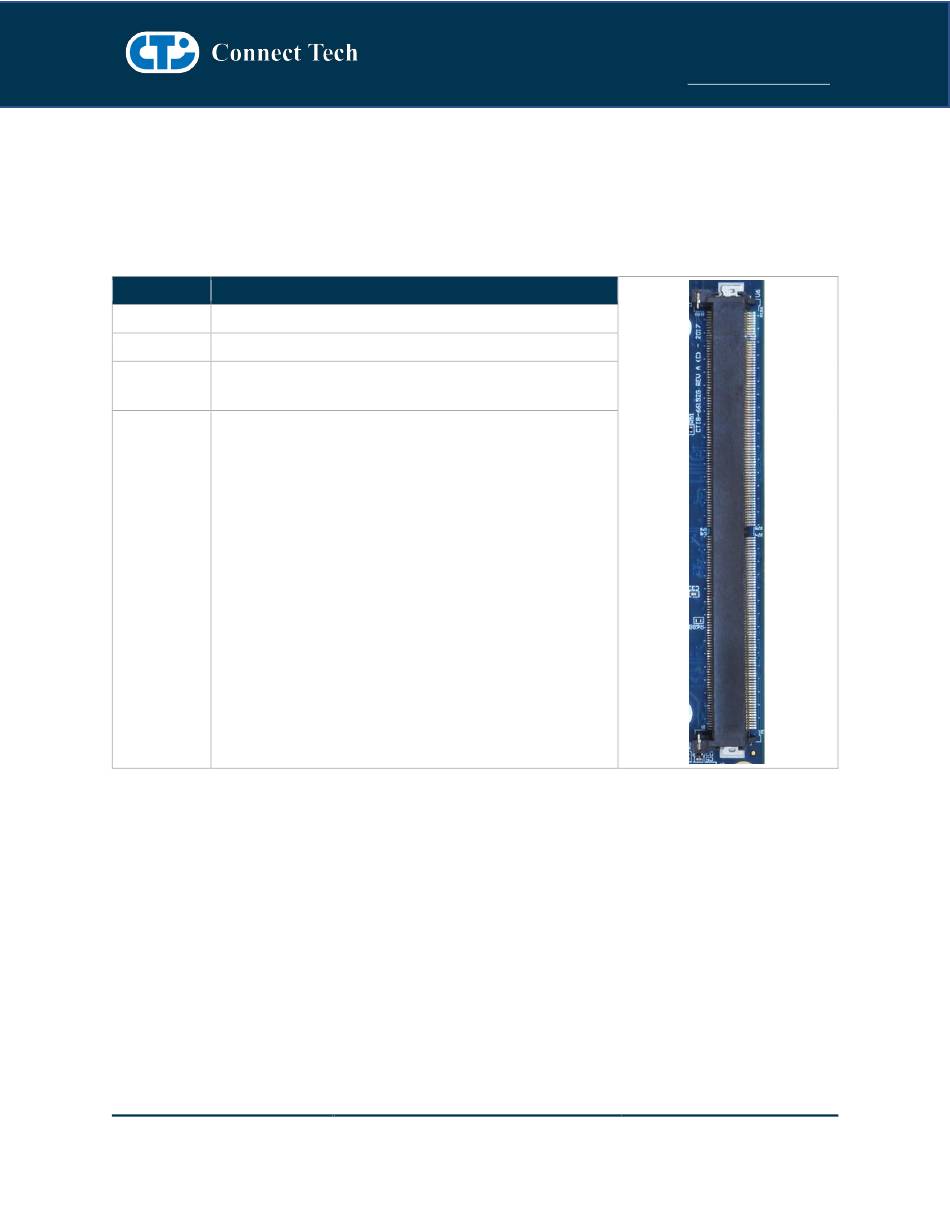

SMARC 2.0 Connector

The processor and chipset are implemented on the SMARC 2.0 Module, which connects to the SMARC
2.0 Carrier via an MXM 3.0 fine pitch connector.
Function
Location U6
Type JAE Electronics MXM 3.0 Connector
Part Number PN: MM70-314-310B1-2-R300
Manufacturer: JAE Electronics
Pinout Refer to SMARC Hardware Specification V2.0
Document: CTIM-00154
Revision: 0.04
Description
Page 10 of 22
SMARC 2.0 Carrier
