System Control Connector - Connect Tech SMARC 2.0 User Manual

System Control Connector

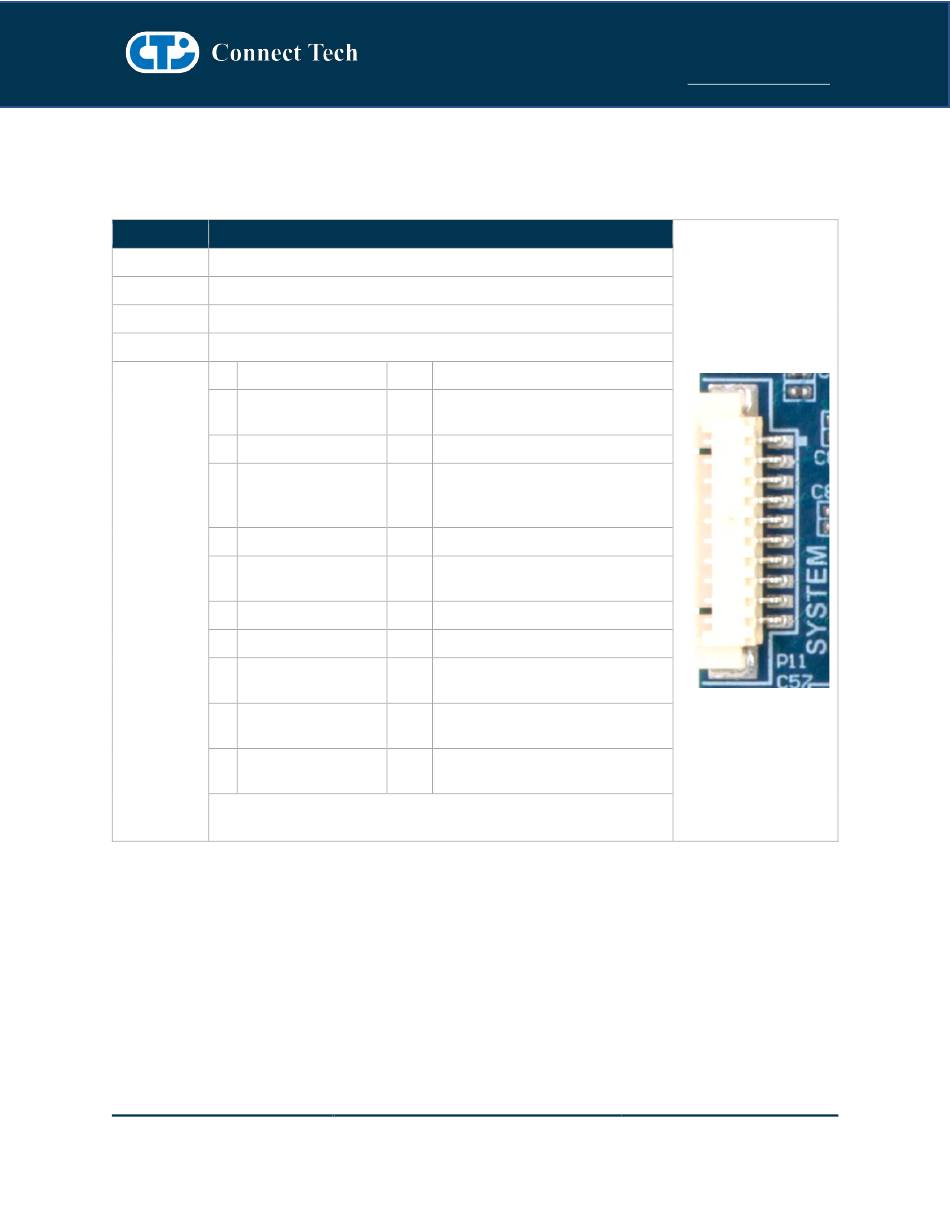

The SMARC 2.0 Carrier implements a 10 pin header that connects to several system control signals from
the SMARC module.
Function
Location P11
Type Molex Right-Angle PicoBlade
Part Number 0532611071
Mating CBG248 (Flying leads)
Pinout Pin Description
1 POWER_BTN#
2 GND
3 RESET_IN#
4 GND
5 FORCE_RECOV#
6 GND
7 GND
8 CARRIER_STBY#
9 CARRIER_PWR_ON OUT
10 RESET_OUT#
*
All signals use +1.8V CMOS
1
Functionality and support depends on the module vendor
Document: CTIM-00154
Revision: 0.04
Description
DIR
IN Power-button input from Carrier
Board. Active low.
- -
IN Reset input from Carrier Board.
Drive low to force a Module reset,
float the line otherwise
Force recovery input from Carrier
IN
1
Board. Active LOW.
- -
- -
OUT Module will drive LOW when in
standby
Output from module to enable the
carrier power supplies.
OUT Reset output from module to carrier.
Active LOW.
